Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO，CB |
| Model Number: | P2 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case,flight case ,it is up to you |
| Delivery Time: | 7-13 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5900 sqm month |
| Application:: | Video | Color:: | Full Color, Full Color |
|---|---|---|---|
| Panel Size:: | 256x128mm | Pixel Pitch:: | 2mm |
| Density:: | 250000dots/sqm | Resolution:: | 128x64dots |
| Driving Method:: | 1/32scan | Brightness:: | 900nits~1500nits Adjustable |
| Refresh Rate:: | 2880hz~3840hz | Product Name:: | Indoor Soft Flexible Led Display |
| Payment Term:: | T/T | ||
| High Light: | P1.875 Flexible Led Video Curtain,900nits Flexible Led Video Curtain,280W/M2 Indoor Flexible Led Board |
||
Soft/flexible outdoor full color led display module soft led display panel
1. led screen panel pixel pitch, if you dont know how to choose, contact us
2. led screen size:length ___m; width___m,or cabinet quantity;
3. use for outdoor or outdoor;
4. use for fixed installation or rental?
5. soft flexible module led screen need structure draft;
6. intallation place pictures will be better;
7. your skype or whatsapp or others except email,
sometimes our customer can't received ur email.
♦ Product specification
| indoor SMD P2 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 2 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 250000/m² | |||||||||||||
| Module resolution | 128x64 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | ≥1m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/13 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Features:

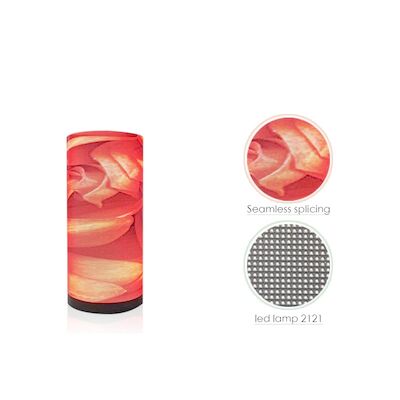

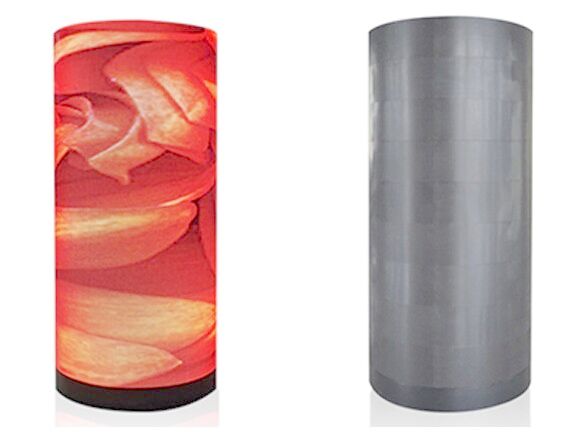

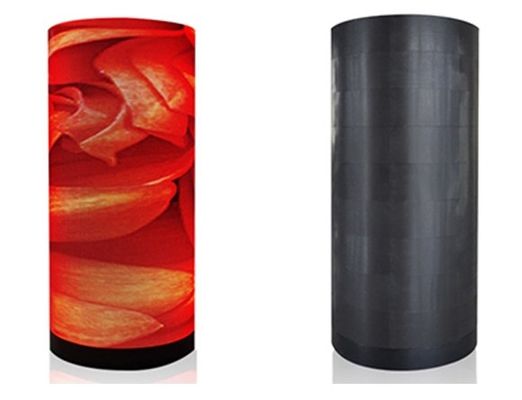

soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles.
With repeating curving,it won't break LEDs as well design of mask covers.
1.Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2.Assembling screen with soft led modules directly,saving time and effort,easy operation.

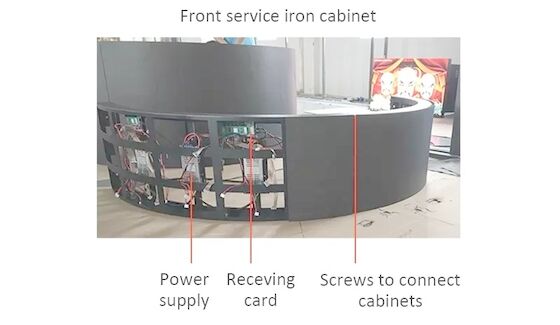

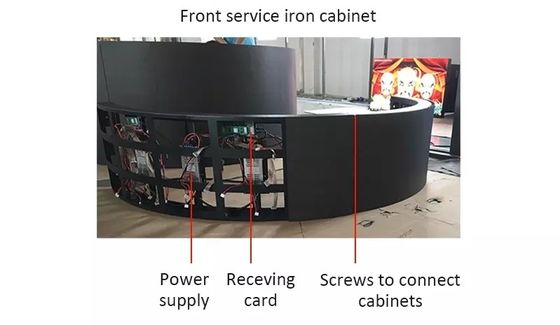

3.Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.

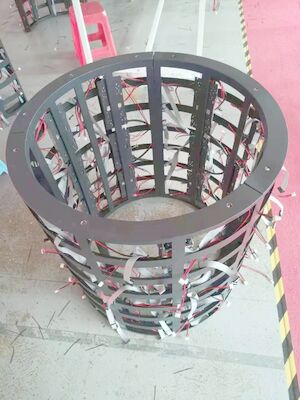

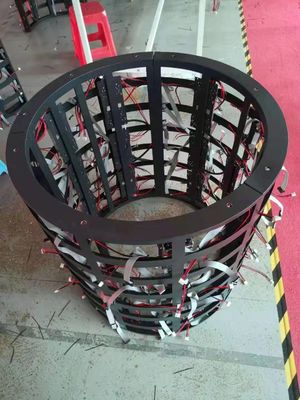

4.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5.Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.

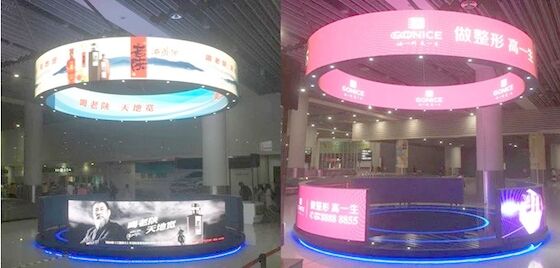

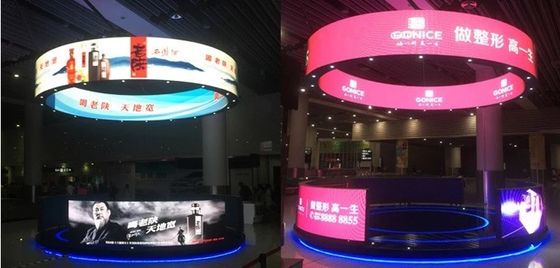

6.Widely applied in shaped stage background/exhibition/shopping mall etc.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Our company
Q1: Are you the manufacturer or trading company? and where is your factory?
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
