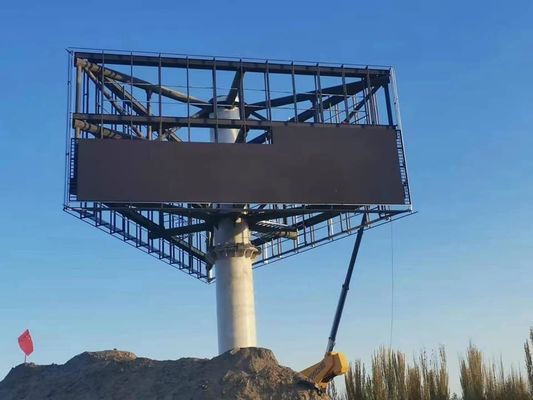

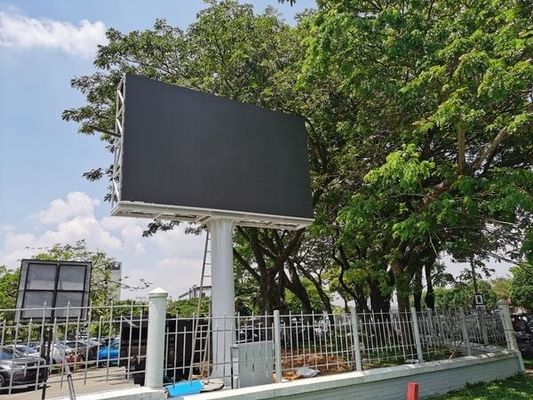

SCX LED P10 LED Panel SMD Full Color P10 LED Display Outdoor Pole Fixed P10 LED Video Display Billboard
Outdoor led display module Special Features
Special Features:
1, Display: shows the small spacing, viewing distance closer; the country star gold and copper support high quality surface mount lamp, horizontal and vertical angle of 140 degrees, light mixing uniformity, color matching degree is high, good consistency, clearer display true, fully meet the needs of outdoor display;
2, Energy consumption: a positive response to the national policy of energy saving by 4.5, switching power supply, power consumption can save 10%;
3, Structure: the bottom shell adopts the reinforcing rib design of quasi construction engineering mechanics, enhance the bearing tensile ability of products and improve the overall smoothness of the mask; the calculation precision with stripe design, greatly reducing the environmental problems due to light reflection on the interference caused by the lamp light, ensure contrast products in a variety of ambient light the degree is the best, the whole screen is more black ink, better contrast, more realistic image color reduction.
4, Circuit: high performance "wig" program for PCB layout design, can effectively control the voltage peak overshoot, the maximum extension of the tube, chips and other components of the life; with power supply, general signal interface, not affected by any geographical and environment control system and other factors, for to be able to easily display various types of connection and installation and operation.
5, Protection: the positive use of special conductive silicone encapsulant, on the back of three spraying paint protection, double waterproof protection, making the product more weatherability, heat faster; the drainage hole of the unique design, reduce the water causes damage to the module due to defects of steel structure, improve the module of self-protection, further to protect the life of display screen.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the design firstly based on our sample.
Module Parameter
| Pixel pitch |
10mm |
| Pixel configuration |
1R1G1B |
| LED type |
3-in-1 SMD3535 |
| Module size |
320x160mm |
| LED lamp |
KingLight or Nationstar |
| Module resolution |
32x16dots |
Cabinet Parameter
| Cabinet size |
960x960mm |
| Cabinet material |
Ironed steel cabinet |
| Cabinet weight |
32.5kg |
| Ingress protection |
Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density |
10000 dots/m² |
| Brightness |
≥5500 cd/m² |
| Viewing angle |
H≥120° V≥120° |
| Min.viewing distance |
10m |
| Max.power consumption |
750W/m² |
| Avg.power consumption |
290 W/m² |
| Working voltage |
110~220VAC±15% |
| Interface |
HUB75 |
| Colors |
16.7millon colors |
| Gray level |
65536 |
| Refresh rate |
≥1920Hz |
| MTBF |
≥100,000 hours |
| Lifespan |
≥50000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc. |
| Operating temperature |
-10℃ ~ +60℃ |
| Storage temperature |
-20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) |
AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature |
Adjustable by software |
| Brightness level |
256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
