P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen

P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen

P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen
P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen

Product Details:

Place of Origin: CHINA
Brand Name: SXCK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10

Payment & Shipping Terms:

Minimum Order Quantity: 10 sqm
Price: negotation
Packaging Details: plywood case, flight case, you choose what you like.
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm per month
Contact Now
Detailed Product Description
Application:: Outdoor, Outdoor Advertising Color: Black, Full Color
Panel Size:: 960mm*960mm Pixel Pitch:: P10, 10mm
Model Number:: Stadium Display Brightness:: 6500cd/sqm
Driving Method:: 1/2 Scaning Module Size:: 320*160mm
Function: Display Video Pixel Density:: 10000dots/sqm
Waterproof: IP 65
High Light:

6500cd/Sqm Stadium Perimeter Led Screen

,

SMD3535 Stadium Perimeter Led Screen

,

P8 Football Stadium Led Display

waterproof ip65 960*960mm rgb advertising P10 led display board for sports stadium

Fetures:

1, P10 1R1G1B led display, with 10000dots/sqm, which guarantee vivid and clear image effection.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3, Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.
4, Backside maintenance. Exterior exposed module screws, easy dismantling.
5, Waterproof connectors, safe and steady.

More Specs available upon request Outdoor ,Welcome to contact us!

Parameter specification

Module:

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD3535
Module size 320x160mm
Module resolution 32*16dots

Cabinet Parameter:

Cabinet size 960x960mm
Cabinet material ironed steel cabinet
Cabinet weight 27.5kg
Cabinet resolution 96*96dots
Ingress protection Front/Rear IP65/IP54



Whole Screen Parameter
Pixel density 10000dots/
Brightness ≥5000cd/
Viewing angle H≥120° V≥60°
Min.viewing distance 10m
Max.power consumption 850W/
Avg.power consumption 280W/
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Refresh rate ≥960Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation



Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way

Computer, video-synchronous, real-time, off-line, wireless, internet etc.

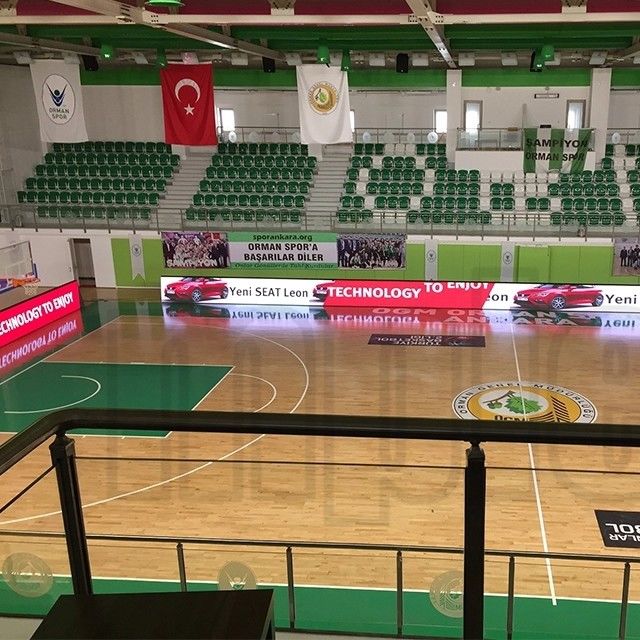

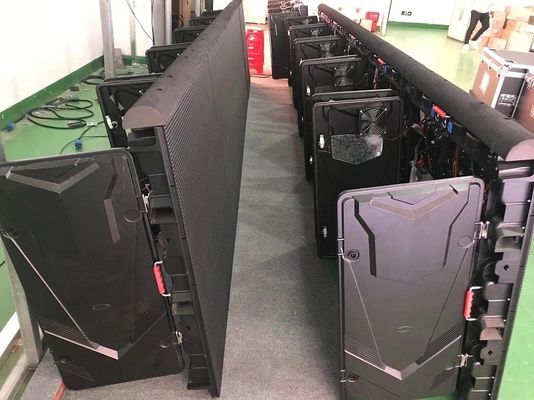

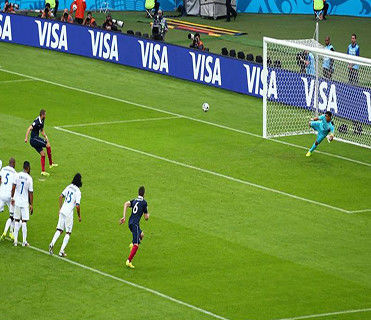

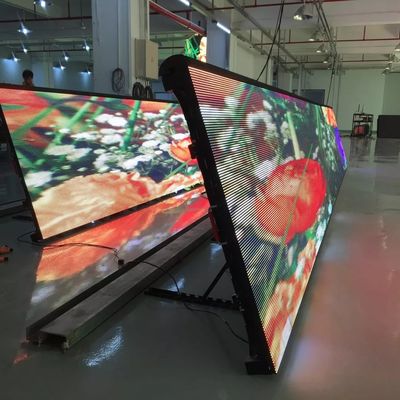

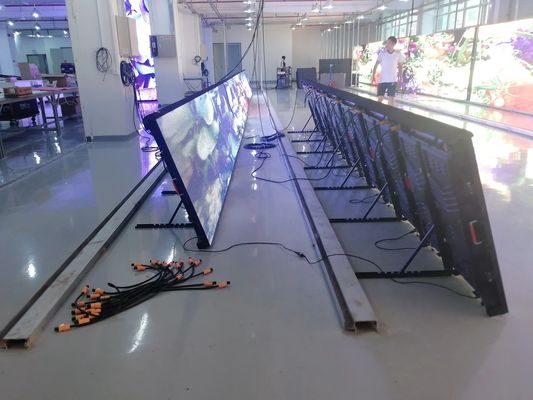

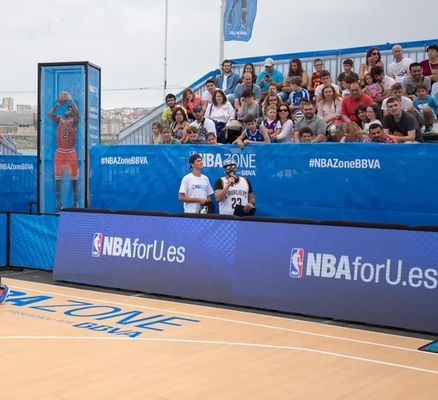

Our  case



P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen 0P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen 1P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen 2P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen 3





Certificate
P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen 4


Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen 5




FAQ

Q1.Are you a manufacturer or a trading company?

A: We are manufacturers

Q2. What kind of plug do you have?

A:According to which country you located,we will provide suitable plugs.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1sqm .

Q4.What is your production time?

A: The production time depend on the quantity.

Q5. How to proceed an order for led screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: yes, we offer 2years warranty



Our service



Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.


In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
