Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotation |
| Packaging Details: | plywood case, flight case, you choose what you like. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm per month |
| Application:: | Outdoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 320x160mm | Pixel Pitch:: | 10mm |
| Model Number:: | Scxk-10-LED Display | Certificate:: | CE(EMC) FCC ROHS IP65 CCC Certifications |
| Life Span:: | 100000hours | LED Chip:: | Epistar |
| Brightness:: | 5500cd/sqm | Scan Mode:: | 1/4S |
| Waterproof:: | IP 65 | ||
| High Light: | 5500nits Perimeter LED Display,500W/Sqm Perimeter LED Display,960x960mm Stadium LED Advertising Screen |
||
P8/P10/P12/p16 outdoor led screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.

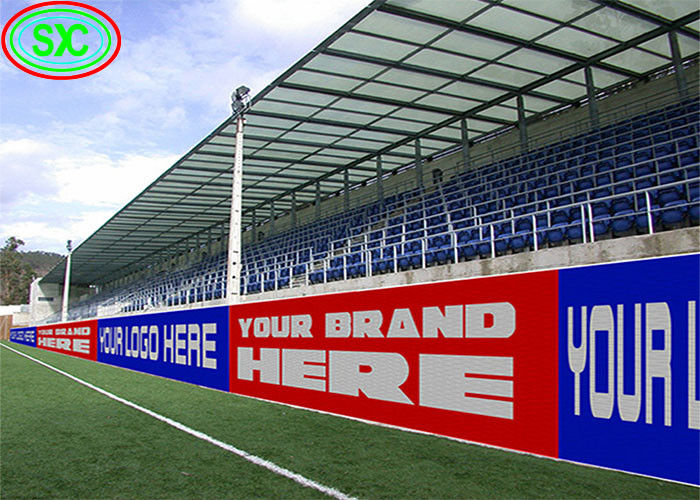

It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Main advantages:
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof capability;
9. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.
Specification:
| model | P10 | |
| Pixel unit module | Pixel pitch(mm) | 10 |
| Pixel density (dots/sqm) | 10000 | |
| LED type | SMD | |
| Module size(mm) | W320×H160 | |
| Pixel composing | RGB full color | |

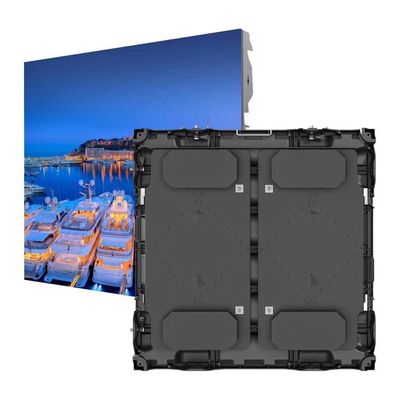

| Pixel unit screen | screen size(mm) | 960*960mm |
| module Resolution (nits) | 32*16 | |
| Cabinet structure | Water-proof | |
| installation | fixed on the back | |
| screen material | magnesium alloy | |
| Protect degree | IP65 front ,IP54 rear | |
| Viewing distance(m) | 10~100m | |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more | |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max | |
| Driving IC | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥2000- 3000 | |
| Viewing angel(c) | H120 V110 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | |
| Gray | 65536 | |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | |
| Average No Failure Time | 20000 hours | |
| Life span | 100,000 hours | |
| Out-of Control rate | 0.0001 | |
| To floor drain current | Less than 3.5MA | |
| Control system | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional | |

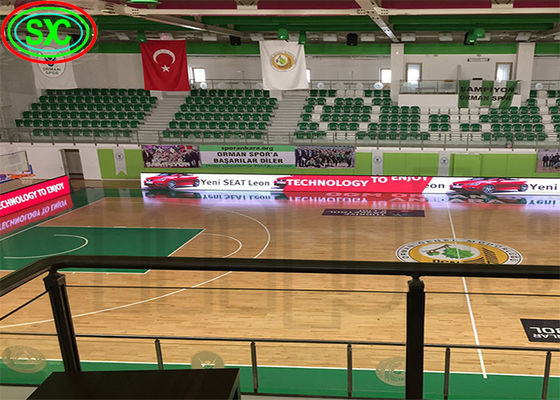

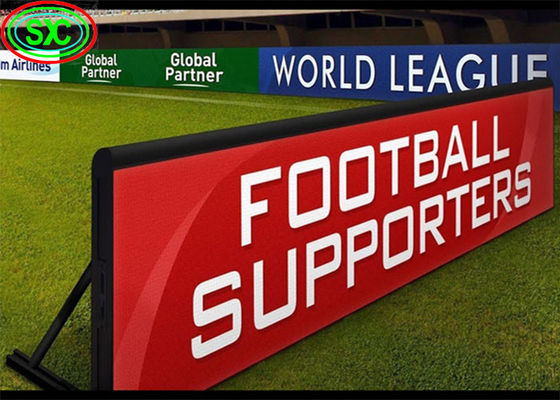

Our Case
FAQ
Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)} outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led module/display.
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
