Home ProductsStadium LED Display

Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2

Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2

Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2
Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2

Product Details:

Place of Origin: CHINA
Brand Name: SXCK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10

Payment & Shipping Terms:

Minimum Order Quantity: 10 sqm
Price: negotation
Packaging Details: plywood case, flight case, you choose what you like.
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5200 sqm per month
Contact Now
Detailed Product Description
Application:: Stadium Perimeter, Outdoor Advertising Led Screen Color:: Full Color
Panel Size:: 320*160mm Pixel Pitch:: 10mm
Certificate:: CCC,,ROHS,FCC,CE ,ISO Brightness:: 7500cd/sqm
Lamp: MLS/Kinglight/Nationstar Life Span:: 100000hours
Scan Mode:: 1/4S
High Light:

7500cd/Sqm Perimeter Led Display

,

SMD3535 Perimeter Led Display

,

280W/M2 LED Stadium Rental Screen

SCX LED Football Stadium LED Screen Waterproof Perimeter Advertising LED Boards Display for Sports





Stadium Perimeter Display

1. The new design is with die-casting aluminum module frame and cabinet, much reducing the screen weight.
2. Die-casting hanger, stong lock and good materials make sure of screen's strongness and precision.
3. No matter for cabinet or for module frames, they are both die-casting aluminum, making sure of good heat dissipation. So screen can still work well in high temperature.



Parameter specification

Module:

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD3535
Module size 320x160mm
Module resolution 32*16dots

Cabinet Parameter:

Cabinet size 960x960mm
Cabinet material ironed steel cabinet
Cabinet weight 27.5kg
Cabinet resolution 96*96dots
Ingress protection Front/Rear IP65/IP54



Whole Screen Parameter
Pixel density 10000dots/
Brightness ≥5000cd/
Viewing angle H≥120° V≥60°
Min.viewing distance 10m
Max.power consumption 850W/
Avg.power consumption 280W/
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Refresh rate ≥960Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation



Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way

Computer, video-synchronous, real-time, off-line, wireless, internet etc.

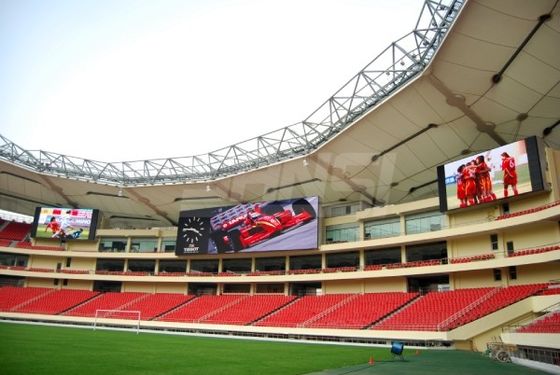

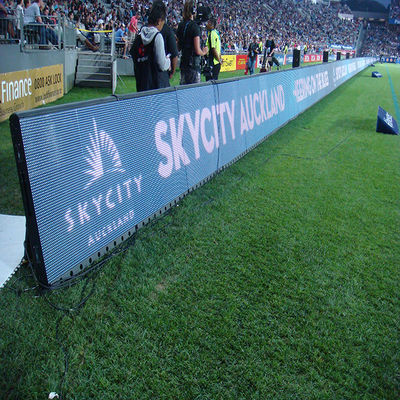

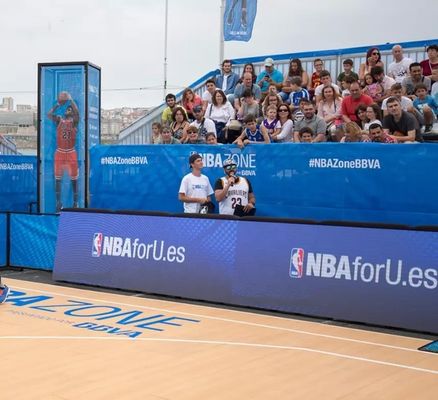

Our case



Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2 0Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2 1Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2 2Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2 3







Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.




Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2 4

Certificate
Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2 5


Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Full Color SMD3535 7500cd/sqm Perimeter Led Display 280W/m2 6
