Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm

Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm

Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm
Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm
Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm
Product Details:
Place of Origin: CHINA
Brand Name: SXCK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotation
Packaging Details: plywood case, flight case, you choose what you like.
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm per month
Contact Now
Detailed Product Description
Application:: Stadium Led Display Color: Full Color
Panel Size:: 960*960*85mm Pixel Pitch:: 5/6/8/10mm
Display Function:: Video Certificate: CE ROHS FCC
Brightness:: 5500cd/sqm Warranty: 2 Years
Product Name:: P10 Football Stadium Perimeter LED Screen Advertising Display Module Size:: 320x160mm
Installation Type:: Standing Type Screen Height:: 0.96m (close To 1m)
High Light:

P10 Stadium Perimeter LED Display

,

5500cd/sqm Stadium Perimeter LED Display

,

960*960mm Outdoor Stadium Led Panels



Outdoor fixed perimeter advertising tv panel large board P6 P8 P10 stadium led display screen for soccer basketball football





Parameter specification

Module:

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 320x160mm
Module resolution 32*16dots

Cabinet Parameter:

Cabinet size 960x960mm
Cabinet material ironed steel cabinet
Cabinet weight 27.5kg
Cabinet resolution 96*96dots
Ingress protection Front/Rear IP65/IP54



Whole Screen Parameter
Pixel density 10000dots/
Brightness ≥5000cd/
Viewing angle H≥120° V≥60°
Min.viewing distance 10m
Max.power consumption 850W/
Avg.power consumption 280W/
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Refresh rate ≥960Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation



Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way

Computer, video-synchronous, real-time, off-line, wireless, internet etc.

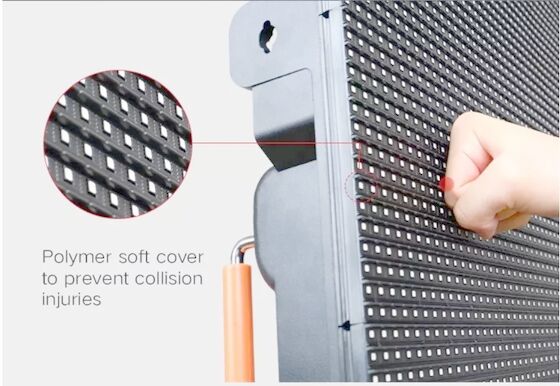

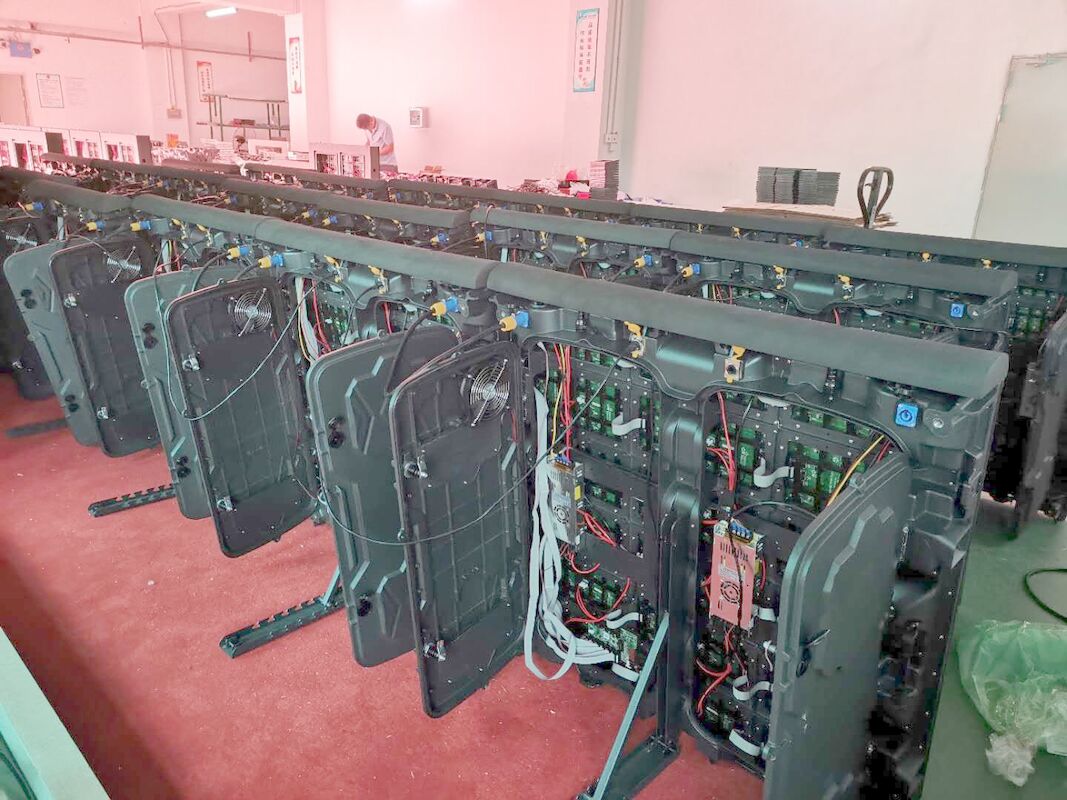

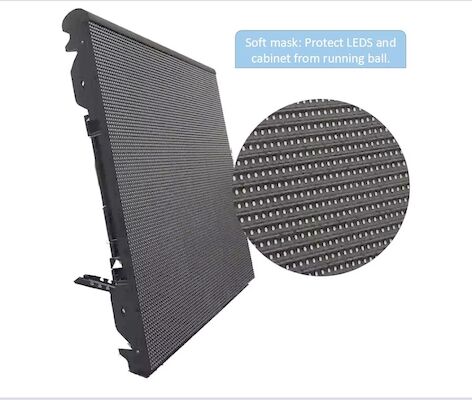

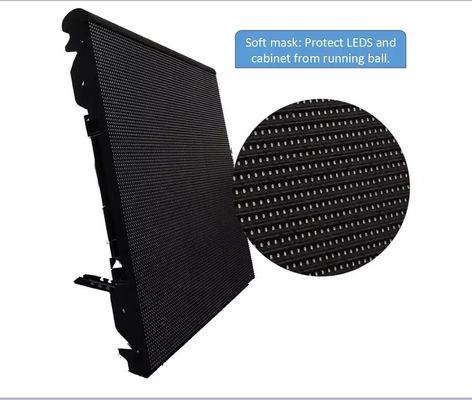

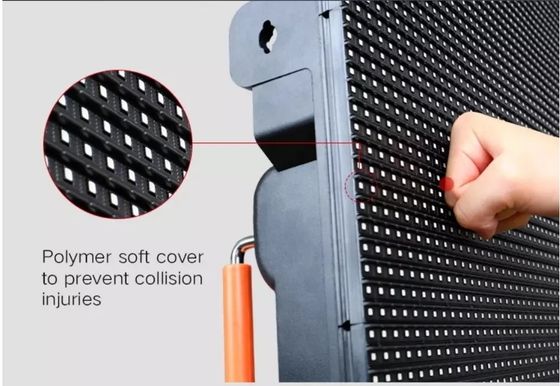

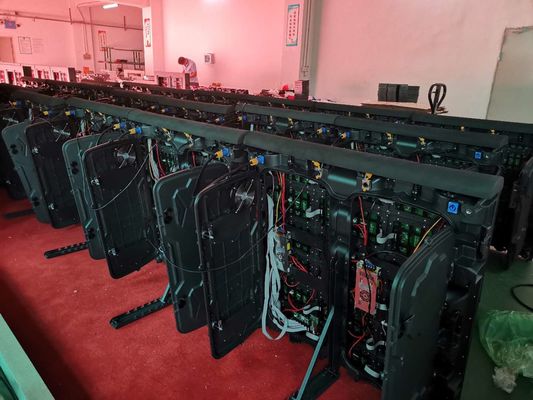

Cabinet show

Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm 0Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm 1Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm 2Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm 3





Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm 4

Certificate
Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm 5


Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Football 5500cd/sqm P10 Stadium Perimeter LED Display 960*960mm 6



FAQ

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.

Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
