Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 10sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | plywood case,flight case, you choose what you like. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Application:: | Outdoor Events, Stage, Live Events Led Display | Color:: | Black |
|---|---|---|---|
| Panel Size:: | 500*1000*75mm | Pixel Pitch:: | 4.81mm, 4.81mm |
| Brightness:: | 5500cd/sqm | Life Span:: | 100000hours |
| Viewing Angle:: | 160H/160V | Certificate:: | CE ROHS FCC |
| Control:: | Novastar | Keyword:: | Indoor Led Display Screens |
| High Light: | P4.81 Outdoor LED Advertising Screen,Outdoor LED Advertising Screen,SMD1921 Led Stage Curtain Screen |
||
SCX LED Indoor Big P2.97 P3.91 Truss Rental Led Video Wall Concert Stage Background Wedding 3.91mm LED Screen
Product Feature:
1) High quality LED chip and high anti-static electricity capacity.
2) Use pure copper power supply wire and copper wire arrangement, stability and long service life.
3) Large viewing angle and smooth displaying provide excellent visual effect from every angle.
4) Ultra high brightness, low attenuation, high reliability and weather ability.
5) High refresh rate, high gray scale, ghost-canceling, low power consumption.
6) It can be designed and maintained on the front and back, easy and fast and easy to maintain.
7) Own over 100 Product patents,CE and RoHS approval.
P3.91 Specification:
| Module Parameter | |||||
| Pixel | 3.91mm | Input voltage | 4.8-5.5V | Weight | 0.68kg±0.01kg |
| Lamp color | 1R1G1B | Module Power | ≤45W | Material | PC |
| Size | 250*250*16mm | Max Current | 8.7A±0.3A | Copper nut | 6*8*M4 |
| Structural | in-built driver | Pixel density | 65536Dots/m2 | Scan Mode | 1/4 |
| LED Lamp | SMD1921 | Resolution | 64*64=4096Dots | ||
| Cabinet Parameter | |||
| Die-cast aluminum box | 500mm*500mm*65mm | Average power consumption | ≤90W |
| Cabinet Resolution | 128*128=16384 Dots | Max power consumption | ≤180W |
| Cabinet Area | 0.25m2 | Cabinet Weight | 7.5kg±0.05kg |
| Screen Parameter | |||
| Brightness | ≥3500cd/m2 | Brightness uniformity | >0.95 |
| Horizontal viewing angle | 140±10° | Vertical viewing angle | 130±10° |
| Best visual distance | ≥4.0m | Max power per square | ≤720w/m2 |
| Module Parameter | |||||
| Pixel | 4.81mm | Input voltage | 4.8-5.5V | Weight | 0.68kg±0.01kg |
| Lamp color | 1R1G1B | Module Power | ≤45W | Material | PC |
| Size | 250*250*17mm | Max Current | 8.7A±0.3A | Copper nut | 6*8*M4 |
| Structural | in-built driver | Pixel density | 43264Dots/m2 | Scan Mode | 1/13 |
| LED Lamp | SMD2727 | Resolution | 52*52=2704Dots | ||
| Cabinet Parameter | |||
| Die-cast aluminum box | 500mm*500mm*65mm | Average power consumption | ≤90W |
| Cabinet Resolution | 104*104=10816 Dots | Max power consumption | ≤180W |
| Cabinet Area | 0.25m2 | Cabinet Weight | 7.5kg±0.05kg |
| Screen Parameter | |||
| Brightness | ≥4000cd/m2 | Brightness uniformity | >0.95 |
| Horizontal viewing angle | 140±10° | Vertical viewing angle | 130±10° |
| Best visual distance | ≥4.0m | Max power per square | ≤720w/m2 |
| Control System Parameter | |||
| Gray level | Red,Green,Blue.12-16bits | Display color | 16777216 |
| Frame change frequency | ≥60FPS | Refresh rate | ≥1920HZ |
| Control mode | Synchronous/Asynchronous | Bright adjustment | 256 level |
| Input signal | RF/S-video/RGB/RGBHV/YUV/YC/COMPOSITION etc. | ||
| System operating characteristics | |||
| Service life | ≥100000hrs | MTBF | ≥10000hr |
| Attenuation rate (working 3 years) | ≤15% | Failed Rate | <0.0001 |
| Operating Environment | Temperature -20℃~+50℃;Humidity, 10%~90%RH. | ||

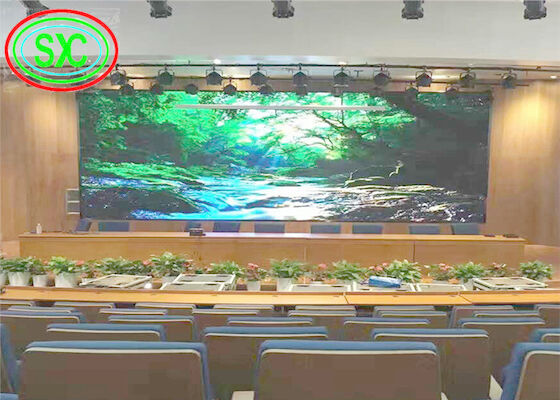

Product Application:
Wide applied in stadiums,advertisement,banks,securities exchange,stations,shoping malls,postal officees,schools,monitoring,restaurants,entertainment,enterprises etc...

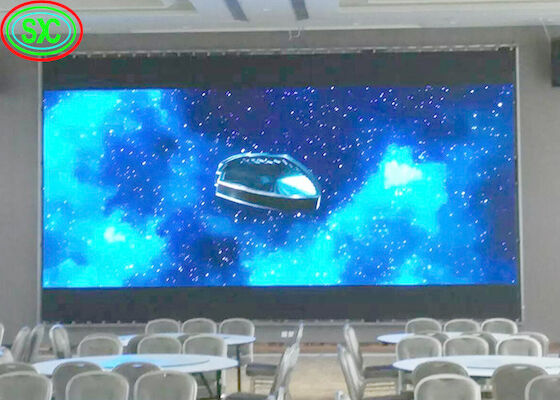

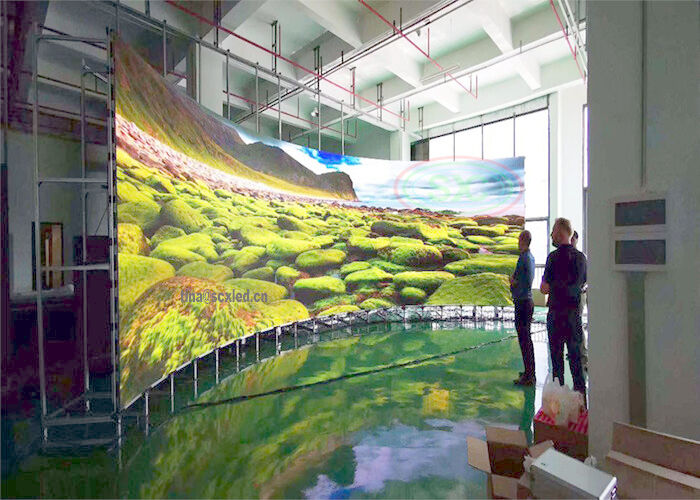

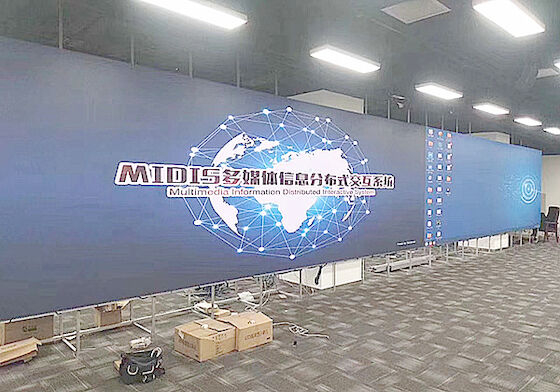

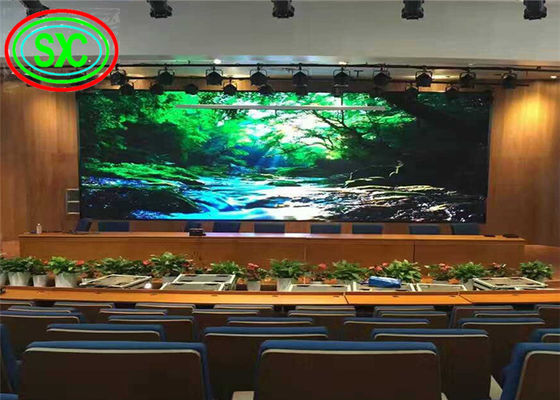

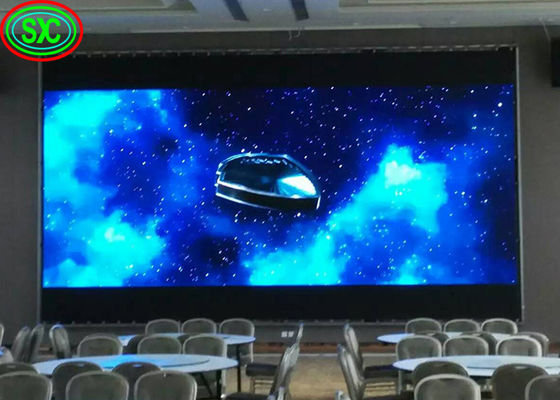

P3.91 rental led display as above

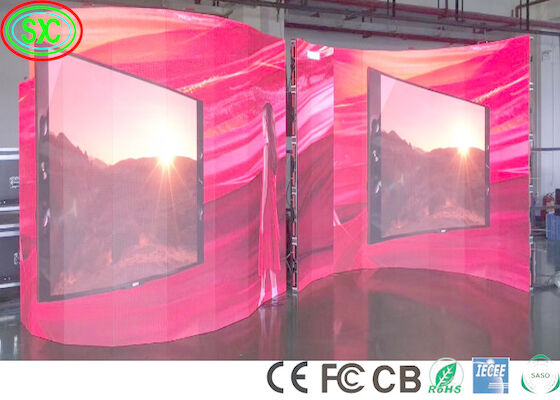

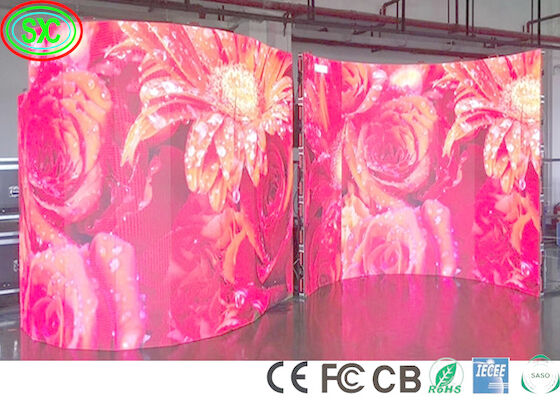

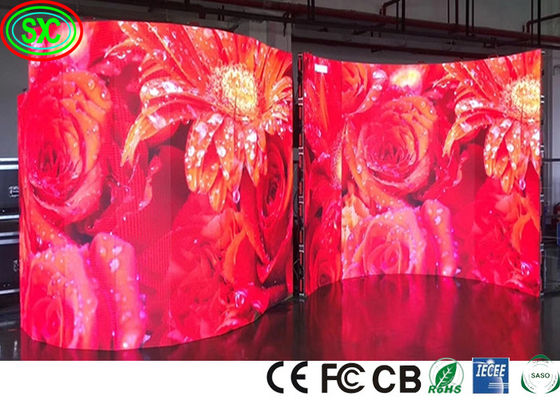

P4.81 rental led display as above
company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1: What quality certificates do you have?
A1: We have CE,RoHS,FCC,ETL,CB certificates.
Q2: How about the warranty?
A2: Warranty is 2 years.
Q3: How's your service?
A3: (1)Reply your inquiry in 24 working hours.
(2)Experienced staffs answer all your query in fluent English. (3)Customized design is available.
Q4: What's the main market?
A4:We mainly exported to North America, South America and Europe. We can also exported to other countries and rigions .
Q5: What's the deadline?
A5:Our production time is about 15 working days.
