Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CBCE/ROHS/FCC/ISO/UL |
| Model Number: | P8 or P10 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 8-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Stadium Led Display | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 960*960*85mm | Pixel Pitch:: | 5/6/8/10mm |
| Usage:: | Outdoor | Display Function:: | Video |
| Brightness:: | 5500cd/sqm | Warranty:: | 2 Years |

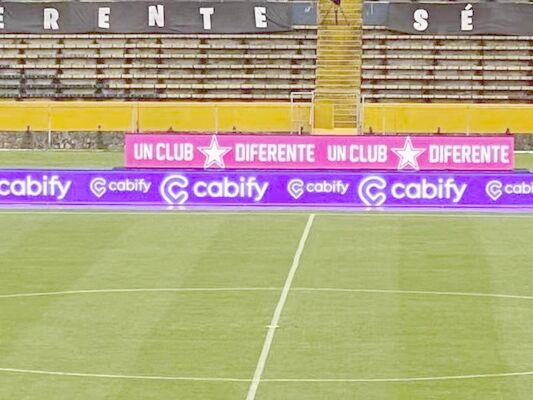

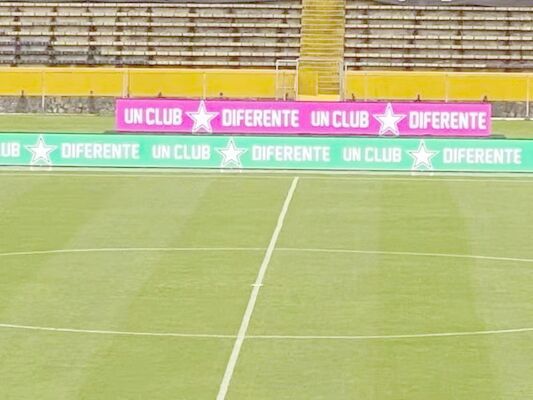

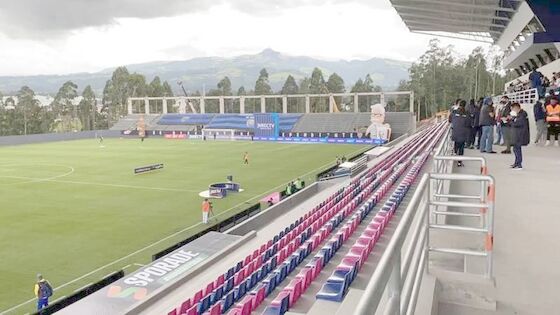

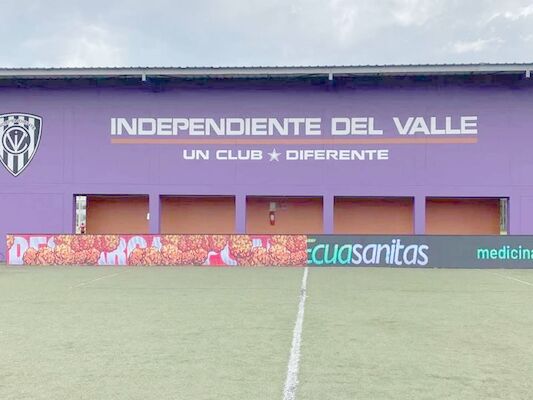

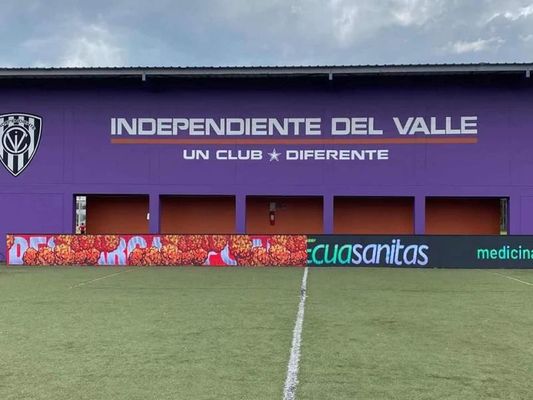

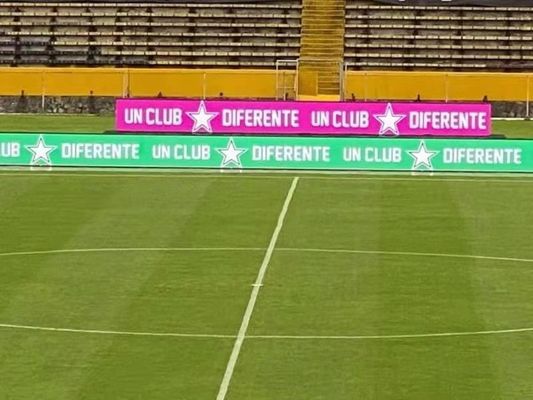

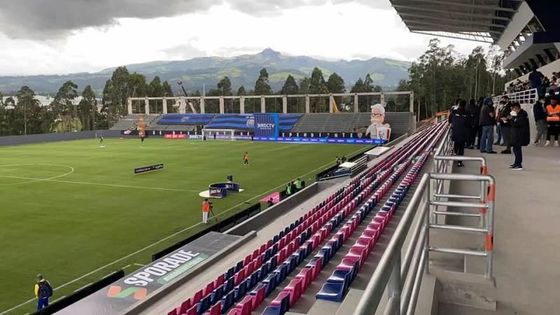

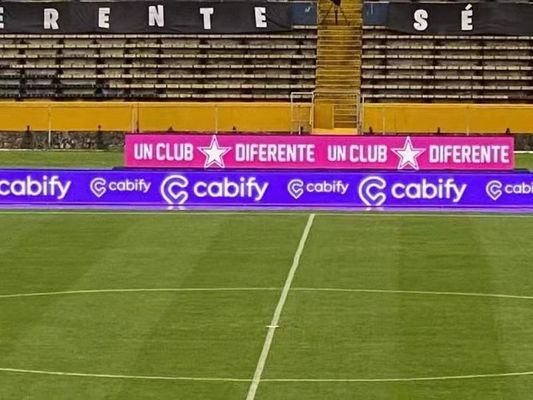

| Product Name:: | P10 Football Stadium Perimeter LED Screen Advertising Display | Life Span:: | 100000 Hours |
| High Light: | P10 Stadium Perimeter Led Panels,5500nits Stadium Perimeter Led Panels,SMD3535 Outdoor Perimeter Led Panels |
||
The Features of P10 LED Module(2Scan):
1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.
2. Rich Content: It can show text, chart, graphic, cartoon ,video and so on.
3. High Refresh Rate: Adopt MBI5124 drive IC (Standard Configuration). The refresh rate can be as high as 1920Hz, which can eliminate ghost effect effectively. For rental led display, we prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate can achieve 3840Hz. The graphics are stable with no wave or black screen. Video pictures are fine and smooth with clear edges. It has good dynamic expressiveness which can show the graphic information exactly/vividly and brings you perfect visual enjoyment.
4. High Resolution: Adopt high pixel density display unit with micro pitch, which can joint the boards together in any direction, any size and any shape to easily produce FHD, 4k big screen.
5. Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.
6. Super-wide view angle: 140°view angle and consistent display effect at multi direction , no mosaic phenomenon.
7. Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.
8. LED Single-lamp maintenance with low cost.
9. Environmental-friendly and energy-saving.
led display Product parameter
| Unit Module | Item | Parameter |
| Model Number | cn-P10-2scan | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000pcs/Square meters | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power consumpion | 30W | |
| Module thickness | 17mm | |
| Weight | 0.8KG | |
| Drive type | Constant drive | |
| Scan mode | 1/2scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥7000cd/Square meters | |
| bracket | Size | 320mm*160mm |
|
LED Unit Module |
Dimension | 960mm*960mm |
| Quanty of Module | 18 | |
| Power supply | 5V/40A*3 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 96*96 | |
| Best viewing distance | 10M~50M | |
| Best viewing distance | 140°(W) 120°(H) | |
| Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 260W/Square meters | |
| Max.Power consumption | ≤800W/Square meters | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver |
| Refresh frequency | ≥400HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
1. 100% brand new
2. Payment: Bank transfer or Western Union and etc.
3. Reply your inquiry in 24 working hours.
4. Customized design is available, OEM acceptable.
5. Exclusive and unique solution can be provided.
6. Special discount and protection of sales area provided to our distributor.
7. Welcome your visit to our factory and company offices.
8. Warranty: 2 years warrenty, life-long maintenance.
