Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCXK-P3.91/P4.81 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, flight case |
| Delivery Time: | 3-8 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5630 sqm month |
| Tube Chip Color:: | FULL COLOR | Display Function:: | Video |
|---|---|---|---|
| Product Name:: | Outdoor Rental P4.81 Led Display | Module Size:: | 250mm*250mm |
| LED Chip:: | Epistar | LED Cabinet Size:: | 500*500mm\500*1000mm |
| Driving Method:: | 1/7 Scan | Brightness:: | 5500cd/sqm |
| Warranty:: | 2-3years | Life Span:: | 100000hours |
| Certificate:: | CE ROHS FCC | ||
| High Light: | P3.91 Stage Rental LED Display,5500nits Stage Rental LED Display,48W Stage Background Led Display |
||
The Features of P3.91 LED Module:
1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.
2. Rich Content: It can show text, chart, graphic, cartoon ,video and so on.
3. High Refresh Rate: Adopt MBI5124 drive IC (Standard Configuration). The refresh rate can be as high as 1920Hz, which can eliminate ghost effect effectively. For rental led display, we prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate can achieve 3840Hz. The graphics are stable with no wave or black screen. Video pictures are fine and smooth with clear edges. It has good dynamic expressiveness which can show the graphic information exactly/vividly and brings you perfect visual enjoyment.
4. High Resolution: Adopt high pixel density display unit with micro pitch, which can joint the boards together in any direction, any size and any shape to easily produce FHD, 4k big screen.
5. Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.
6. Super-wide view angle: 140°view angle and consistent display effect at multi direction , no mosaic phenomenon.
7. Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.
8. LED Single-lamp maintenance with low cost.
9. Environmental-friendly and energy-saving.
led display Product parameter
| INDOOR P3.91 SMD 3IN1 TECHNICAL PARAMETERS |
| Unit Module | Item | Parameter |
| Model Number | cn-P3.91-16S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 3.91mm | |
| Pixels Density | 655410pcs/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Pixel resolution | 64dots(W)*64dots(H) | |
| Max Power consumpion | 48W | |
| Module thickness | 17mm | |
| Weight | 0.45KG | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥1200cd/Square meters | |
| bracket | Size | 250mm*250mm |
|
LED Unit Module |
Dimension | 500mm*1000mm |
| Quanty of Module | 4 | |
| Power supply | 5V/40A*1 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 128*128 | |
| Best viewing distance | 4M~10M | |
| Best viewing distance | 140°(W) 120°(H) | |
| Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 260W/Square meters | |
| Max.Power consumption | ≤900W/Square meters | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver |
| Refresh frequency | ≥400HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

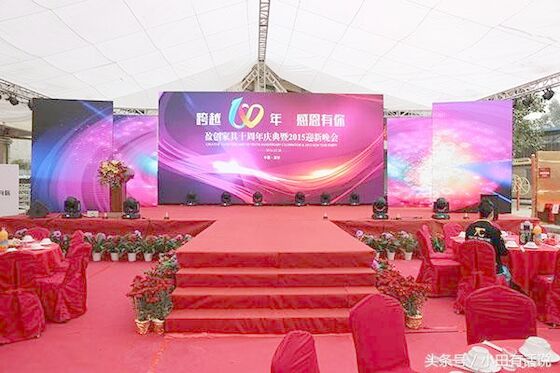

The product approved the CE ,FCC,RoHS certificates and so on . It can be widely used , such as theatre,pr gymnasium,exhibition hall,the control romm and stage etc.
Nation Star Kinglight Rental LED Display 500x500 LED Cabinet P3.91 P4.81 Outdoor LED Screen With 3840hz
P4.81 LED Display Cabinet :500*500mm500*1000mm
P4.81 LED display Aging test:
Our Services:
1)Reply your inquiry in 24 working hours.
Packing and delivery
FAQ
A: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
A:Order less than 100 square meter led time take 15 working days
A: Low MOQ, 1 square meter or a moudle checking is available
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 1 years warranty to our products
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
