Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | smd -p3.91 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 8-17 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Application:: | Outdoor / Indoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 250*250mm | Product Name:: | P3.91 Rental Led Display |
| Protecting Rating:: | IP65 | Control:: | RJ45(LAN)/WIFI/USB/4G... |
| Frame Material:: | Die-casting Aluminum | Drive Mode:: | 1/16 Scan Constant Currents |
| Cabinet Dimension:: | 500*1000*85mm(customization) | Module Dimension:: | 250*250mm |
| Verification:: | CE EMC LVD ROHS | LED Arrangement:: | SMD1921 LED |
| High Light: | SMD1921 Stage Led Video Wall,Stage Led Video Wall 1R1G1B,P4.81 Indoor Stage Led Screen |
||
♦ Small Pixel LED Screen for Clearer Pictures
The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.
Rental p3.91 led display 500x1000mm outdoor led display screen advertising for stage
| Item | Parameters |
| Pixels(Pixel Pitch) | 3.91mm |
| Pixel Density | 65,536dots/m² |
| Color Configuration | 1R1G1B 3in1 |
| LED Encapsulation | SMD1921 |
| Drive Duty | 1/16scan |
| Cabinet Resolution | 128x256dots |
| Cabinet Size | 500x1,000mm |
| Cabinet Weight | ≈14kg |
| Brightness | >5,500nits |
| Best Viewing Distance | 3.9-39m |
| Best Viewing Angle | H: 160°, V: 120° |
| Refresh Rate | >1,920HZ |
| Gray Level | 256levels of Each Color |
| Display Colors | 16.7millions |
| Max. Power Consumption | 640W |
| Ave. Power Consumption | 260W |
| Lifespan | >100,000hrs |
| MTBF | >10,000hrs |
| Working Voltage | AC 110-220V ±10%, 50-60HZ |
| Working Temperature | -30°C - +60°C |
| Working Humidity | 10% - 95%RH |
| Warranty | 2 Full Years |
| Certifications | CE, LVD, RoHS |

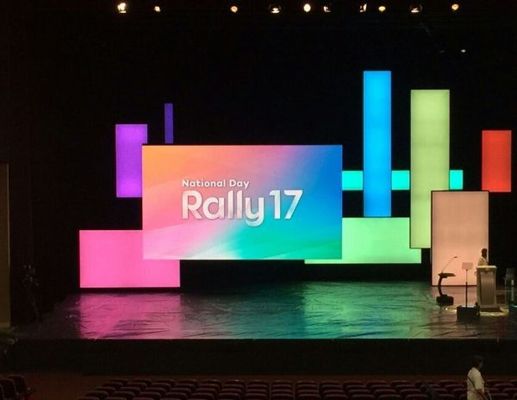

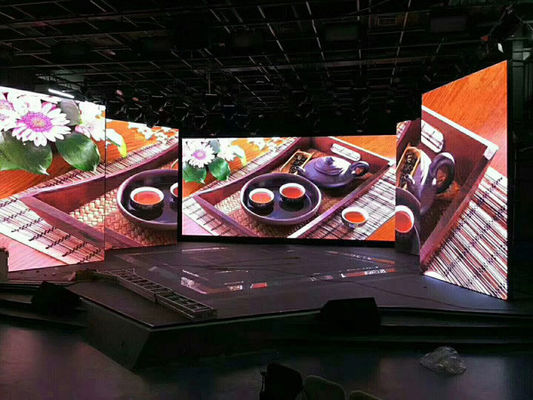

Outdoor LED Screen Stage P3.91 Rental LED Display for Advertising
Control Mode
Synchronous and control mode: synchronous convenience control and synchronous supersized-screen control (Asynchronous control optional: WIFI/ LAN / USB / 4G. They can be freely selective according to the scene and as customers' requests).
Features of outdoor rental led display
1)Lightweight
The aluminum die-casting technology makes the single cabinet as light as 14KG, which is convenient for assembly and transportation.
2)Seamless connection
The aluminum die-casting technology, together white the high-precision CNC procession, makes the precision reach ±0.05mm so as to achieve seamless assembly.
3)Ultra Thin
Ultra-thin design, the thickness is only 85mm.
4)Easy to maintain
No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.
5)Noiseless
The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
6)Ghost canceling
Exquisite and clear pict quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
7)Hight refresh rate
1000Hz ~ 3840Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems.
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T, PayPal, West Union, L/C.... At least 30% deposit in advance, and the rest 70% before delivery.
Our average production time is 7-15 days, after receiving the deposit.
Q4: What's the control system?
A4: We usually use Nova, Linsn, Huidu, Colorlight, ONBON or XIXUN control system, and also we can make it as your requests.
Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, we will refund you on Alibaba.
