P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W

P8 SMD3535 1R1G1B Stadium Perimeter LED Board P10 780W

Brand Name:	SCX
Model Number:	P8
MOQ:	10 sqm
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	6500 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/ROHS/FCC/ISO/UL

Application::

Advertising

Color::

Full Color

Panel Size::

960x960mm

Display Fuction::

Video

Cabinet Resolution::

96*96pixel

LED Configuration::

SMD3535

Pixel Density::

10000dots/m2

Input Voltage::

100-240V

Refresh Rate::

>1920Hz

Warranty::

3 Years

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

SMD3535 Stadium Perimeter LED Board

1R1G1B Stadium Perimeter LED Board

780W Stadium Led Video Wall

Product Description

SCX LED Football Stadium Perimeter Led Screen Display P5 P6 P8 P10 LED Module Advertising Outdoor Led Large Screen Display

Indoor & Outdoor P6 P8 P10 football basketball stadium perimeter led screen stadium led display

* High brightness & High refresh rate.

* Nova star/Linsn/Colorlight control system indoor outdoor led screen

Specification

			Item

			P6

			P8

			P10

			Pixel Pitch

			6mm

			8mm

			10mm

			Pixel Configuration

			1R1G1B

			1R1G1B

			1R1G1B

			LED Type

			SMD3535

			SMD3535

			SMD3535

			LED Module Size

			192*192mm

			320*160mm

			320*160mm

			Module Resolution

			32*32pixel

			40*20pixel

			32*16pixel

			Pixel Per SQM

			27777dots/m2

			15625dots/m2

			10000dots/m2

			Refresh Rate

			1920/3840Hz

			1920/3840Hz

			1920/3840Hz

			Scan Mode

			1/4 scan

			1/4 scan

			1/4 scan

			Brightness

			>=6500CD

			>=6500CD

			>=6500CD

			Cabinet Material

			Die casting aluminum

			Die casting aluminum

			Die casting aluminum

			Cabinet Resolution

			160*160pixel

			120*120pixel

			96*96pixel

			Cabinet Size

			960*960*150mm

			960*960*150mm

			960*960*150mm

			Cabinet Weight

			30kg

			30kg

			30kg

			Waterproof Grade

			IP65

			IP65

			IP65

			Max Power Consumption

			780W

			780W

			780W

			Ave Power Consumption

			260W

			260W

			260W

Product detail

* Soft mask: Protect LEDS and cabinet from running ball.

* When a player accidentally bumps into, protect the player from injury.* Can be disassembled
Assembling the cabinet up and down, right and left.

Bracket: Seven inclination grooves.Adjustable inclination of cabinet: 85-40 degrees

LED Display Seamless Splicing

* Slim and light weight, quick disassembly.

* High degree of protection,high durability.

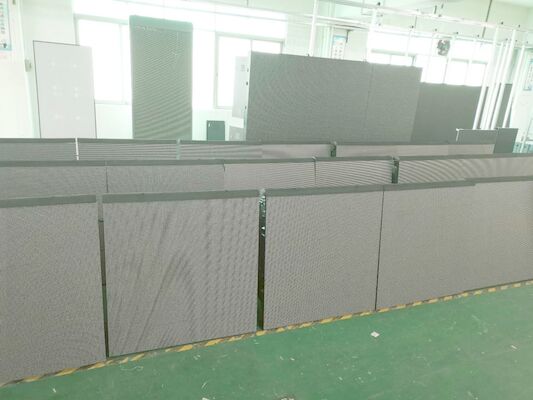

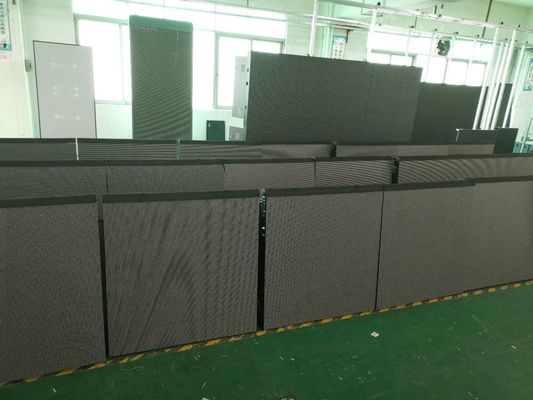

LED Display Test

Each product tested more than 72 hours before shipment.

Recommend For You

LED Display Case

FAQ

Q1: What's the warranty for your LED Display Screen?

A1: We have a 3-year warranty for our led display screen and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?

A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within the warranty time!

Q3: What's your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?

A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use ONBON or XIXUN control system.

If you have another option, please let us know.

Q5: How can you ensure the led display product quality?

A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products

Tags:

Item	P6	P8	P10
Pixel Pitch	6mm	8mm	10mm
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B
LED Type	SMD3535	SMD3535	SMD3535
LED Module Size	192*192mm	320*160mm	320*160mm
Module Resolution	32*32pixel	40*20pixel	32*16pixel
Pixel Per SQM	27777dots/m2	15625dots/m2	10000dots/m2
Refresh Rate	1920/3840Hz	1920/3840Hz	1920/3840Hz
Scan Mode	1/4 scan	1/4 scan	1/4 scan
Brightness	>=6500CD	>=6500CD	>=6500CD
Cabinet Material	Die casting aluminum	Die casting aluminum	Die casting aluminum
Cabinet Resolution	160*160pixel	120*120pixel	96*96pixel
Cabinet Size	960960150mm	960960150mm	960960150mm
Cabinet Weight	30kg	30kg	30kg
Waterproof Grade	IP65	IP65	IP65
Max Power Consumption	780W	780W	780W
Ave Power Consumption	260W	260W	260W
