27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding

27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding

  • 27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding
  • 27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding
  • 27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding
  • 27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding
  • 27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding
27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: wooden case or flight case are available.
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pitch: 6mm Pixel Configuration: Rgb 3in1
Module Size: 192x192mm Pixel Density: 27778 Dots/sqm
Cabinet Size: 960x960mm Driving Mode: 1/8 Scan
Brightness: ≥6500cd/m2 Warranty: 3 Years And
High Light:

27778 Dots /Sqm High Brightness LED Display

,

290W/M2 High Brightness LED Display

,

220VAC Branding Outdoor LED Screen

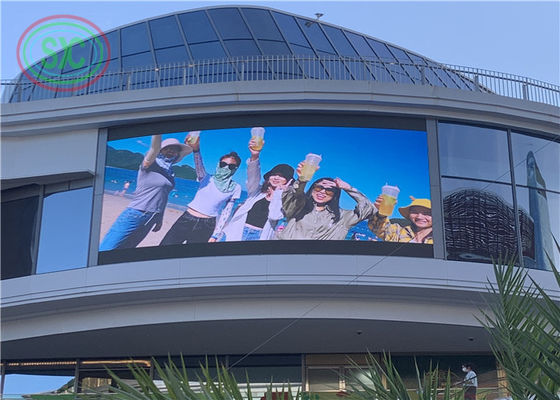

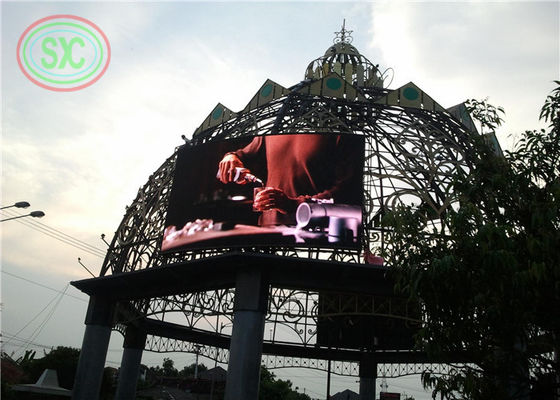

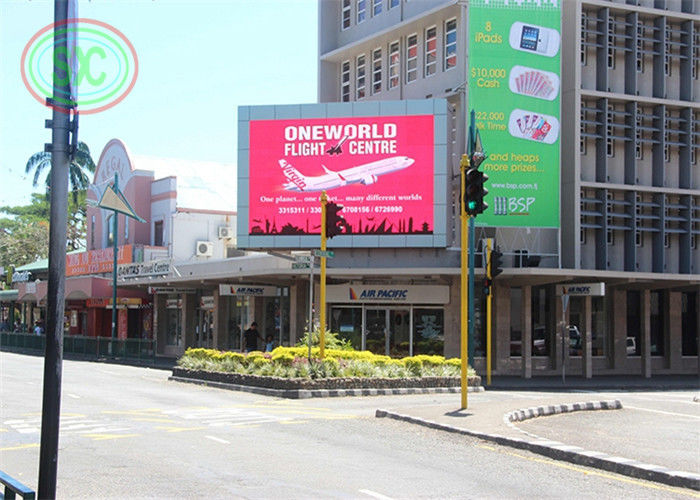

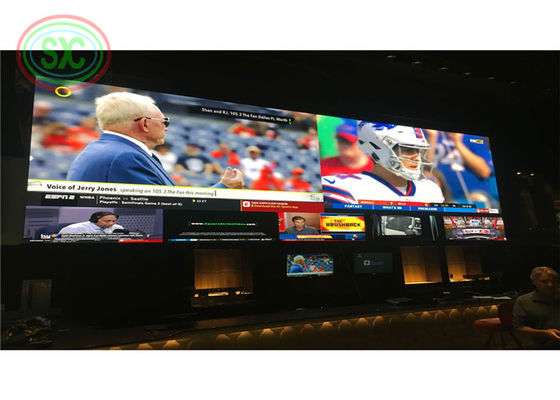

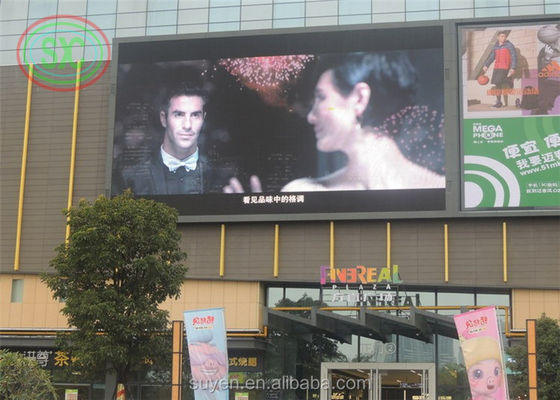

High brightness Outdoor P 6 LED display mounted on the wall for branding





Case EXhitbition


Module Parameter

Pixel pitch 6mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD3535
Module size 192x192mm
LED lamp KingLight or Nationstar
Module resolution 32x32 dots


Cabinet Parameter

Cabinet size 960x960mm
Cabinet material Ironed steel cabinet
Cabinet weight 32.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 27778 dots/m²
Brightness ≥6500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 6m
Max.power consumption 750W/m²
Avg.power consumption 290 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥480frames/s
Refresh rate ≥1920Hz
MTBF ≥100,000 hours
Lifespan ≥50000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.


Detailed picture
27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding 0
27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding 1

Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding 2

Certificate
27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding 3


Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding 4
27778 Dots /Sqm High Brightness LED Display 290W/M2 220VAC For Branding 5
