Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | P4.81 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 3-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4200 sqm month |
| Refresh Rate:: | 3840Hz | Brightness: | 3500 |
|---|---|---|---|
| Name: | Outdoor And Indoor P4.81 Usage For Stage Rental Events | Waterproof: | 100% |
| Cabinet Size: | 500x500and 500x1000mm | Control: | Novastar ，linsn ，HD,colorlight |
| High Light: | 3840Hz indoor led display screen,P4.81 indoor led display screen,waterproof led video wall panel |
||
Product Features
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, SGS passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer
Remark:Stage Background Super Thin P4.81 Church LED Video Wall Panel Display Screen widely use for tage background, advertising activity, press conference, news conference etc.
Product Description
| Item | Specification | ||||||||
| LED Parameters |
Luminous Intensity | R:620-630, G:520-535, B:465-475 | |||||||
| Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd | ||||||||
| Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA | ||||||||
| LED Module | Led Type | SMD 3 IN 1 | |||||||
| Pixel Pitch | 4.81 mm | ||||||||
| LED Shape & Size | 2mm SMD 2121 | ||||||||
| Encapsulation Type | 1R1G1B | ||||||||
| Module Dimension | 250mmx250mm | ||||||||
| Module Resolution | 64 × 64 | ||||||||
| Module Weight | 0.20 KG | ||||||||
| Pixel Density | 43222 | ||||||||
| Driving Mode | 1/13 | ||||||||
| Module Power Consumption | 20 W | ||||||||
| LED Cabinet | Cabinet Size | 500mm(W)x 500mm(H) | |||||||
| Cabinet Thickness | 70 mm | ||||||||
| Cabinet Resolution | 104x104 | ||||||||
| Cabinet Material | Die Casting Aluminum Cabinet | ||||||||
| Screen | Use | Rent | |||||||
| Cabinet Weight | 6.5 KG | ||||||||
| Optical parameters | Brightness | ≥6000 cd | |||||||
| Contrast Ratio | ≥3000:1 | ||||||||
| Single-point Brightness Correction | Available | ||||||||
| Single-point Color Correction | Available | ||||||||
| Surface Evenness | GAP< 1mm | ||||||||
| Color Temperature Condition | 3500K～9500K,(can be adjustable) | ||||||||
| Viewing angle | 140°(Horizontal),140°(Vertical) | ||||||||
| Gray Scale | 16 bit | ||||||||
| Minimum Viewing Distance | 4.81 m | ||||||||
| Brightness Adjustment | 0-100% 8 levels | ||||||||
| Power Supply |
Operation Power | AC90-260V 50-60HZ | |||||||
| Max Power Consumption | 700 W /m² | ||||||||
| Average Power Consumption | 350 W /m² | ||||||||
| Control System |
Control Mode | Synchronous Control by Linsn system | |||||||
| Frame Update Frequency | ≥600Hz | ||||||||
| Screen Refresh Frequency | ≥3840Hz | ||||||||
| Gamma Correction | (-0.5—5.0) | ||||||||
| Input Signal Support | Composite,S-Video,Component, VGA,DVI,HDMI,SDI,HD_SDI |
||||||||
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m; Single-mode Fiber:10km |
||||||||
| Video Signal | MPG ／MPEG／MPV／MPA／ AVI／SWF／RM／RA／RMJ／ASF |
||||||||
| Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, |
||||||||
| Brightness Correction | Dot by Dot,module by module, cabinet by cabinet |
||||||||
| Operating Temp. | - 10° —+55° Celcius degree | ||||||||
| Operating Humidity | 10 - 90 % RH | ||||||||
| Operating Life | 100,000 Hours | ||||||||
| Protection Level | IP65 | ||||||||
| MTBF | 5000 Hours | ||||||||
| Out of Control Pixel Rate | 0.01% | ||||||||

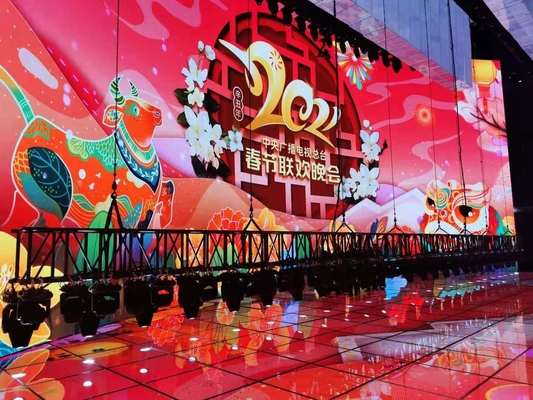

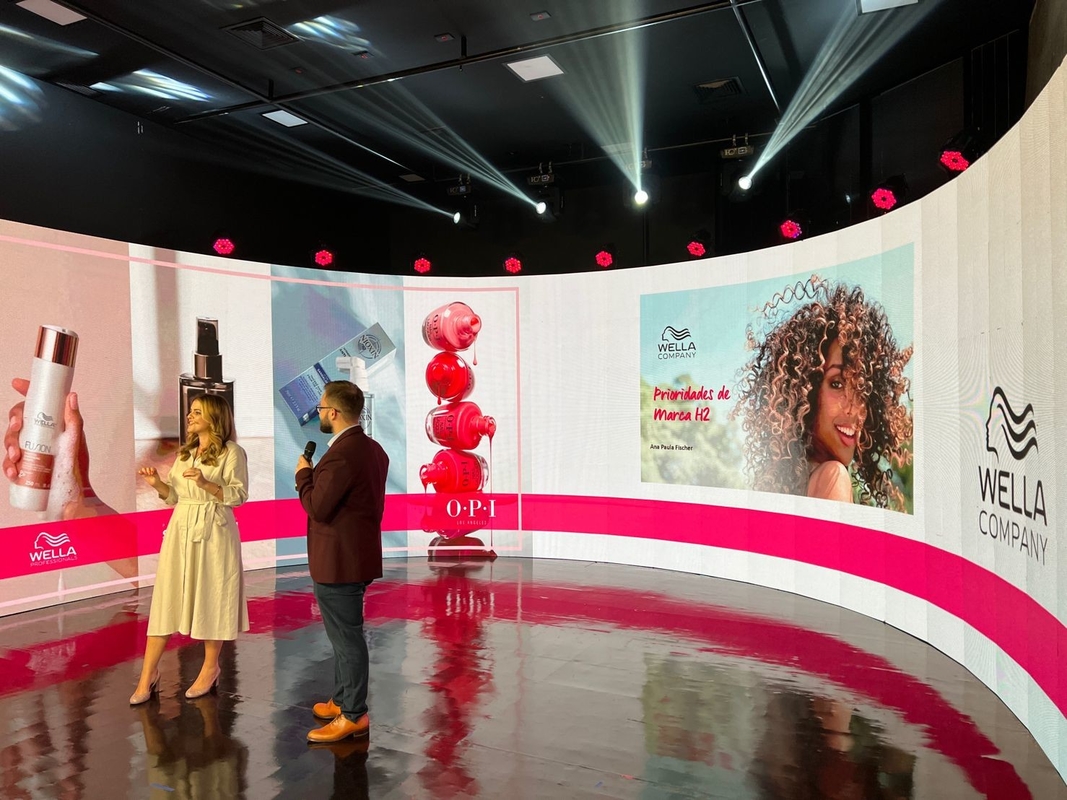

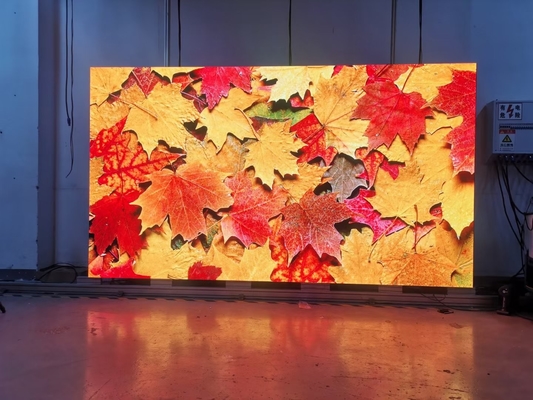

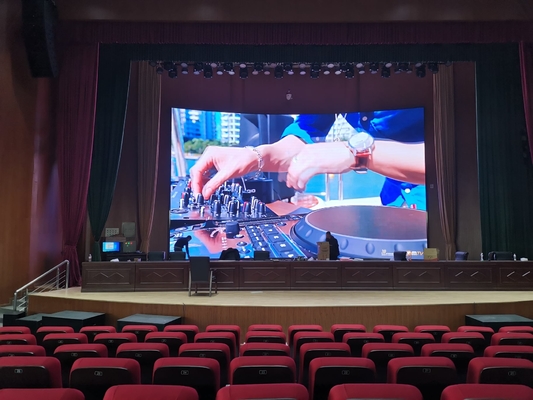

Our case
Personable characters Close-up play, text rolling play, or plug-in play, video screen can be moved horizontally, can also be on Down and down become text, personalized video pictures, brightening, beautifying stage background and stage floor, through software design and system control to meet other requirements of owners, advantages, can adopt frame structure design,
Easy to disassemble and assemble, reliable, easy to maintain applications and large entertainment venues and large-scale event occasions.
FAQ
1. How long could i receive the inquiry reply ?
A: You will get a reply within 24 hours.
2.What kind of led display do you offer ?
A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty
3.How is the after sales service ?
A: We have a professional team which is in all around the world , also a service hot-line dealing with your complains
and feedback. We also offer 24-hour online service to help you solving problems
4.How long will it take to deliver goods ?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after
we get your payment.
