P10 Outdoor Fixed LED Display 960x960 Iron Waterproof Cabinet Full Color

Service

1 Your inquiry related to our products or price will be replied in 24hrs

3  Distributoer ship are offered for your unique design and some our current models

4  Protection of your sales area,ideas of design and all your private information

2 Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.

3 Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.

Specifications

Unit Module	Item	Parameter	Parameter
	Module number	P10	P8
	Moule size	320mm x 160mm	256mm x 128mm
	Pixel pitch	10mm	8mm
	Pixel density	10000dots/sqm	15625dots/sqm
	Pixel configuration	1R1G1B	1R1G1B
	Package mode	smd 3535	smd3535
	Pixel resolution	32x 16 dots	32x16dots
	Max power consumpion	28w	28w
	Module thickness	14.85mm(without magnet)	14.85mm(without magnet)
		27.15mm(with magnet)	27.15mm (with magnet)
	Module weight	0.504kg	0.7kg
	Driver method	constant drive	constant drive
	Driver method	1/4 scanning	1/4
	Port type	HUB75	HUB75
	Brightness	>7000cd/sqm	>7000cd/sqm
Bracket	Size	320mm x 160mm	256mm x 128mm
Unit Cabinet	Cabinet size	960mm x 960mm	1024mm x 1024mm
	Quantity of module	18pcs	32pcs
	Power supply	5v/40A x 5pcs	5V/40A x5pcs
	Thermal discharge	2pcs cooling fans	2pcs cooling fans
	Pixel per cabinet	96 x 96 dots	128x128 dots
	Best viewing distance	5m-100m	5-100m
	Best viewing angle	160°(w)120°(H)	160°(w)120°(H)
	Temperature	storage:-35℃- +85℃	storage:-35℃-+85℃
		working:-20℃- +50℃	working:-20℃-+50℃
	Opration humidity	10%-95%	10%-95%
	Thickness	145mm	145mm
Power	Working voltage	220V±10%	220V±10%
	Averange power consumption	140W/sqm	140W/sqm
	Max. power consumption	420w/sqm	420W/sqm
	Current	<20mA(single LED)	<20mA(single LED)



Features



1.Public mould , easy to get module led display

2.High precision , seamless connect led cabinet outdoor

3.Fast installation , use fast lock RGB LED display panels fixed led display

4.Light weight,Magnuesium alloy cabinet ,35% more light weight than Aluminum cabinet

5.High unversality -can be processed according to module drawing , used for outdoor and indoor

6.Well design inclined hole for passing cable inside ,just like steel cabinet , for better waterproof

7.Can use forcount panel , connect any single cabinet to whole screen , good waterproof led rental outdoor

8.The waterproof grade reaches IP65

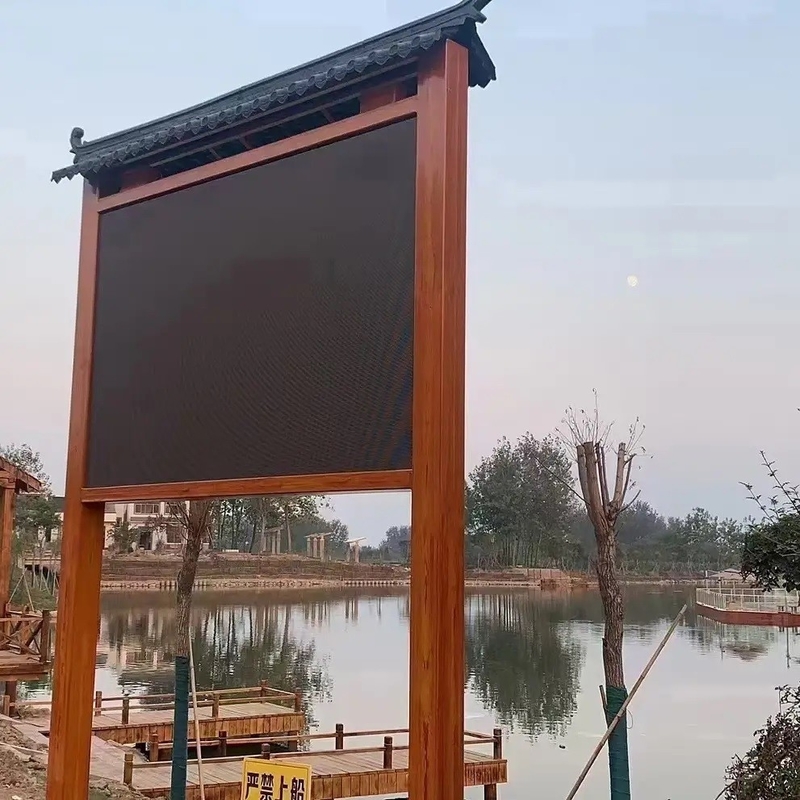

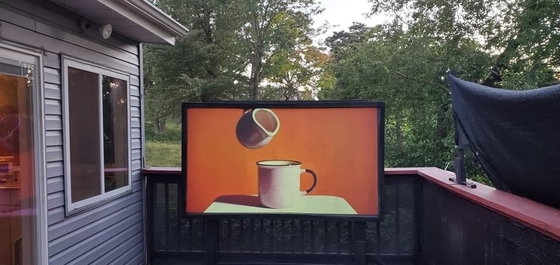

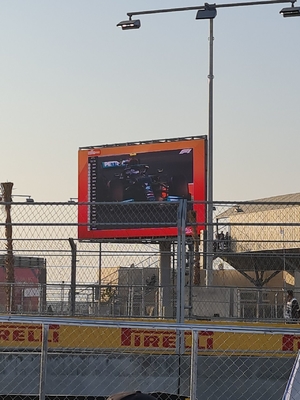

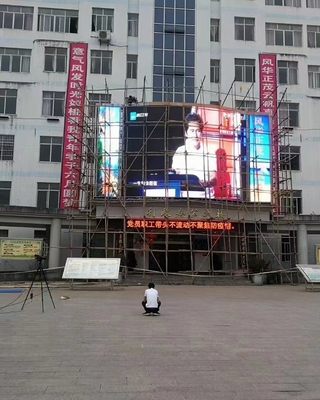

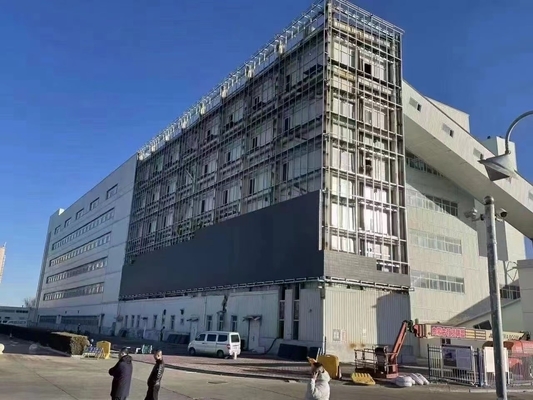

Our case



FAQ



Q1:Are you a factory or trading company?
A OEM/ODM factory,It is also a company integrating industry and trade.
Q2.what can you buy from us?
A:LED Display,LED Mudule,LED Screen,LED Wall,LED Display Rental
Q3: Where is your nearst port?
A : Our nearst port is shenzhen Shekou.
Q4: Are all of your products of good quality?
A: Yes, our products are of good quality, you don't have to worry about that. And we provide 2 years' warranty.
Q5: Can I visit your factory ?
A: We do have our factory, and you're welcomed to visit it at any time. The sales and the manager will accompany you to introduce our production line at that time.
