500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card

500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card

  • 500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card
  • 500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card
  • 500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card
  • 500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card
500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: SMD-P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 12 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 3-12 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4600 sqm month
Contact Now
Detailed Product Description
Name: Indoor P3.91 Led Screen For Rental Event Refresh Rate: 3840hz
Brightness: 3500nit Cabinet Size: 500x500mm And 500x1000mm
Control Cards: Novastar,linsn,huidu Led Lamp: Nationstar Lamp
High Light:

500x500mm rental led screen board

,

Novastar Card rental led screen board

,

P4.81 indoor led panel wall





1.Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 500mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.



2.High-precision die-cast aluminum cabinet, seamless unit box.



3.New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.



P3.91 idnoor dispaly parameter
LED Module Specifications
Pixel Pitch
3.9mm
Pixel Configuration
SMD2121 rgb
Module Resolution
64*64dots
Module Pixles
4096dots
Module Size
250*250mm
LED Cabinet Specification
Cabinet Size(W*H)
500*500mm/500*1000mm
Cabinet Resolution
128*128dots
Cabinet Pixels
16384dots
Module Quanity
4/8pcs
Material
Die Casting Aluminum
Brightness
≥2500cd/m2
Pixel Density
65536dots/m2
Driving Method
1/13 scan;constant current
View Angle
140H,120V
Optimal Viewing Distance
≥3
Brightness Control
Red,Green and Blue 4096 Grade/ Each
Input Voltage
AC100 - 120V/50Hz /AC200 - 240V/50Hz
Defects Rate
≤0.00001
Power Consumption
Max:160W/Cabinet Average:80W/Cabinet
Screen weight
8kg/Cabinet
MTBF
>10,000 hours
Life span
≥100,000 hours
Earth Leakage Current
<3mA
Protective Grade
IP43
Temperature-operating
-20℃~50℃
Humidity-operating
10%~95%
Model
P3.91 -16S
LED Light Source
SMD 2121 RGB Twiwan led lamp brand
cabinet size
500*500mm/500*1000mm
Pixel density
65536dots/sqm
power supply
Youyi ,G-energy ,

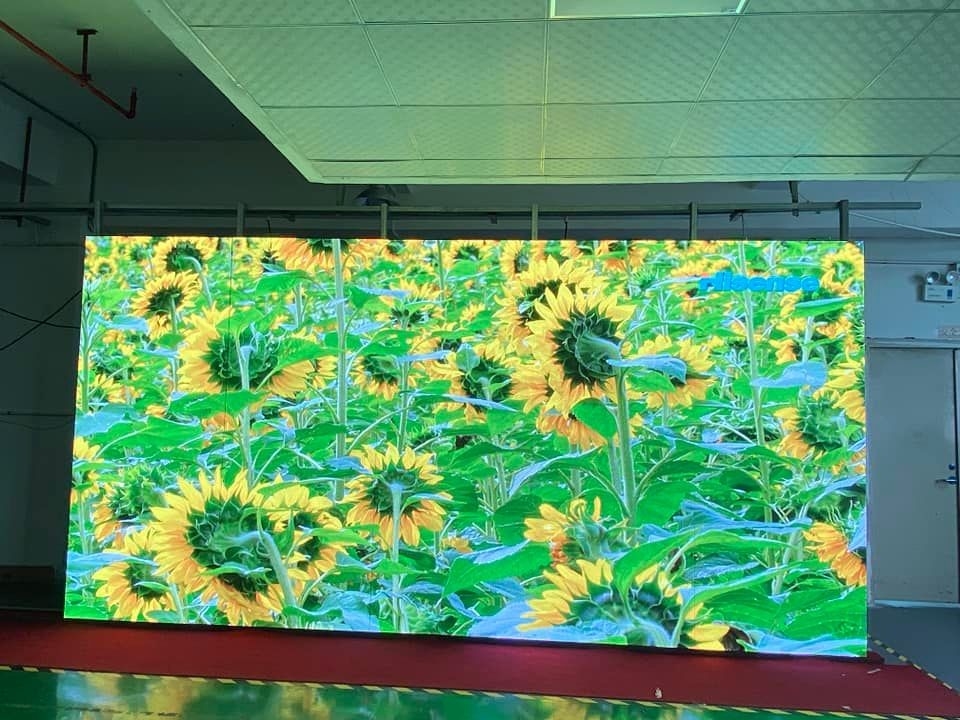

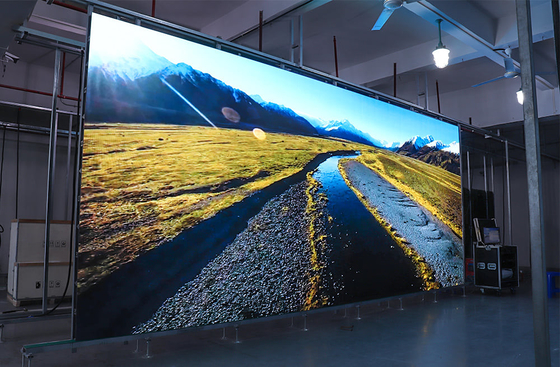

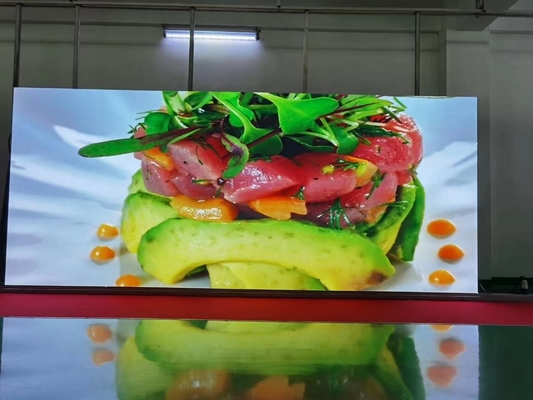

Our case

500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card 0500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card 1500x500mm Rental LED Screen Board P3.91 P4.81 Indoor Led Panel Wall Novastar Card 2

Application
TV shows ,DJ background , live evets , concerts , any stage use ,etc.
Product Effects
1,Stage led screen: easy to hanging install and fast assembly for the background video panel ,suitable to stage setting .
2,Conference & Board Rooms led screen : install in Conference & Board Rooms for meeting or stage background.
3.Stadiums & Gymnasiums led screen : install in the Stadiums & Gymnasiums to live sports event, as video wall panel



Small Pixel LED Screen for Clearer Pictures



The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.



Features:
1.
High refresh rate, >=3840HZ, which let the picture is vivider
2. All led panels have high strength corner protectors. Protect leds from damage during transportation and installation.
3. Convenient maintainance --- module front & rear service
4. Independent power supply box without wire
5. Support curve connection --- ±2.5°&5° concave & converse connection



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



Our Service



SCX LED is always focus on the competitive price,High quality and Best services to each customer,our core value is "Quality Assurance,Lifetime Service" and guarantee to the customers: No Compaint.

At the same time,SCX LED strives to benefit employees,shareholders and business partners.

We balance the short-term and long-term benefits to realize sustained development.



FAQ

1. What about the warranty?

We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.



2. How about the quality?

Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.



3. Can you offer a technical support?

We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. If any question, you are welcome to contact us! We're happy to serve you.
