Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO，CB |
| Model Number: | SMD P2 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case. |
| Delivery Time: | 7-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4600 sqm month |
| Refresh Rate: | 3840hz | Brightness: | 1200nit |
|---|---|---|---|
| Cabinet Size: | 512x512mm And 640x480mm | Led Lamp: | Kinglight |
| Control Card: | Huidu ，colorlight | Warranty: | 5years |
| High Light: | Kinglight p2 indoor led screen,p2 indoor led screen 256x128mm Module,SMD1515 front service led screen |
||
Features:
1.IC: By using high-end PWM chip ICN2053 to guarantee 16 gray-scale levels and refreshing of 3840HZ. Moreover, it can make the video more vivid and smooth.
2.Eliminating-shadow-line IC can completely clear off shadow in situations where current open or close.
3.By using Sn62.8/Pb36.8/Ag0.4 to improve stability of the soldered dots and reduce defects rate.
4.By using special PCB board to keep the uniformity of the module.
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 2 |
| Pixel matrix per panel | 128*64 |
| Pixel density (pixelsm) | 25000 |
| Cabinet Dimensions(L*W) mm | 512*512mm |
| Module Dimensions(L*W) mm | 256*128 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 7 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

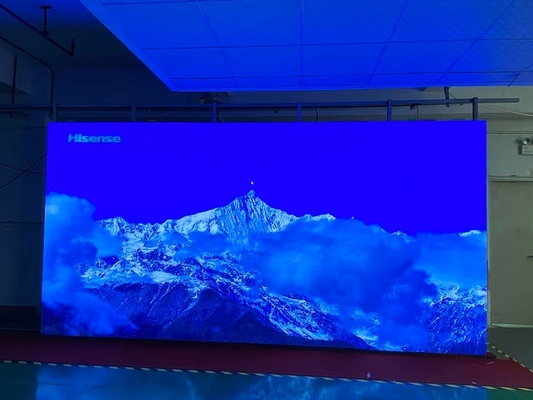

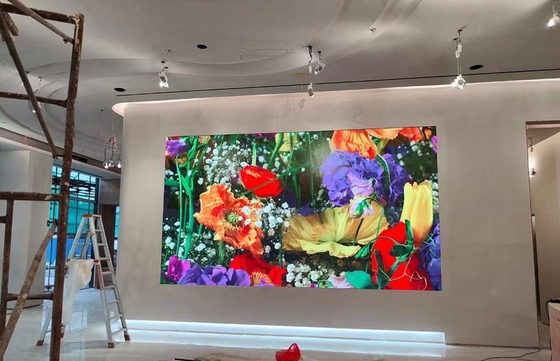

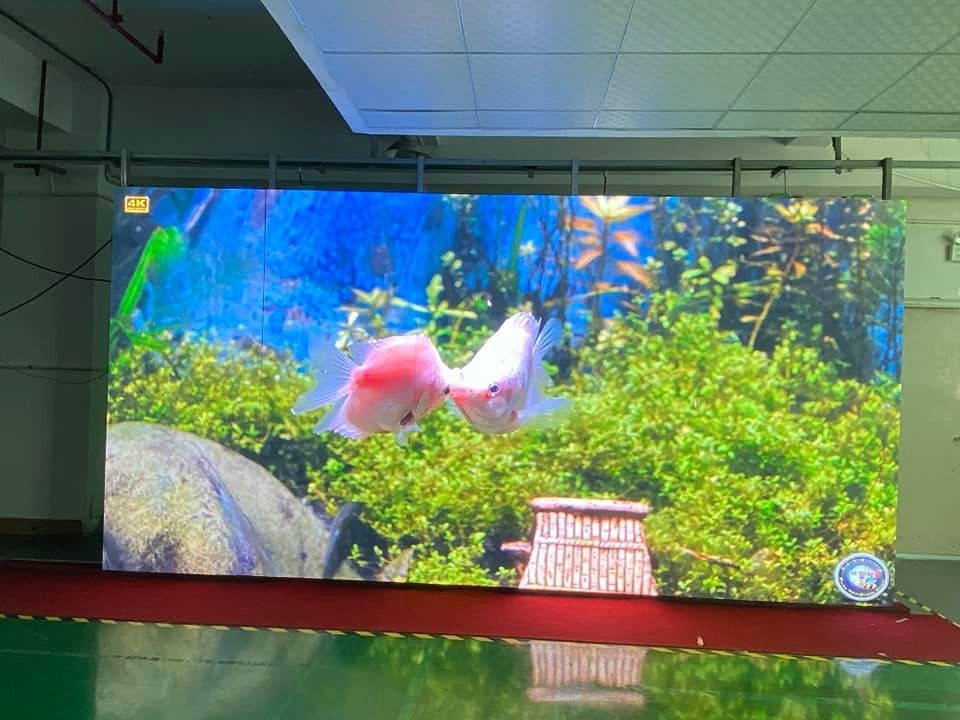

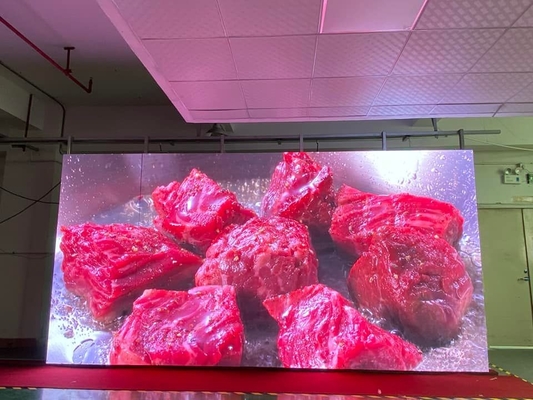

Our case
Our Service
1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving reduces the power consumption and prompts the stability,Simple modular design is low cost and easy to maintain.
3.Can undertake single point,single lamp maintenance,the cost is low.
4.Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
5.Due to its locating holes and 4 in bracket design,it can be used on indoor big screen.
6.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor close range viewing.
7.Temperature: −20℃----†50℃.Humidity:≤90%.MTBF:≥10,000 hours.Lifespan:≥50,000 hours.Defective Dot Rate: <0.0002.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the design firstly based on our sample.
Contact Person: BOSCO
Tel: +8615177780539
