Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE,ROHS,FCC,SASO,CB |
Model Number: | SCXK-SMD3.91 |
Minimum Order Quantity: | 16 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case ,flight case,it is up to you. |
Delivery Time: | 3-16 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 4200 sqm month |
Resolution: | 3840hz | Brightness: | 1300nit |
---|---|---|---|
Cabinet Size: | 500x500mm And 500x1000mm | Led Lamp: | Kinglight |
Control Cards: | Wifi,4g,gps | Warranty: | 4 Years |
High Light: | indoor rental led display 500X500MM,Fast Lock indoor rental led display,3840HZ rental led display |

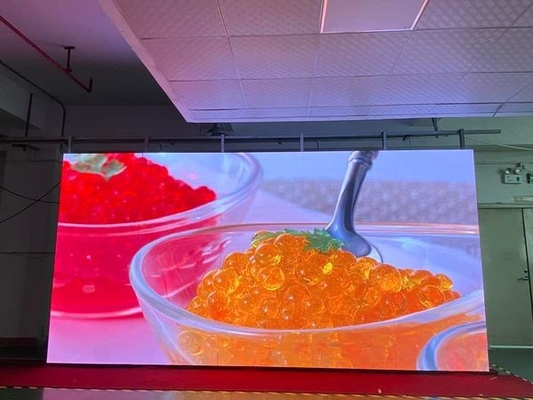

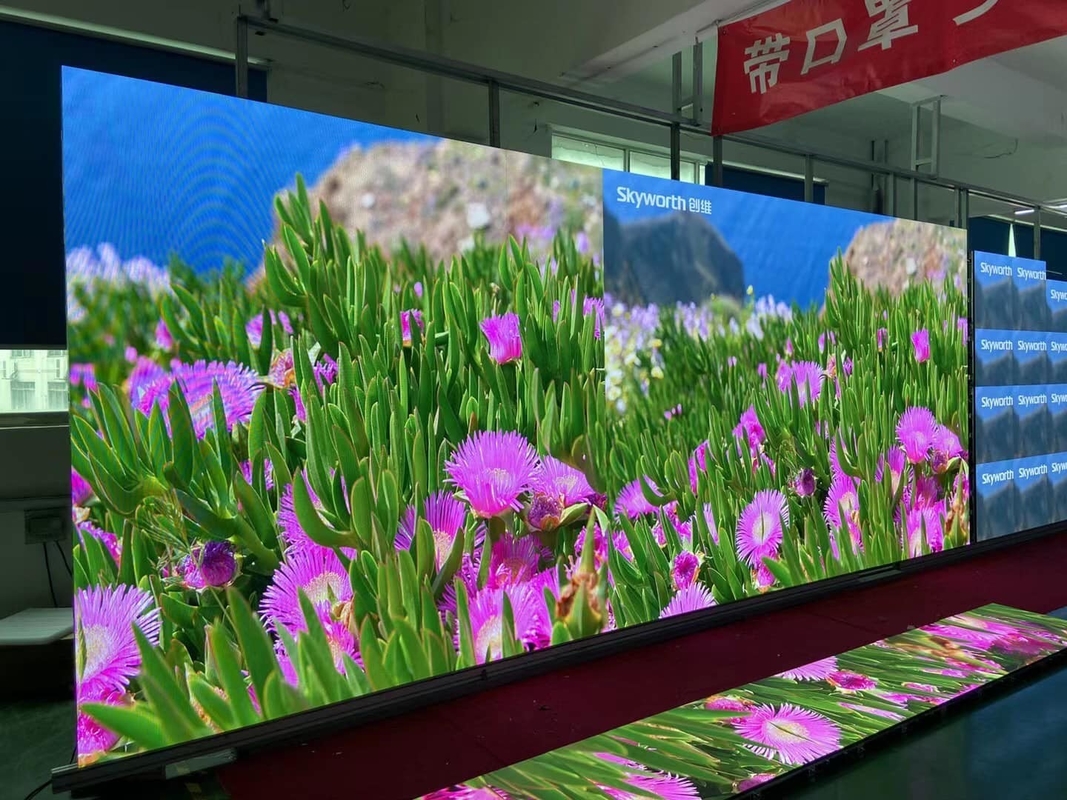

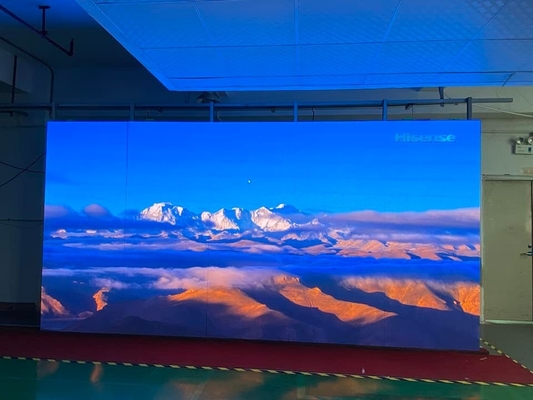

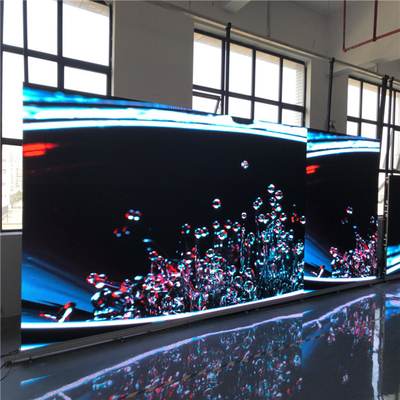

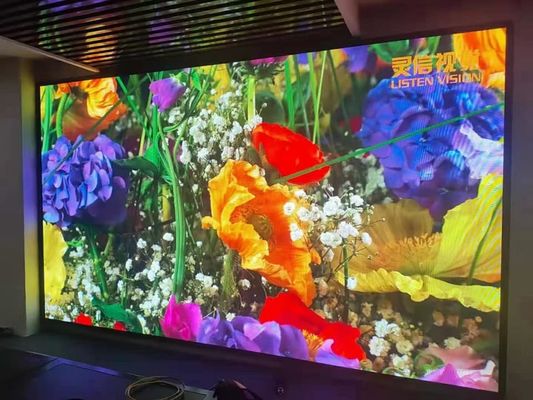

SCX LED Indoor rental p3.91 led video wall 500x500mm high refresh 3840Hz led screen panel
Advantages:
1. Ultra-light-single case weighs about 6kg, single can be single-handed, unusually installed;
2. Ultra-thin-boxes are molded from die-casting aluminum molding, high strength, strong toughness, high precision, not easy to deform, and is labor-saving;
3. High-precision - size is electromechanical processing to 0.1mm;
4. Compatible - new structural design, satisfying hoisting, stacking requirements,
Specifications
Parameter | Value |
Pixel Configuration | SMD2020 |
Pixel pitch (mm) | 3.91 |
Pixel matrix per panel | 64*64 |
Pixel density (pixelsm) | 65410 |
Cabinet Dimensions(L*W) mm | 500*500mm |
Module Dimensions(L*W) mm | 250*250 |
Panel material | Aluminum profile&iron&die-casting aluminum |
Cabinet weight (kg/panel) | 7 |
Colour grayscale (bit) | 12-16bit |
Gray scale per colour (level) | 16384 |
Refresh rate (hz) | 1920 |
Driving type | 1/16 |
Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
Brightness (nit) | 1200 |
Optimal horizontal viewing angle (degree) | 160 |
Optimal vertical viewing angle (degree | 160 |
Ac input voltage (v) | Ac100-240v |
Ac input frequency (hz) | 50/60 |
Ac input power maximum value (wm) | 625 |
Ac input power typical value (wm) | 150 |
Storage temperature (℃) | -40-60 |
Work temperature (℃) | 0-45 |
IP rating (front/rear) | IP40/IP21 |
Storage humidity (rh) | 10%-90% non -condensing |
Our case
Contact Person: BOSCO
Tel: +8615177780539
