HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen

HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen

  • HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen
  • HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen
  • HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen
  • HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen
  • HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen
HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P2.5
Payment & Shipping Terms:
Minimum Order Quantity: 16 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 5-12 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5300 sqm month
Contact Now
Detailed Product Description
Cabinet Size: 640x640mm ,640x480mm,480x480mm Resolution: 3840hz
Led Lamp: Nationstar Control Card: Novastar
Warranty: 3 Years Brightness: 1200cd
High Light:

640X640mm Indoor rental led display

,

Indoor rental led display P2.5

,

Aluminum Cabinet Indoor rental led screen

SCX LED High-definition P2.5 640x640mm indoor LED display screen panel withfixed video wall advertising LED



About full color led screen
(1) The color performance of the led display is excellent. It can attract people's attention at first glance.
(2) The led screen has much longer lifespan than other advertising types in the same working environment.
(3) Energy saving and low consumption and environmentally friendly.
(4) It is easy to install.

About p2.5 rental screen
(1)
The 640*640mm cabinet can be matched with 320*160mm led module.

(2) There are 480*480mm die-casting cabinet for 240*240mm p2.5 led module


♦ Product specification

indoor SMD P2.5
Lamp size 2121
Resolution/mm 2.5
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 160000/m²
Module resolution 64x64
Module size/mm 240x120
View distance ≥0.5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/4
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

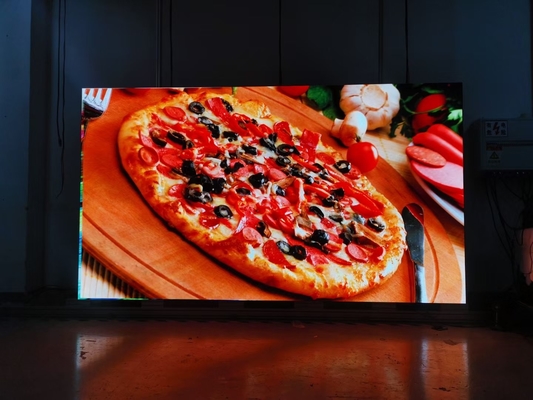

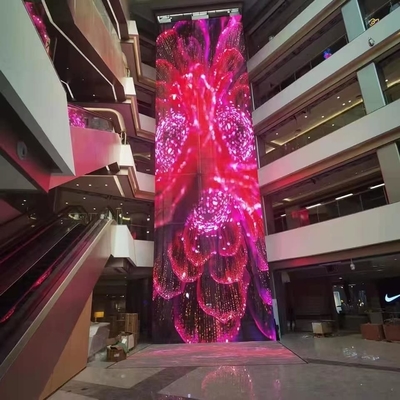

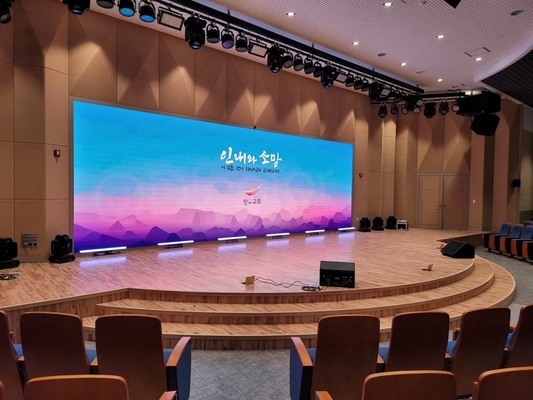

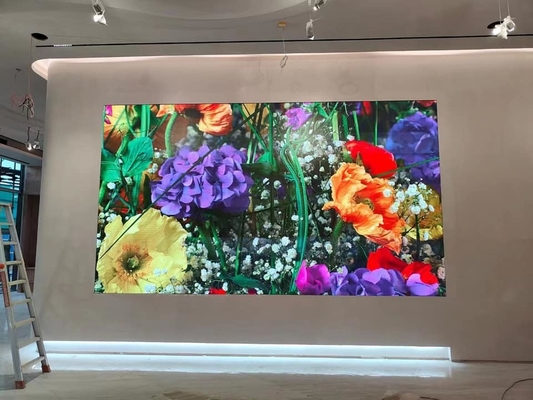

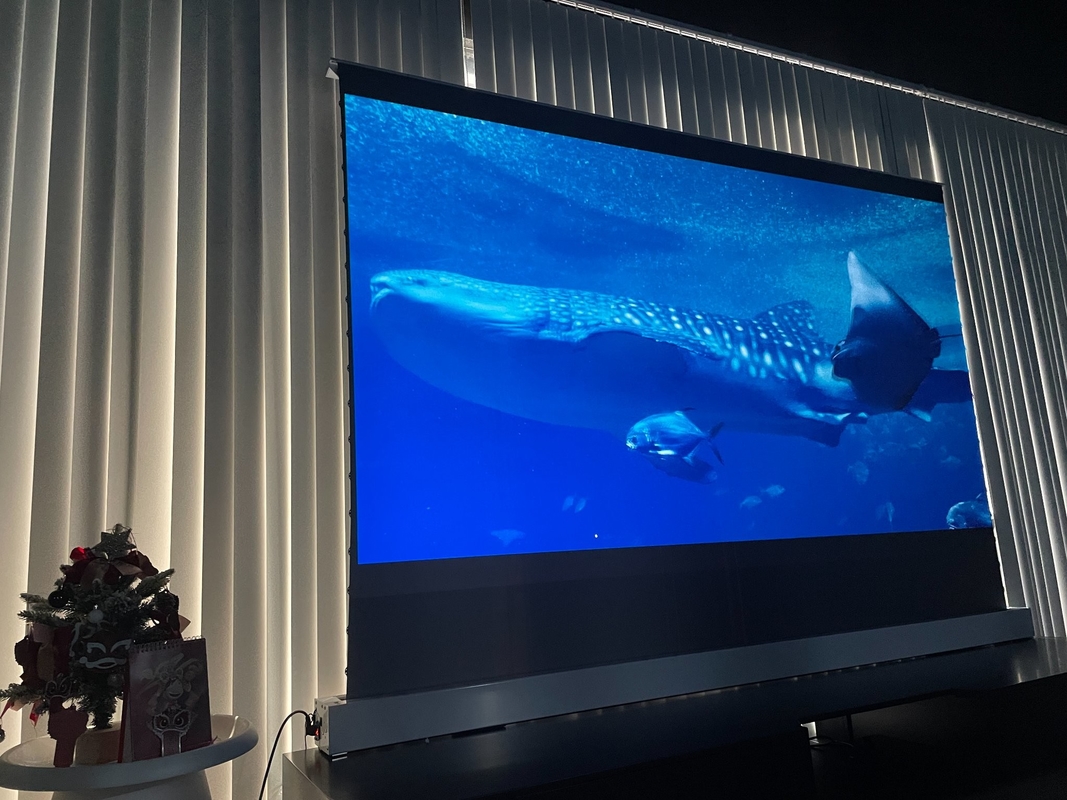

Our case

HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen 0HD Indoor Rental LED Display 640X640mm Die Casting Aluminum Cabinet P2.5 LED Screen 1



♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.



1. After-sales service:

1) Service principles: response in time, solve problems as soon as possible and ensure the use.

2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4) Under normal use and storage, Our Company will be responsible for the equipment.



2. Pre-sales service:

1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
