Indoor Full Color LED Display
Created with Pixso.

High Brightness P2.5 Indoor Full Color LED Display for Eye-catching and Impactful Advertising and Events

High Brightness P2.5 Indoor Full Color LED Display for Eye-catching and Impactful Advertising and Events

Brand Name: SCXK
Model Number: P2.5
MOQ: 5 sqm
Price: negotation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5200 sqm per month
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS/FCC/ISO/UL
Brightness:
1200cd
Led Lamp:
Kinglight Led Lamp
Control Card:
Colorlight,linsn
Resolution:
3840hz
Cabinet Size:
640x640mm,480x480mm,640x480mm
Warranty:
5 Years
Visual Angle:
160°(H)140°(V)
Installation:
Wall Mount, Hung
Rgb:
1R1G1B
Led Parameter:
R:625-630nm
Ip Degree:
IP43
Viewing Distance:
3-20m
Curved:
Yes
Warranty:
3~5 Years
Average Power Consumption:
300W/sqm
Packaging Details:
plywood case, flight case, you choose what you like.
Highlight:

P 2.5 Indoor Full Color LED Display

,

1200cd Indoor Full Color LED Display

,

kinglight lamp p 2.5 led display

Product Description

                                                      SCX LED   640mm*640mm Indoor Rental Led Cabinet P2.5 Led Display Screen

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.



Module Parameter:

Pixel pitch 2.5mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD2121
Module size 160*160mm
Module resolution 64*64dots

Cabinet Parameter:

Cabinet size 480*480mm
Cabinet material die-casting aluminum cabinet
Cabinet weight 9.73kg+/-0.05kg
Cabinet resolution 192*192dots
Ingress protection Front/Rear IP65/IP54

Whole Screen Parameter:

Pixel density 160000dots/
Brightness ≥1200cd/
Viewing angle H≥120° V≥120°
Min.viewing distance 3m
Max.power consumption 900W/
Avg.power consumption 400 W/
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥60frames/s
Refresh rate ≥60Hz
MTBF ≥10000 hours
Lifespan ≥100000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation

Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way

Computer, video-synchronous, real-time, off-line, wireless, internet etc.

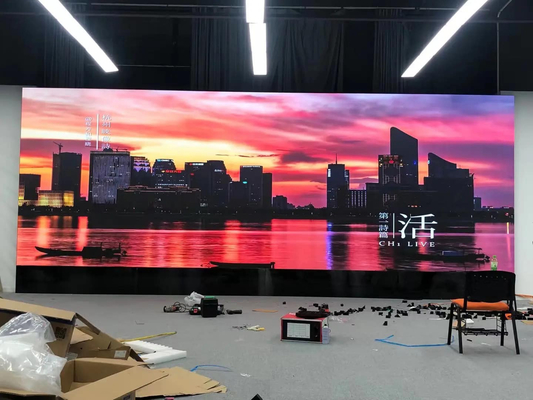

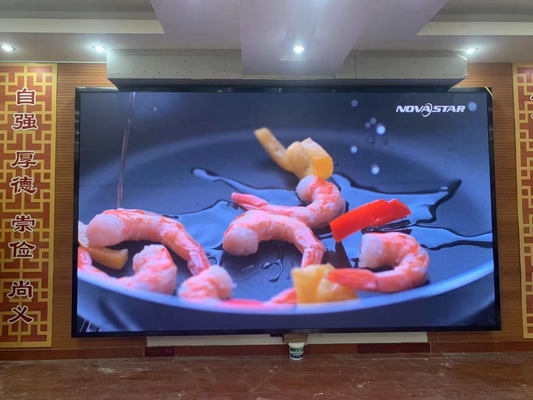

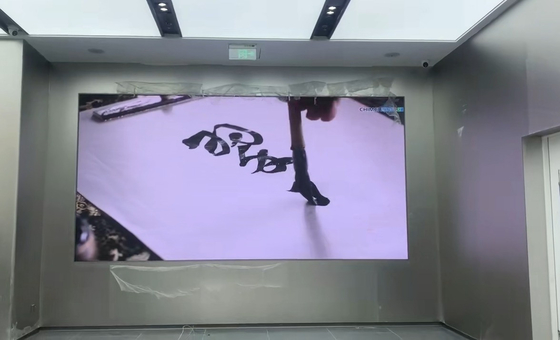

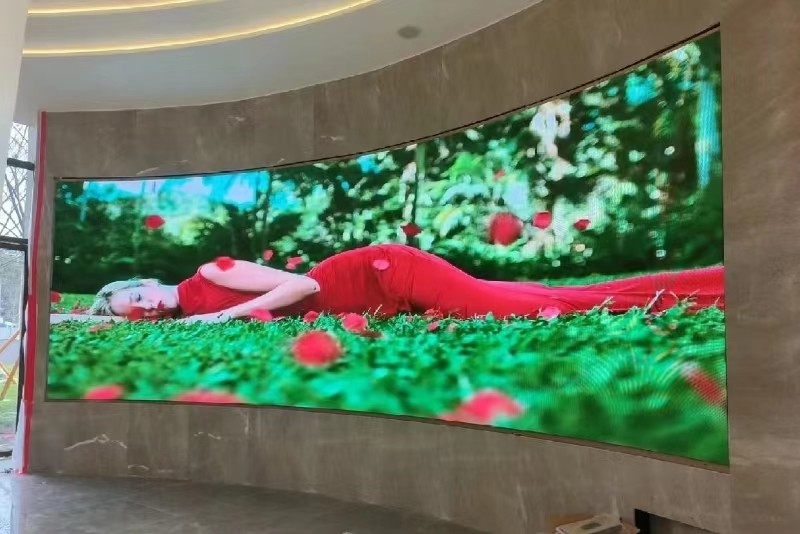

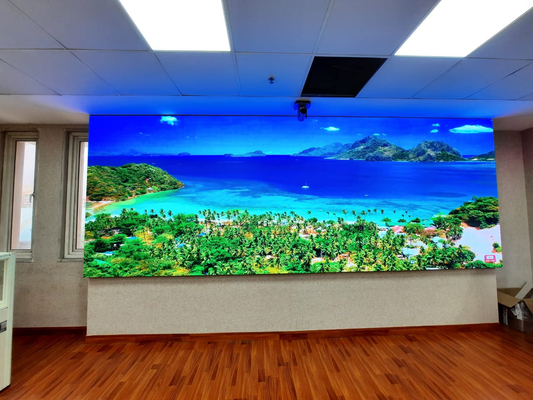

Our  case



High Brightness P2.5 Indoor Full Color LED Display for Eye-catching and Impactful Advertising and Events 0High Brightness P2.5 Indoor Full Color LED Display for Eye-catching and Impactful Advertising and Events 1

Our Services:
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty time.



FAQ

Q1: When is the delivery time?
A1: we will accomplish manufacturing within 18-25 days after receiving the deposit(Exclude time of weekend). If you need urgent, please kindly let me know, in guaranteed of quality. we will try our best to make faster.
Q2: What is the minimum order quantity
A2: MOQ is 1 panel,You are warmly welcome to try 1 or 2 panels for sample, but usually clients will order 8 panels for checking quality and compatibility.
Q3: What's the Payment terms?
A3: 30% deposit to start production, and 70% balance to be clear before delivery.
Q4: Where is it used for?
A4: indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q5: what is the Delivery guarantee?
A5: Guarantee time: 2 years. Within 2 years, if any part failed, we send new parts or repair for free, we will undertake shipping cost from your city to China and from China to your city. After 2 years, we only charge cost price for parts and repairements, and you need to pay shipping cost go and back.
Q6: What's the controlling system?
A6: Control system could be Linsn, Nova-star, Color light...Usually client use Linsn for fixed installation led screens, and Nova-star system for rental screens.
