P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter LED Display

P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter LED Display

P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter LED Display
P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter LED Display
P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter LED Display
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: p8
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter Led Display Pixel: 8mm
IP Grade: IP65/IP54 Led Chip: Epistar
Pixel Density:: 15625pixels /m2 Viewing Angle Degree: 120 Degree, 60degree
High Light:

Exterior Perimeter Football Stadium LED Display

,

P8 Football Stadium LED display

,

IP65 sports perimeter led display

P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display

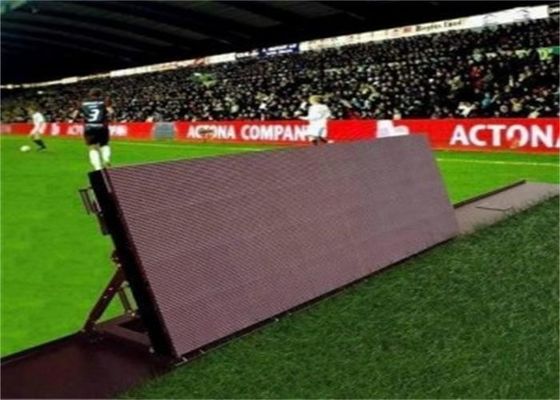

♦ Soft top protect:



1. The angle of the cabinet is adjustable; Bracket folds up available;

2. Easy for installation and disassembly;

3. High brightness and be adjustable, meets the need of the changing requirement of customer in environments



High Brightness with Low Luminous Decay



MP high bright led sign in stadium adopted high quality LED to make sure the brightness always in a high level, FO series can produce crystal clear images in virtually any lighting conditions, even in the sun directly.



♦ Technical specification



outdoor  SMD P8
Resolution/mm 8
Pixel configuration 1R1G1B
Pixel density/pixels/m² 15625/m²
Module resolution 32x16
Module size/mm 256x128
View distance 7-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


♦ Production process



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

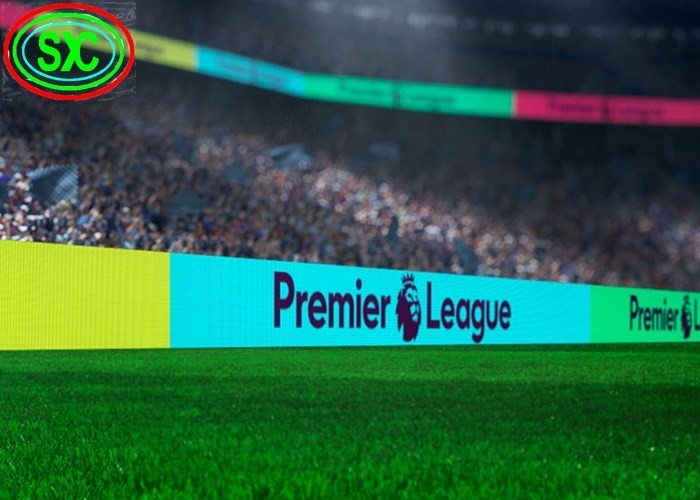

♦ Applications

 P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter LED Display 0
