Outdoor Full p10 7000 brightness Color LED Display with Wide Viewing Distance Outdoor billboard design

Name: Outdoor Full p10 7000 brightness Color LED Display with Wide Viewing Distance Outdoor billboard design
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: SMD P10
Price: 10000 USD
Availability: InStock

Brand Name:	SCXK
Model Number:	SMD P10
MOQ:	6 sqm
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3200 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CB/CE/ROHS/FCC/ISO/UL

Brightness:

7500 Nit

Cabinet:

Iron Cabinet

Resolution:

3840hz

Led Lamp:

Kinglight

Control Card:

Novastar ，linsn

Warranty:

5 Years

Software:

Linsn/Nova

Driving Mode:

1/4 Scan

Ingress Protection:

IP65 Or Higher

Led Chip:

Epistar,Nationstar

Pixel Configuaration:

1R1G1B

Packaging Details:

wooden case，flight case，it is up to you.

Highlight:

7500 nit Outdoor Rental LED Display

SMD P10 Outdoor Rental LED Display

iron cabinet P10 RGB LED module

Product Description

Product Description:

(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

outdoor SMD P10

Resolution/mm

Pixel configuration

1R1G1B

Pixel density/pixels/m²

10000/m²

Module resolution

32x16

Module size/mm

320x160mm

View distance

5-500m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>8000cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

140(degrees)

Vertical view angle

140(degrees)

Signal Process bit

10 or 16bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:2km

Driving mode

Constant driving current

Scanning mode

(1/4)

Frame rate

60Hz

Refresh frequency

>4200Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃

Maximum power:/㎡

<950W

Average power:/㎡

<350W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

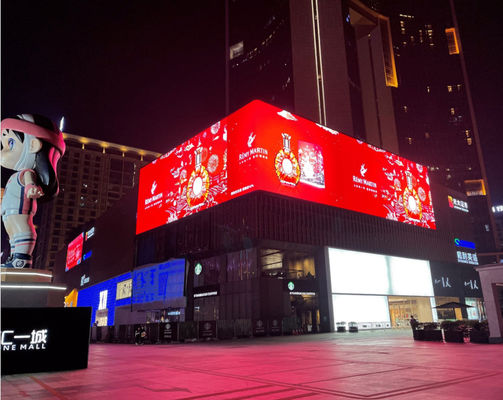

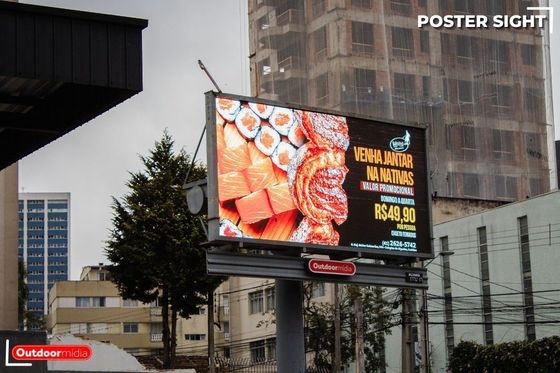

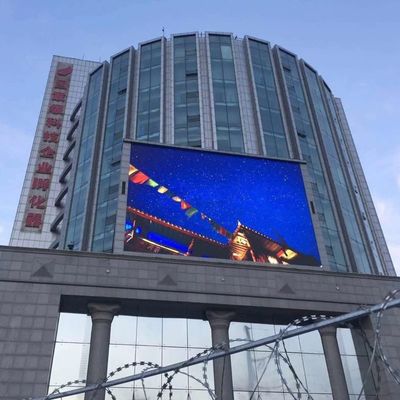

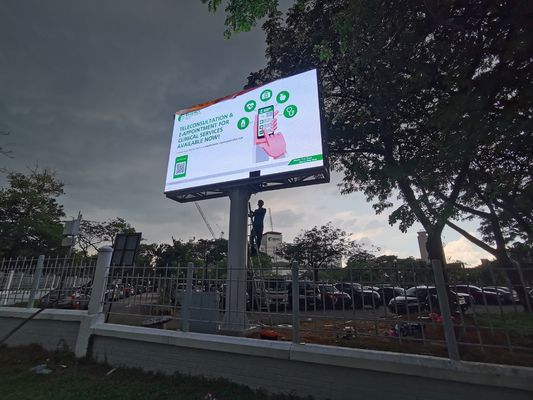

Our case

Outdoor Full p10 7000 brightness Color LED Display with Wide Viewing Distance Outdoor billboard design 0

Outdoor Full p10 7000 brightness Color LED Display with Wide Viewing Distance Outdoor billboard design 1

♦ Production process

1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why choose us

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

FAQ

Q1. How can we guarantee quality?

A1.We use good raw material for all parts and we aging at least 72 hours before shipping.
Besides, we accept Trade Assurance Order, if quality is not good, we refund to you.

Q2. What services can we provide?

A2. Delivery Terms: FOB,CIF,EXW, DDU, DDP.
Payment Currency:USD,EUR,HKD,CNY.
Payment Type: T/T,PayPal,Western Union,Cash and Credit Card.
Language Spoken:English,Chinese,Spanish,Japanese

Q3. What refresh rateit is?

A3. Refresh rate>3,840Hz
