Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P10 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 5-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 SQM month |
| Brightness: | 6500nit | Resolution: | 3840hz |
|---|---|---|---|
| Product Name: | Waterproof Outdoor Full Color P10 Led Frixed Screen | Led Lamp: | Nationstar Led Lamp |
| Control Card: | Huidu ，colorlight | Warranty: | 3 Year |
| High Light: | P10 Fixed LED Display,6500nit Fixed LED Display,SMD Advertising Outdoor LED Screen |
||
♦ Product Description
About fixed installation screen :
(1) High brightness SMD LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
(2) With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
(3) Weatherproof design, completely outdoor use.
(4) Easy for assembling and connection with the connector added.
(5) High color uniformity and clear image can bring you a vivid audio visual effect.
(6) The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
♦ Technical specification
| outdoor SMD P10 | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 16x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | 4-250m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

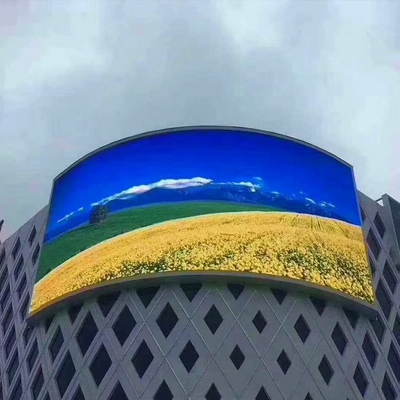

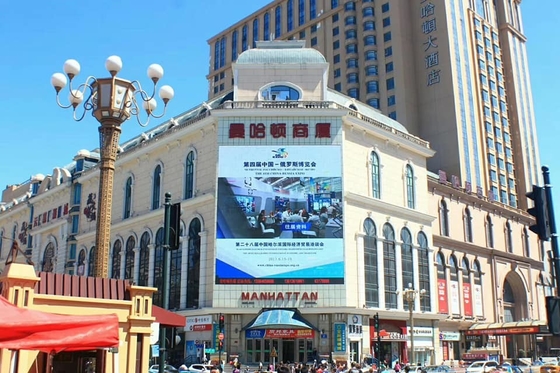

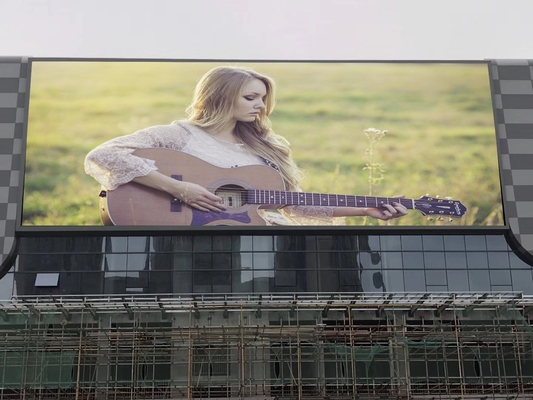

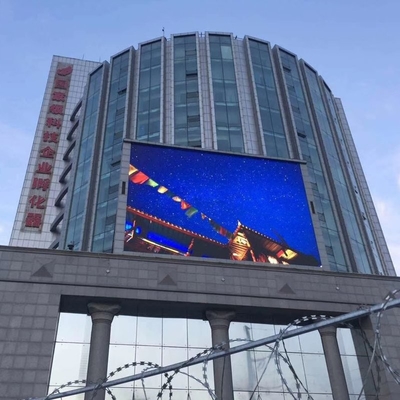

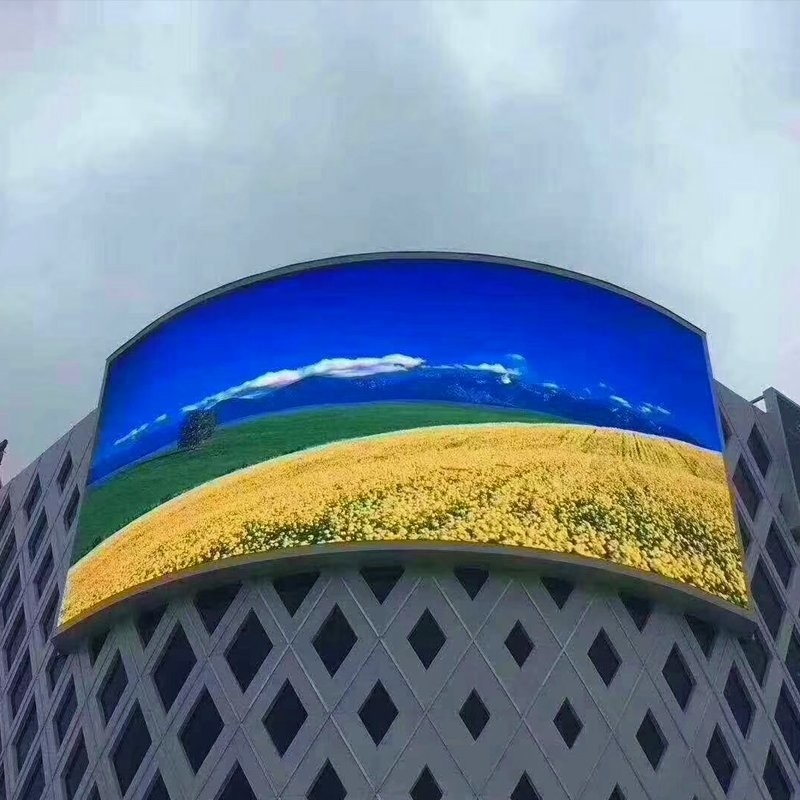

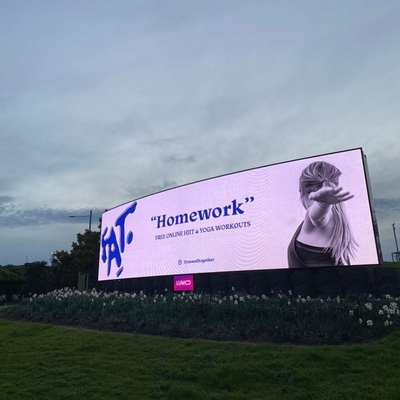

Our case
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
FAQ
Q: Are you trading company or manufacturer ?
Contact Person: BOSCO
Tel: +8615177780539
