P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm

P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm

  • P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm
  • P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm
  • P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm
  • P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm
  • P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm
P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE,ROHS,FCC,SASO,CB
Model Number: SCXK-SMD3.91
Payment & Shipping Terms:
Minimum Order Quantity: 15 sqm
Price: negotiation
Packaging Details: wooden case ,flight case,it is up to you.
Delivery Time: 4-16 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Contact Now
Detailed Product Description
Product Name: Indoor Full Color P3.91 Rental Event Led Screen Resolution: 3840hz
Control Card: Novastar ,linsn Led Lamp: Kinglight Led Lamp
Warranty: 5 Years Brightness: 1300nit
High Light:

P3.91 LED Wall Display Screen

,

kinglight lamp LED Wall Display Screen

,

500X500mm led advertising display screen

       Indoor Rental Led Display P3.91 500x500mm Indoor LED digital music display high quality video projector screen



P3.91 indoor full color led display cabinet. size:500X500mm.
Not includes the controller system and package.

1.Controller: LINSN,NOVASTAR,etc.
2.Fully Customizable LED Video Wall Systems
3. Three.-Year Signature Warranty
4.Unlimited After-Sales Support by Phone, Email and Temviwer
5.Package: 1-2pcs cabinets---------Carton case.
Beyond 3pcs---------------wooden case/flight case

Advantage:

Support front installation and maintenanace:

After you order,we will provide you the rear service,if you need front service,please
inform us in advance.

Good flatness for all the led panels:

With an advanced CNC technology.Each panel could be guaranteed to adopt qualified mold processing to reduce the error in an
infinite approach to zero.





Specifications


Parameter Value
Pixel Configuration SMD2020
Pixel pitch (mm) 3.91
Pixel matrix per panel 64*64
Pixel density (pixelsm) 65410
Cabinet Dimensions(L*W) mm 500*500mm
Module Dimensions(L*W) mm 250*250
Panel material Aluminum profile&iron&die-casting aluminum
Cabinet weight (kg/panel) 7
Colour grayscale (bit) 12-16bit
Gray scale per colour (level) 16384
Refresh rate (hz) 1920
Driving type 1/16
Signal transmission distance (m) cats cable:<100m
single mode fiber:<10km
Brightness (nit) 1200
Optimal horizontal viewing angle (degree) 160
Optimal vertical viewing angle (degree 160
Ac input voltage (v) Ac100-240v
Ac input frequency (hz) 50/60
Ac input power maximum value (wm) 625
Ac input power typical value (wm) 150
Storage temperature (℃) -40-60
Work temperature (℃) 0-45
IP rating (front/rear) IP40/IP21
Storage humidity (rh) 10%-90% non -condensing

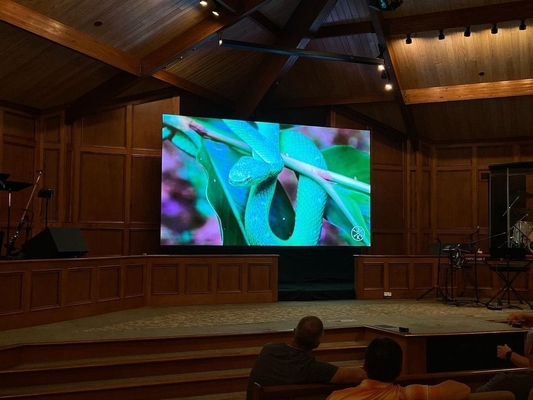

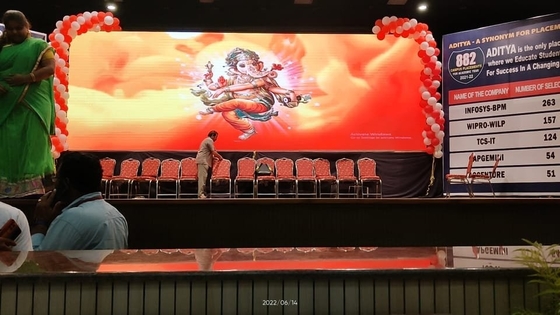

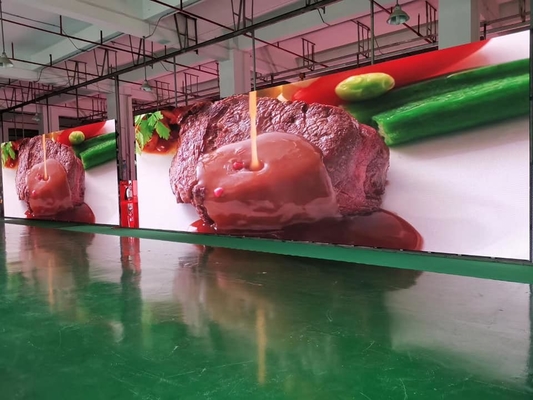

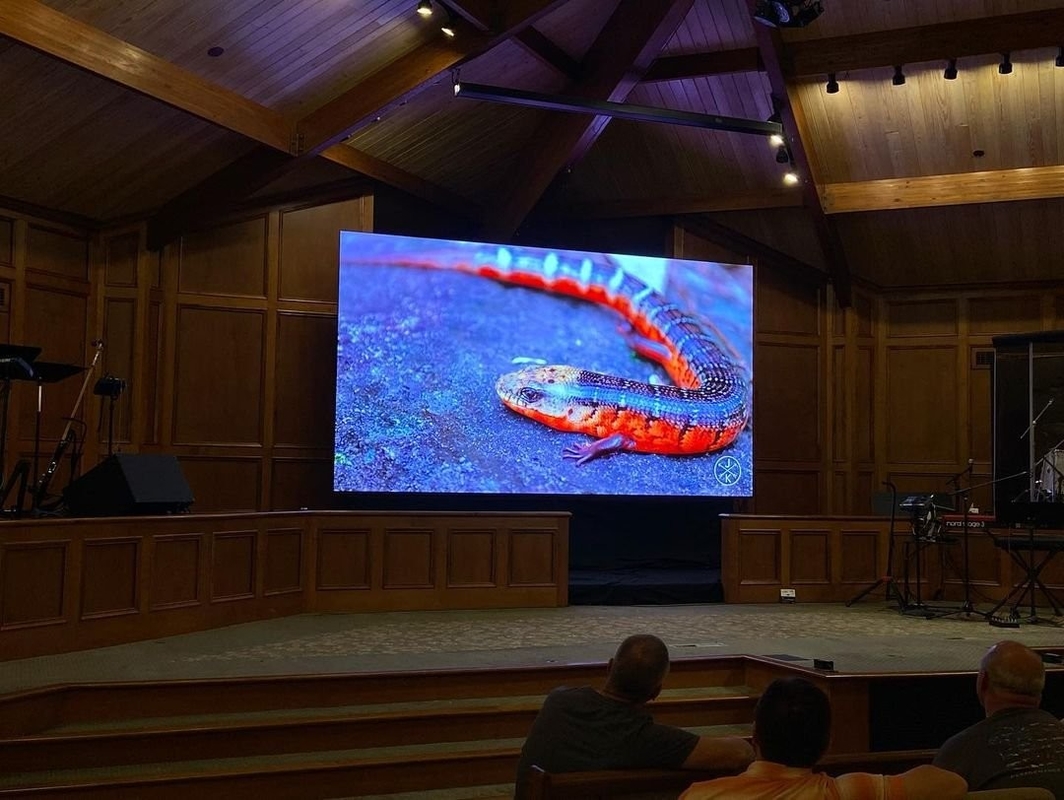

Our case

P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm 0P3.91 LED Wall Display Screen Portable Indoor LED Advertising Display Screen 500X500mm 1



Advantage

1.Thin and light design,one person can handle the installation;

2. 500x500mm big panel, speedily and easily mounting, perfect 16:9 colorful image;

3.Ultra thin body, Die-casting aluminum structure, high-accuracy connection, error<0.1mm;

4.Natural aluminum heat conduction design (no-cooling fan),quiet world.

5. Application in concert, exhibition, wedding, conference, meeting, annual party, DJ bar and other events.



FAQ

Q1. The display will come to me in panel? How to instal them to be one whole led screen?
Yes, but it's very easy. We will provide structure drawing, installation diagram and the data connect diagram. and, we also can arrange engineer to your site if you need.

Q2. Can we make any size we want? And What's the best size of led screen?

Yes, we can design any size according to your size requirement. Normally, advertising ,stage led screen, The best aspect ratio of LED display are W16:H9 or W4:H3

Q3. What's the function of video processor?

It can tranfter the video source to make the screen performance more clear.
And, normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if want play other kind video source, such as HDMI, SDI,VGA signal port. that will need.
Or, the HD led screen, its resolution is high. need more than 2pcs sending card, also need video processor.
Q4. What's the difference between back service and front service led screen ?
Back service , that mean need enough space behind of the led screen, so that workder can do the instalaltion or maintenance.
Front servie, worker can do installaion and maintenance from front directly. very convenience, and save space. especially is that led screen will fixed on the wall.
