Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE ROHS FCC |
| Model Number: | P3.91 curved led display |
| Minimum Order Quantity: | negotiate |
|---|---|
| Price: | negotiate |
| Packaging Details: | wooden/flight cases |
| Delivery Time: | 5-10days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 2000PCS/month |
| Pixel Density: | 65410cd/m2 | Module Size: | 250*250mm |
|---|---|---|---|
| Panel Size: | 500*1000mm | Water Proof: | IP65 |
| Power Supply: | 5V40A | Refresh Rate: | 3840Hz /1920Hz |
| High Light: | IP65 Curved Led TV Screen,500x1000mm Curved Led TV Screen,Arc Locks RGB LED Display |
||

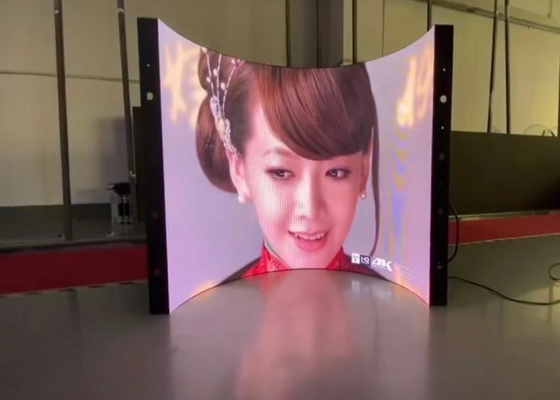

Outdoor Events P3.91 500*1000mm Panel Size With Arc Locks Curved Led TV Screen
A flexible LED screen is made up of LED pixels pitched on a pliable material like rubber or PCB. It is insulated using a flexible transparent material on both sides to protect the LED circuit from getting damaged. This structure makes flexible LED screens highly resilient. They can be contorted during installation and still deliver crisp images.
A flexible video wall consists of many foldable LED screens mounted together. It can take different shapes depending on how the individual screens are arranged. The flexible LED screen display panels are joined using magnets along their borderlines to create a seamless video wall display.
You can see the module is flexible and soft. And it can make different types.
In terms of installation, flexible LED video walls can be mounted in almost any design. Other advantages of this type of LED display include:
Highly customizable in terms of size, shape, and pixel pitch
Easy to maintain as the LED circuits are easily accessible
Mobility- a flexible LED video wall can easily be mounted, dismantled, and folded for storage or transportation
Product specification
| SMD P3.91 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 64510/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250x250 | |||||||||||||
| View distance | ≥2m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% |
|||||||||||||
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Company Information
Shenzhen SCX LED Technology Ltd.is a professional LED display manufacturer. Now the products have been sold to over 100 countries and regions, and have a great performance in many activities.
