Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE FCC ROHS |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | $740/m2 |
| Packaging Details: | wooden/flight cases |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, Western Union, T/T, D/P, D/A |
| Supply Ability: | 5000pcs/month |
| Panel Size: | 500*1000mm | LED Lamp: | SMD2121 |
|---|---|---|---|
| Installation: | Floor | Brightness: | 4000cd/m2 |
| Maintenance: | Front Service With Magnet Fixed | Scan Mode: | 1/16scan |
| High Light: | 4000cd/m2 LED Floor Screen,IP65 LED Floor Screen,P3.91 LED Dance Floor |
||
Best-selling Smart Digital Interactive Led Display Dance Floor P3.91for Indoor Parties
P3.91 outdoor led floor :
LED dance floor stands out with its unique competitive advantages. The extremely short response time, high stability, and wide viewing angle entitle this interactive LED floor screen to provide customers with an outstanding interactive experience. For its safety considerations, the product has an excellent load-bearing capacity that even when the load capacity exceeds 2000kg/sqm, its load-bearing capacity can maintain a high level.
No delay in interaction effects
| SMD P3.91 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 65410/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250mmx250mm | |||||||||||||
| View distance | ≥2m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% |
|||||||||||||

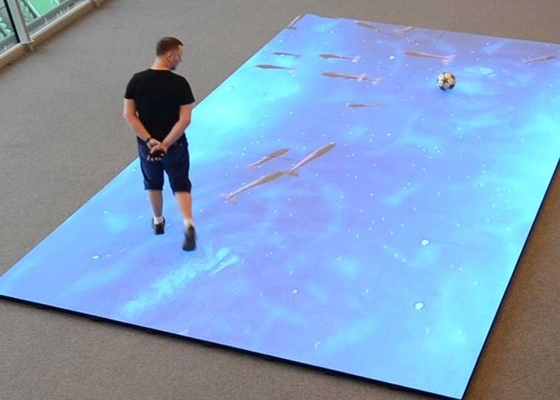

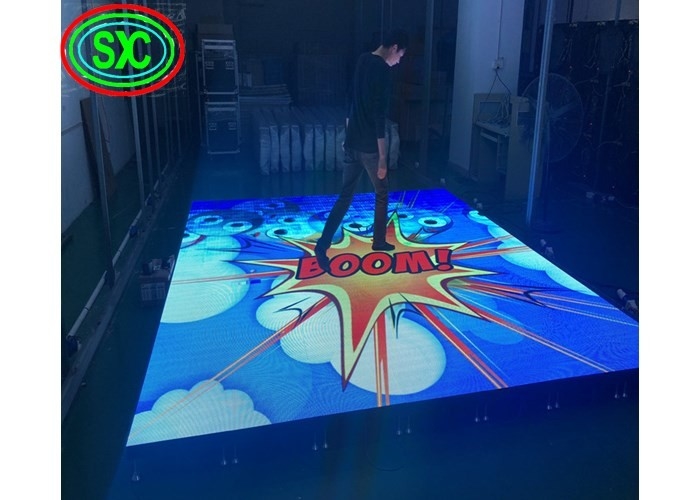

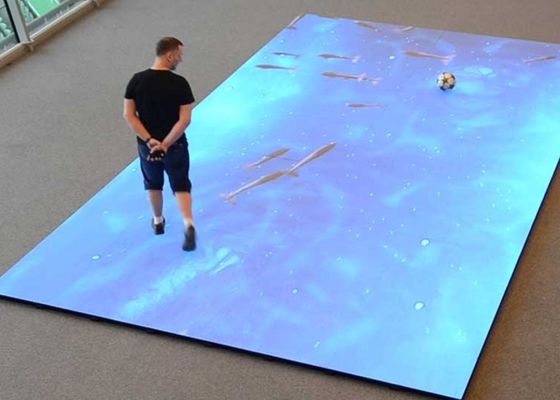

LED Floor – a surface you can walk on, covered with light-emitting diodes able to display any video content |
|
Company Information
Shenzhen SCX LED Technology Ltd.is a professional LED display manufacturer. Now the products have been sold to over 100 countries and regions, and have a great performance in many activities.
We have about 500 employees and the factory is over 1,500 square meters.
Here are the photos of our company.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
We can offer you wooden or flight cases. You can also decide to transport by air or by ship.
