Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P2 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case or wooden case |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |
| Product Name: | P2 Indoor Installation Led Display | Module Size(W * H): | 320mm*160mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 2mm | Resolution/sqm: | 250000 |
| Led Lamp: | Kinglight | Chip: | Epistar |
| Cabinet Size: | 960x960mm | ||
| Highlight: | DC4.2V P2 Indoor Led Display,DC4.2V High Definition Led Display,1000cd P2 Indoor Led Display |
||

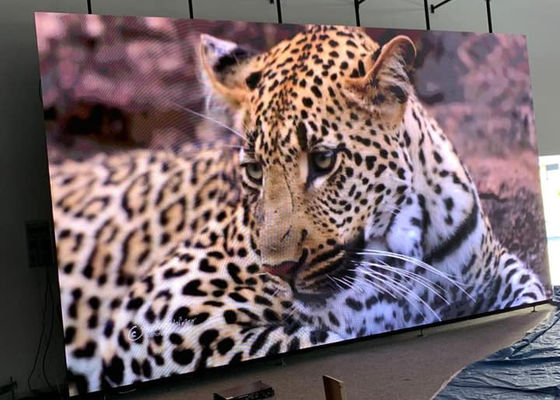

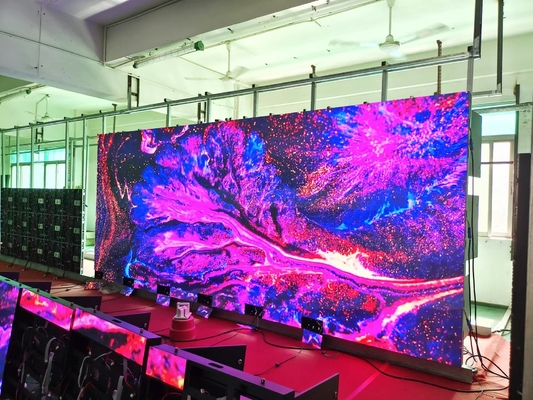

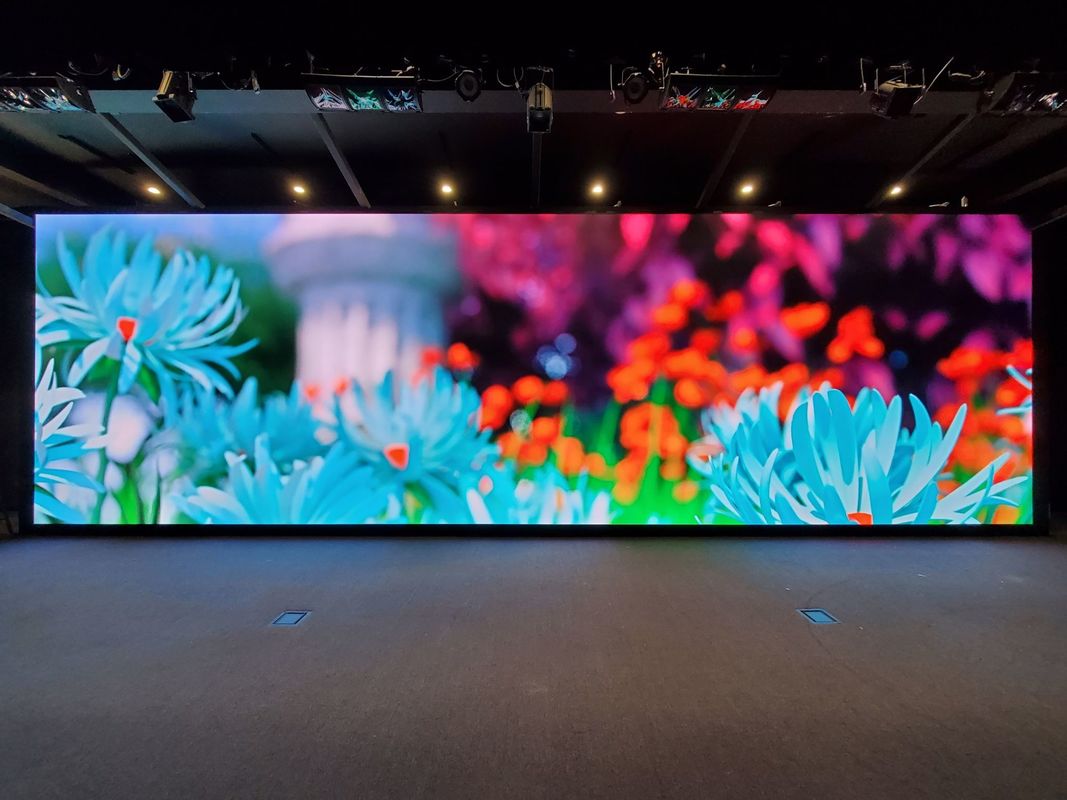

High Definition DC4.2V P2 Indoor Led Display 4K TV Panel Video Wall
High Definition P2 Indoor Led Display Led 4K Tv Panel Led video wall
We have our outstanding research and develop department and after-sales service workers, the separately design ability. Our product mainly included the RGB led display, outdoor full color led display, indoor full color led display, curtain led display, advertising led display, stage led display, led billboard, bi color led display, high quality and defintion pantalla led para publicidad ingle color led display, rental led display, stadium led display, led display module, car led sign display, hanging led display, mobile truck led display.
Features of HD high brightness P2 LED Display Screen,High definition LED panel:
1.High quality LED chip and high anti-static electricity capacity.
2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3.The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4.Ultra high brightness,low attenuation,high reliability and weather ability.
5.High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6.High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Parameter of HD high brightness P2 LED Display Screen,High definition LED panel:
| Pixel Pitch | 2mm |
| Module Resolution(W*H) | 160dots(W)*80dots(H) |
| Pixel Configuration | 1R1G1B(3 in 1) |
| LED Encapsulation | Black SMD2121 |
| Pixel Density | 250000Pixel /m2 |
| Driving Method | 1/40 Scan |
| Refresh Frequency | ≥2880Hz |
| Driver IC | Special constant current IC with high refresh rate & high gray scale |
| Grey Scale | 14Bit(depending on the system and IC configuration) |
| Cabinet Size | 960*960mm |
| White balance Brightness | ≥1000cd/ m2 |
| Color Temperature | 8000K±500(adjustable) |
| Viewing Angle | Horizontal 140°Vetical 120° |
| Optimal Viewing Distance | >2m |
| Working Voltage | AC 220V/110V±10% |
| Module voltage | DC4.2V |
| Max Power Consumption | 1000W/sqm |
| Avg. Power Consumption | 380W/sqm |
| Lifetime | 50000 hours |
| Operating Temperature | –10~ 65 |
| Net weight | 8.5Kg/pcs |
