Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCX |
| Certification: | CB,CE UL |
| Model Number: | Indoor p3.91 |
| Minimum Order Quantity: | 5SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case,wooden case |
| Delivery Time: | 5-11 WORKING DAYS |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2600 sqm month |
| Leds: | Nationstar Led | Controller: | Novastat，linsn，colorlight |
|---|---|---|---|
| Brightness: | 1300nit | Cabinet Size: | 500x500mm And 500x1000mm |
| Curved: | Support Curved In And Out | Warranty: | 5years |
| High Light: | 3840hz Indoor Full Color LED Display,3840hz Large LED Screen,500x500mm High Definition LED Display |
||
High Definition 3840hz Indoor Full Color LED Display Stage Backdrop
Indoor rental p3.91 led video wall 500x500mm high refresh 3840Hz led screen panel
1.Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 500mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.
2.High-precision die-cast aluminum cabinet, seamless unit box.
3.New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.
4.Total hard connection ,easy to take off the power supply and receiving card.
5.Module with touchable back screw , uncessary to prepare tool, easy to fix and take off modules by hand.
6.Corners with small protectors, protect pixel while moving.
Module Parameter:
| Pixel pitch | 3.91mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 250x250mm |
| Module weight | 0.35kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 8pcs |
Cabinet Parameter:
| Cabinet size | 500x1000mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 11.5kg |
| Cabinet resolution | 128x256 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 65410dots/m² |
| Brightness | ≥6500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3.9m |
| Max.power consumption | 890W/m² |
| Avg.power consumption | 330W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000 hours |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc. |

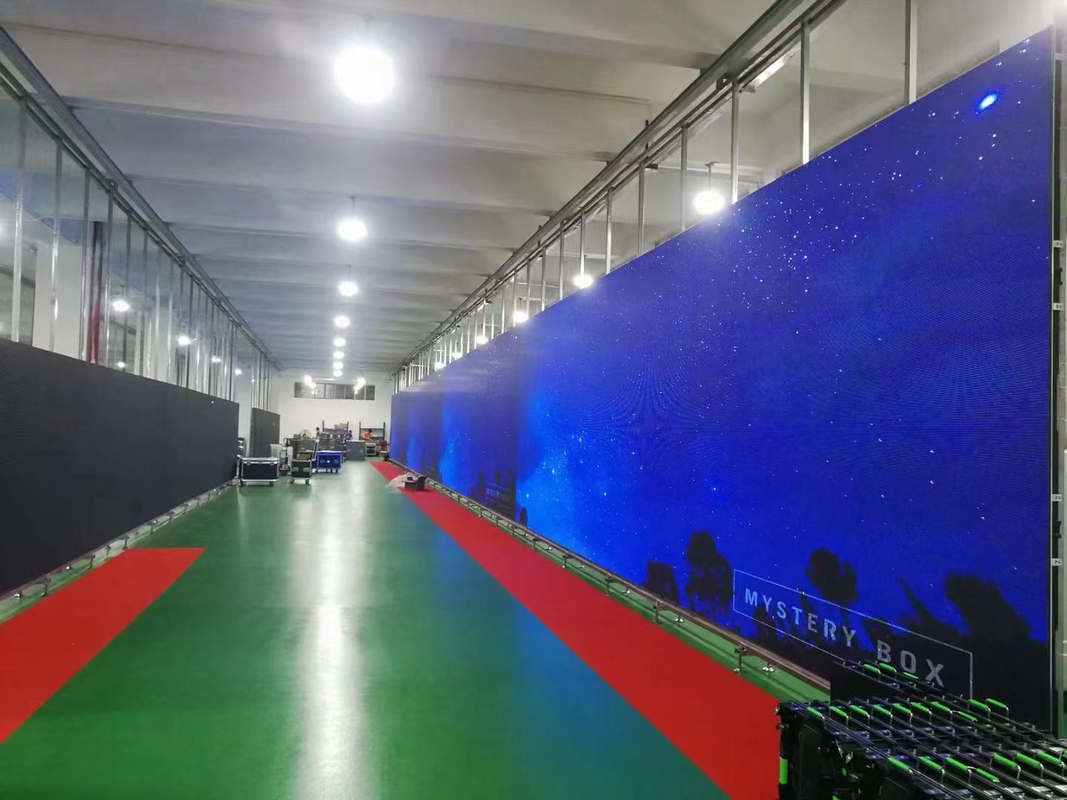

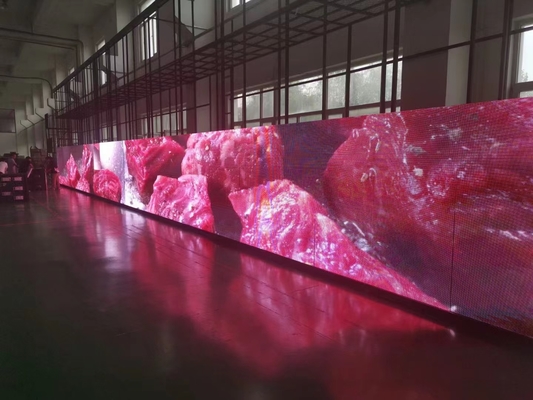

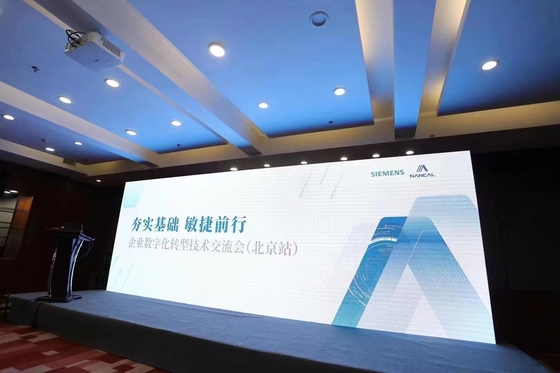

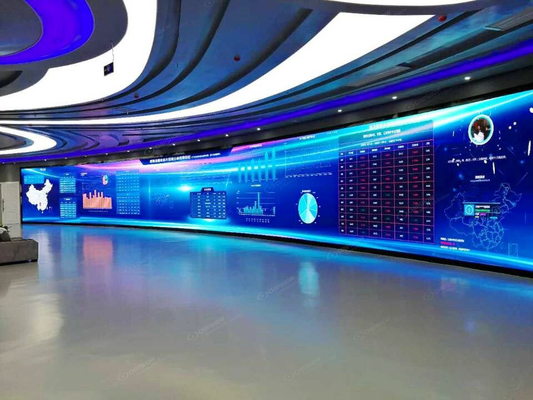

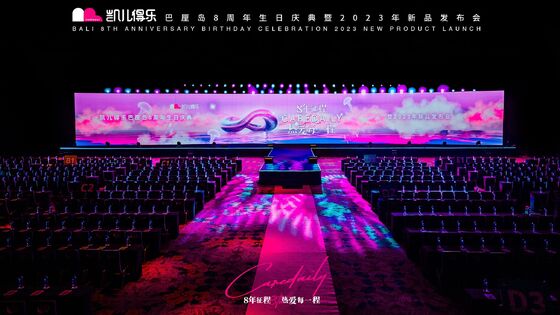

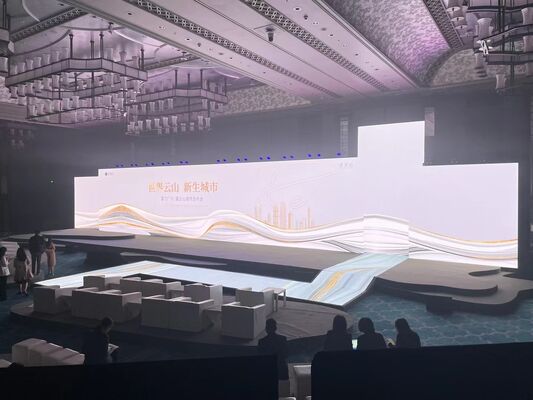

Led screen videp wall case
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
1, Free technical training if needed.
---Client can visit our factory, and our technician will teach you how to use LED display and repair LED display.
2, Professional after sale service.
---Our technician will help you to configure LED screen by remote if you don’t know how to make LED screen work. We send you spare part LED modules, power supply, controller card and cables. And we repair LED modules for you all life.
3, Local installation is supported.
---Our technician can go to your place to install LED screen if needed.
4, LOGO print
---We can print LOGO free even if buy 1 piece.
