products details

Home Products

Indoor p2.5 Full Color LED Display with Easy and Convenient Installation for in Meeting Rooms Theaters and Performance Venues

Name: Indoor p2.5 Full Color LED Display with Easy and Convenient Installation for in Meeting Rooms Theaters and Performance Venues
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: indoor p2.5
Price: 10000 USD
Availability: InStock

Brand Name:	SCX
Model Number:	indoor p2.5
MOQ:	16sqm
Price:	negotiation
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	3100 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China，shenzhen

Certification:

CB,UL，CE

Panel Material::

Front Service Die Cast Al- Cabinet

Density::

160000pixels/sqm

Specification::

Video Wall

Use::

Advertising Publish

LED Chip::

Epistar SMD2121

Close Viewing Distance::

Scan Mode:

1/32scan

Refresh Frequency:

3840Hz

Led Chip:

Kinglight,Nationstar

Surface Evenness:

GAP< 1mm

Use Environment:

Indoor

Led Configuration:

1R1G1B

Application:

Indoor

Ip Grade:

IP43

Material:

Aluminum/iron

Waterproof:

IP65

Operating Temperature:

-20℃~50℃

Packaging Details:

wooden case，flight case

Highlight:

Indoor fixed LED Display Panels CB

LED Display Panels 3840hz

Product Description

Indoor fixed LED display

General:

Indoor fixed LED screen uses high quality SMD 3 in 1 LED Chip which high efficiency luminescence, decreased attenuation of brightness, high reliability. SMD technology takes super wide viewing angle for the LED display, better color performance, higher contrast ratio and higher refresh rate, super uniformity in color, Low-budget, high pixel density, more vivid and stable pictures (No Flickering). With the advantages of long lifetime, low power consumption, high brightness, high resolution, LED display is perfect for indoor use to show high definition DVD, BD, TV programs and so on. And LED video wall can show colorful static and dynamic images vividly, high resolution HD video, 720P video, 1080P video, 2K Video, 4K video. Easy and convenient to install and set up LED display screen in different location or different indoor activities, such as Meeting Room, Conference Hall, Theater, Stage Hall, Performance Hall, Office, Bank, Hospital, College, School, Shopping Mall etc.

Features:

Various pixel pitch, from 1.25mm to 5mm.

True and natural color performance, uniformity vivid color display.

High brightness, high resolution and high refresh rate.

Seamless installation with excellent flatness.

High contrast ratio which ensures vivid images.

Low power consumption, environment friendly.

Long distance viewing without distortion.

Wide viewing angle, 160 degree in both horizontal and vertical.

Customization for various size and adjustable.

Long life time and stable performance.

Low cost and low maintenance fee.

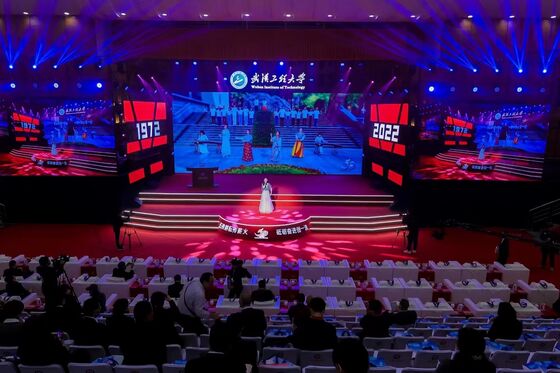

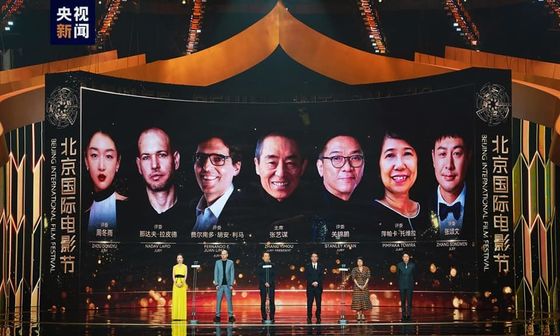

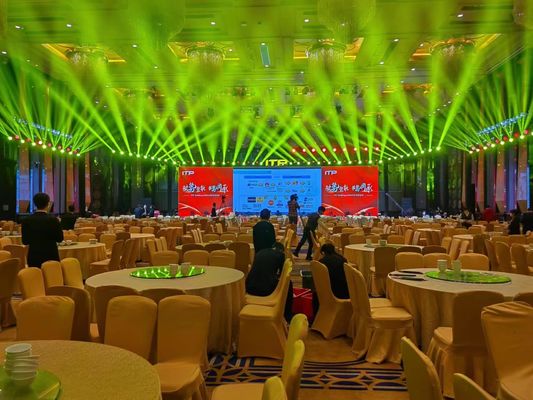

Applications:

Indoor fixed LED screen features

Higher Refresh Rate

The refresh rate is up to 4K Hz. The LED screen displays smooth and stable videos and images without flicker and ghosting.

Higher Gray Scale and Higher Contrast Ratio

The LED screen has better performance on displaying colors from dark to light and shows more colors' details.

Wider viewing angle

The LED screen has wider viewing angle. It is up to 160o in horizontal direction and 120o in vertical direction. More audiences can watch messages, images, videos etc. on the LED display.

Higher brightness and auto brightness

The indoor LED screen has higher brightness than LCD Displays and Projectors so that it can be visible at strong light. With auto brightness function, it will adjust brightness automatically.

Thin and light LED panel

The LED screen cabinet has sturdy structure. It is safe for transportation. And the cost for transportation and installation is lower.

Front maintenance

Saving maintenance space
With magnets attached at LED modules' back side, all components can be maintained such as LED modules, power supply, receiving cards, cables etc.

Front installation

Saving installation structure
The LED screen panel can be installed after removing 4 corners modules. Therefore the whole LED screen thickness is the cabinet thickness.

Seamless without gaps

CNC Machining
High-quality raw materials, large-scale production ensure stable and reliable quality cabinets which keep the LED screen in a good shape and smoothly. It leaves no obvious gaps between each cabinets.

Standard and customized size

Standard size: 768x768 mm (30.24x30.24 inches) 960x960 mm (37.8x37.8 inches) 1024x1024 mm (40.31x40.31 inches) We can also make customization.

LED display component

LED display components are LED display module, cabinet or frame, control system, video processor, power system, cables and screws.
LED display module is the most important component.

P2.5 LED display module features:
Pixel pitch:	2.5 mm
LED type:	SMD2121
LED composition:	SMD 3IN1 (1R 1G 1B)
Module size:	320 x 160 mm
Module resolution:	128 x 64 pixels
Module pixels:	8,192 pixels
Density:	160,000 pixels/m2

LED display cabinet features:
Size:	W 640 x H 480 x D 90 mm
Weight:	8 KG
Material:	Iron
Installation method:	Fixed, Hanging or Free standing
IP level:	IP43
Suitable:	P2.5 LED screen

Control System

Synchronous Control and Asynchronous Control.
Brand: Novastar, Huidu, Sysolution and Linsn etc.

Video Processor

Support multi video input and video solution.
Brand: Kystar, Vdwall and Novastar etc.

Power Supply

Stable power output for LED display.
Brand: Meanwell, G-energy and Chuanglian etc.

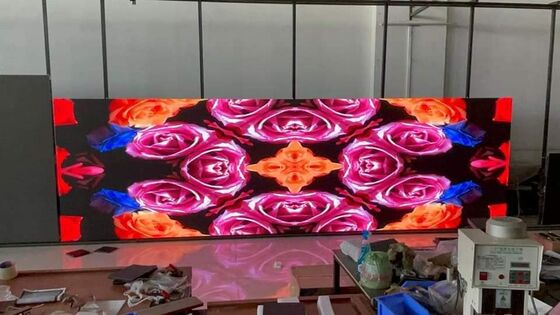

72 Hours Aging Test

72 hours aging test is the most important in productions. During this procedure, we can check if any LEDs go wrong.
Normally it is Red color, Green color, Blue color, White color and full color videos display testing.
