640x640mm p1.8 p2.5 Indoor Full Color LED Display Panel Die Casting Aluminum Cabinet

Name: 640x640mm p1.8 p2.5 Indoor Full Color LED Display Panel Die Casting Aluminum Cabinet
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: indoor p2.5
Price: 10000 USD
Availability: InStock

Brand Name:	SCX
Model Number:	indoor p2.5
MOQ:	10 sqm
Price:	negotiation
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	4300 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

China，shenzhen

Certification:

CB,CE,UL

Pixel Pitch:

2.5mm, 2.5mm

Use:

Advertising Publish, Retail Store, Shopping Mal

Screen Dimension:

Customized

Cabinet Resolution::

256*256 Dots

Brightness:

1500cd/sqm

Scan Mode::

1/32scan

Cabinet Size:

640x640 ，640x480

Packaging Details:

wooden case，flight case

Highlight:

Die Casting Indoor Full Color LED Display

Indoor Full Color LED Display Panel

Die Casting Indoor LED Display Panel

Product Description

640x640mm Indoor Full Color LED Display Panel Die Casting Aluminum Cabinet

Technical Parameters

Pixel Spacing	2.5mm	Model Size(W×H)mm	160*160mm
Model Resolution(W×H)dots	64×64dots	Module Weigh (kg)	0.3kg
(W)Maximum Module Power	44.75W	Cabinet Size(W×H)mm	640x640mm
Cabinet Composition(W×H)pcs	4×4pcs	Cabinet Resolution(W×H)dots	256×256dots
Cabinet Area(㎡)	0.4096㎡	Cabinet Weight (kg)	8KG±0.05kg
Pixel Density /㎡	250000 /㎡	Maintenance mode	Post maintenance
Optimal Distance	2m-300m	White Balance Brightness	≧1500cd/㎡
Viewing Angle	≧160	Maximum Power Consumption (W/㎡)	<600W/㎡
Average Power Consumption (W/㎡)	<300W/㎡	Power Supply Requirements	220V±10% & 110V±10%
Drive Mode	Constant current drive :32Saul	Gray level	16384
Refresh rate(HZ)	≥3840HZ	Lifespan(hrs)	>100000 h
Temperature Range(℃/RH)	-35℃-80℃/RH	Humidity Range	10%-80% RH
Safety Standard	CCC, FCC,ROHS,TUV-CE,ETL ,UL...

Panel Details

Panel Details:
Size: 640*640mm
Resolution: 256*256pixel

Cabinet Seamless Connection

LED Display System

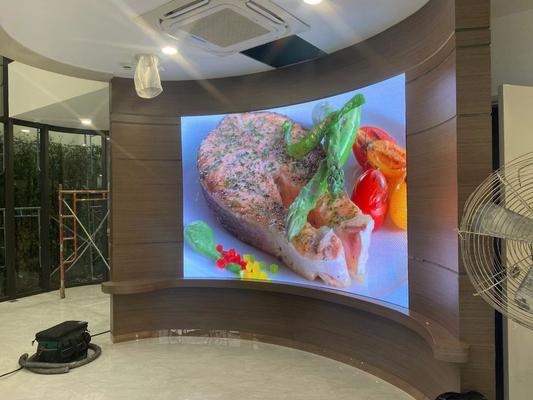

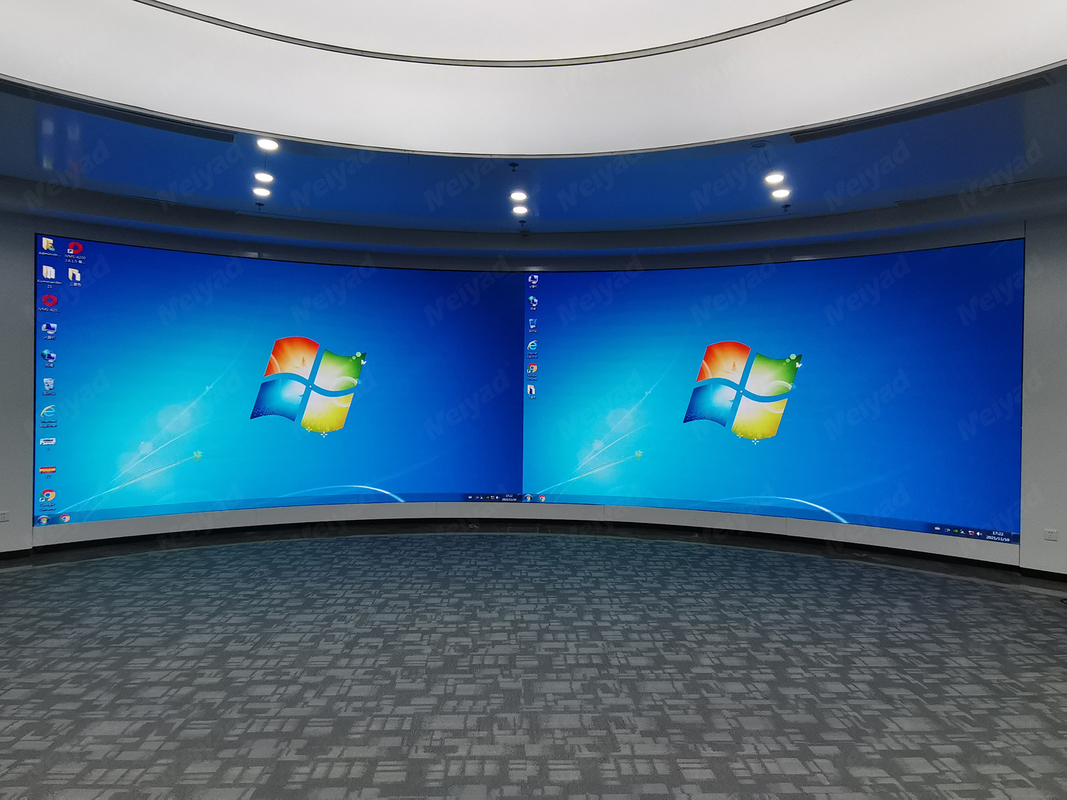

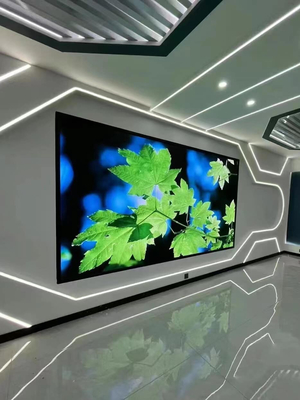

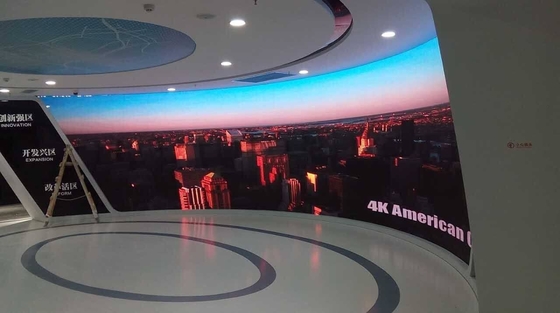

Our Project

1. Advantages of a series of patented products

A national high-tech enterprise focusing on LED display R&D, production and service. The product styles are diverse and the series are complete.


2. Multiple application areas
Provide one-stop LED display integrated solutions for indoor and outdoor commercial media, stadiums, stage interpretation, special-shaped creativity and other application fields

3. Experience and case
Attach importance to product research and development, with more than 5,000 successful cases in dozens of countries around the world

4. Support customized production advantages
According to customer needs, support research and development, design unique OEM products, product quality and appearance meet customer OEM customization requirements
