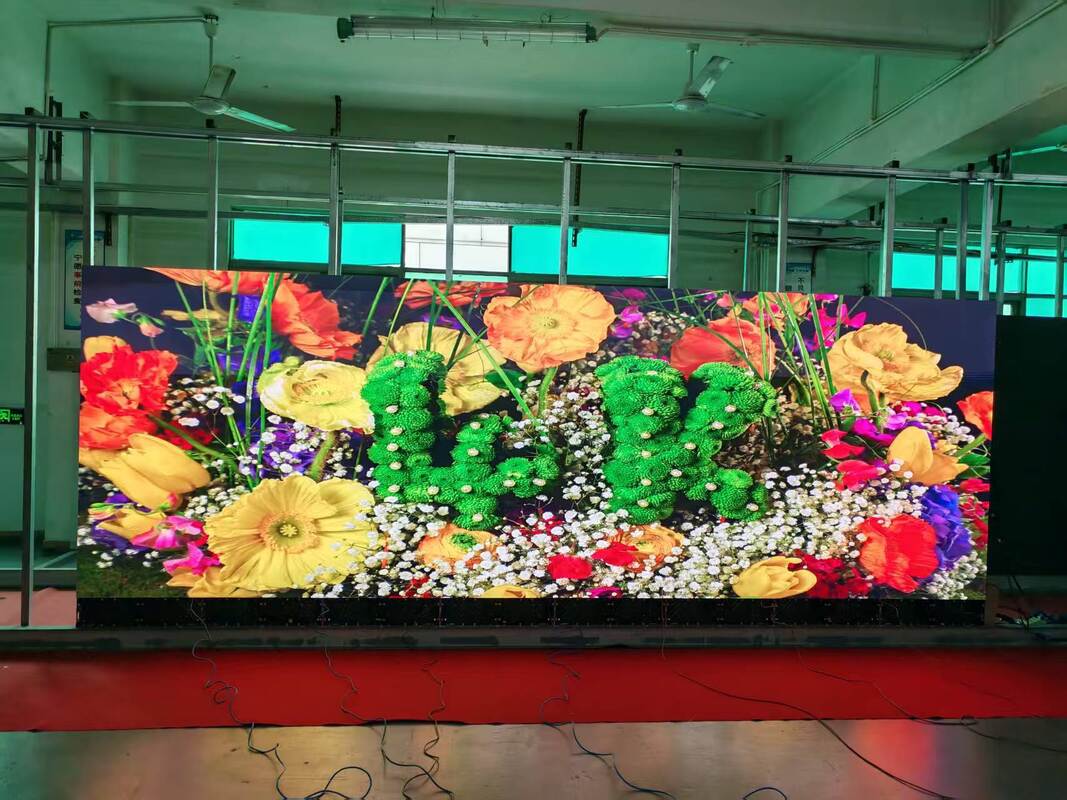

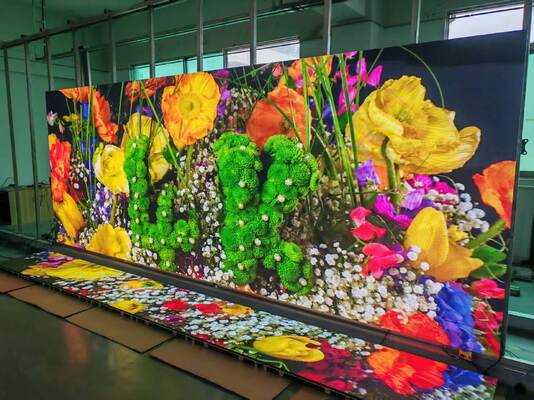

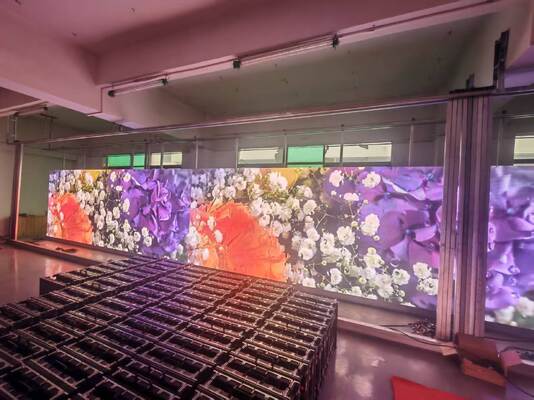

Indoor p2.5 Full Color LED Display with Compact Cabinet Size and High Pixel Density for Detailed Indoor Visual Presentations

Indoor P1.875

Indoor P2

Indoor P2.5

Panel Dimension

240(W)*240(H)mm

256(W)*128(H)mm

320(W)*160(H)mm

Pixel pitch

1.875mm

2mm

2.5mm

Pixel Density

284444 dot/m2

250000 dot/m2

160000 dot/m2

Pixel configuration

1R1G1B

1R1G1B

1R1G1B

Specification

SMD1515

SMD1515

SMD2121

Pixel resolution

128 dot * 128 dot

128 dot * 64 dot

128 dot * 64 dot

Max power consumption

33W

20W

30W

Panel weight

0.3KG

0.25KG

0.39KG

Indoor P1.875

Indoor P2

Indoor P2.5

Cabinet size

480mm*480mm*85mm

512mm*512mm*85mm

500mm*500mm*85mm

Cabinet Resolution

256 dot * 256 dot

256 dot * 256 dot

256 dot * 256 dt

Quantity of panel

4pcs

8pcs

8pcs

Hub connecting

HUB-HD26P

HUB75-E

HUB75-E

Cabinet Material

Diecsting aluminum cabinet

Diecsting aluminum cabinet

Diecsting aluminum cabinet / Iron cabinet

Maintenance Method

Front/Back service

Front/Back service

Front/Back service

Best viewing angle

170/ 120

170/ 120

140/ 120

Screen power supply

AC110V/220V - 5V60A

AC220V(-250V) - 5V40A

AC110V/220V - 5V60A

Max power capicity

900 W/m2

800W/m2

780 W/m2

Average power

450 W/m2

400W/m2

390 W/m2

Indoor P1.875

Indoor P2

Indoor P2.5

Driving IC

ICN 2163 / 2065

ICN 2163 / 2065

ICN 2037 / 2153

Scan Rate

1/32S

1/32S

1/32S

Refresh frepuency

1920-3840 HZ/S

1920-3840 HZ/S

1920-3300 HZ/S

Display color

4096*4096*4096

4096*4096*4096

4096*4096*4096

Brightness

600-800 cd/m2

800- 1000 cd/m2

800- 1000 cd/m2

Life span

100000Hours

100000Hours

100000Hours

Control distance

< 100M

< 100M

< 100M

Best viewing distance

1-30M

2-20M

2-30M

Operating temperature

- 10C°~60C°

- 10C°~45C°

- 10C°~45C°

Operating Humidity

10-70 %

10-90 %

10-90 %

IP protective index

IP43

IP43

IP43
