Indoor High Refresh 3840hz Portable LED Display 500500mm 5001000mm

Indoor High Refresh 3840hz Portable LED Display 500500mm 5001000mm

Brand Name:	SCX
Model Number:	indoor p3.91
MOQ:	16sqm
Price:	negotiation
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4600 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CB,CE,UL

Specification:

Video Wall

Cabinet Weight::

7.5kg

Cabinet Material::

Die-casting Aluminum

Brightness:

5000-5500 Nits

Refresh Rate (Hz):

3840

Life Span:

100000hours

Packaging Details:

wooden case，flight case

Highlight:

Indoor Portable LED Display

3840hz Portable LED Display

5500nits Stage Led Screen

Product Description

New Arrived Rental LED Display Series

P2.6 P2.9 P3.91 P4.81 indoor and outdoor stage background led display* 500*500mm and 500*1000mm die casting aluminum panel for your choose.

* High brightness 3840Hz refresh rate.

* Nova star A5S control system indoor outdoor led screen

Panel Details Show

* Size: 500(W)*500(H)x76.6(T)mm or 1.64(W)*1.64(H)x0.251(T)feet

* Weight: 7.5kg/pcs* Pixel Pitch: indoor and outdoor P2.6/P2.9/P3.9/P4.8

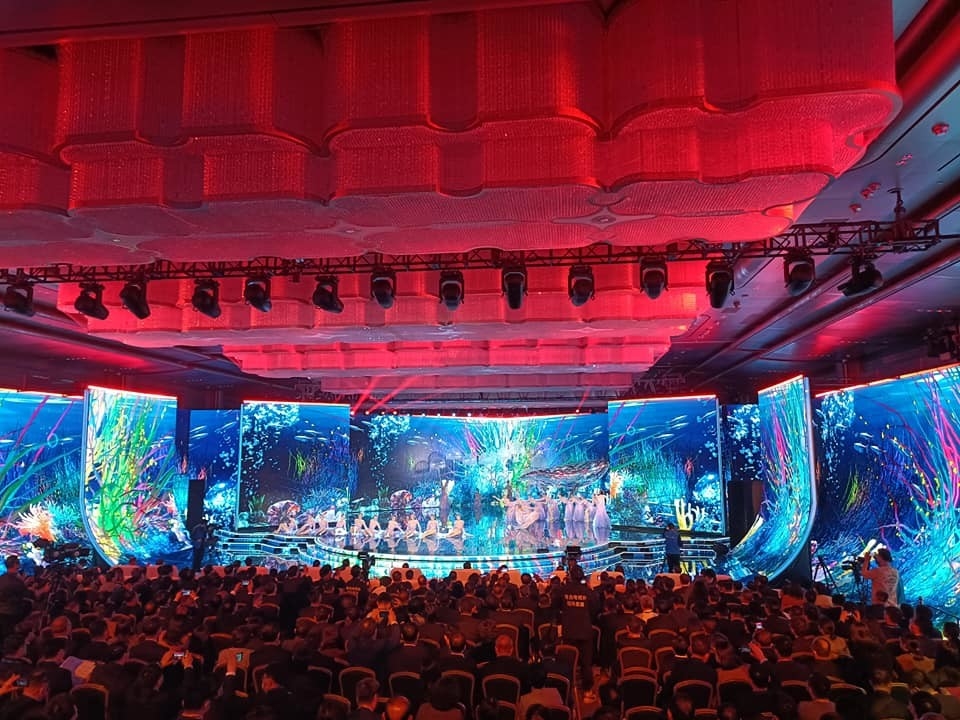

* Application: TV studio, stage background, party, show room, conference center, exhibition, bar, museum, church...

Maintenance

* Front and rear maintenance available. * Faster and easier to install and disassembly.
* Magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.

* Die casting aluminum panel.

HUB Board connection

* Without wires connection, signal and power can transfer more stable and reliable. * HUB board connect modules and power supplies directly instead of wires.

* Directly take out back cover, easy to change within 5 seconds.

LED Display Seamless Splicing

* Slim and light weight,quick disassembly.

* Weight: 7.5kg/cabinet,one person can carry,saving time and effort.

* High degree of protection, high durability.

* Common good, flexible and easy to use.

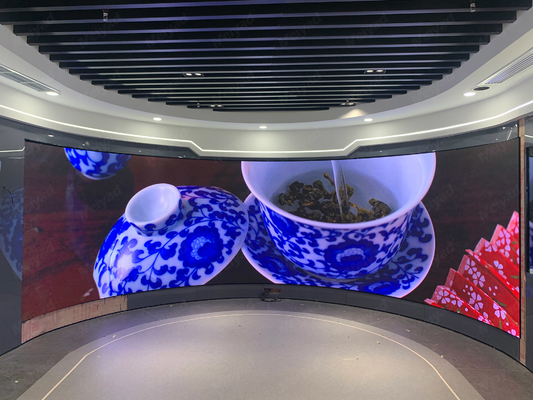

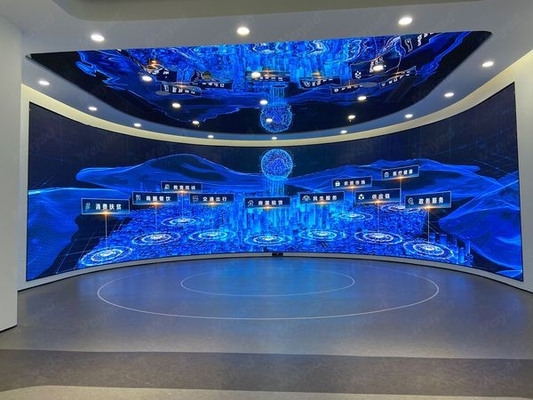

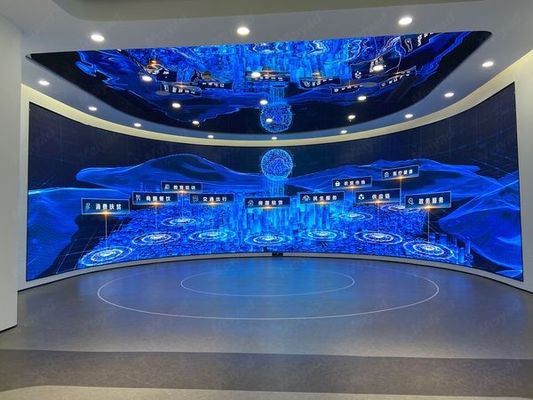

It can used as curved screen

Can be used as curve screen -5 to +10 degrees.

LED Display Test

Each product tested more than 72 hours before shipment.

Features
1, Seamless connection.
2, Special design for the mask to realize higher contrast and larger viewing angle.
3, Signal backup and power backup.
4, Brightness and chromaticity calibration.

Specification

Pixel Pitch	3.91mm
Pixel Density	65536dots/sqm
Color Configuration	1R1G1B
LED Package	SMD2121
Module Size	250mm x 250mm
Module Resolution	64dots x 64dots
Drive Mode	1/16 Scan
Cabinet Material	Die casting Aluminum
Led Color	Black
Standard Cabinet Size	500mm x 1000mm
Cabinet Weight	12KG
Brightness	≥1300 cd/sqm, adjustable by software
Viewing Distance	4m-40m
Viewing Angle	H: 160°; V:160°
Refresh Rate	3840HZ, adjustable by software
Frame Rate	120frame/s
Grey Scale	16.7M colors(Synchronized)
Color Temperature	R.G.B brightness 256 level adjustable
Power Input	AC110V/ 220V ±10%, 50HZ
Max Power Consumption	800W/sqm
Ave. Power Consumption	300W/sqm
Storage Temperature	-30℃~+70℃
Working Temperature	-20℃~+50℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof Level	IP43
Operating Humidity	10%~90% RH
Control Method	Synchronous, Asynchronous, 3G,WIFI,USB
PC Display Resolution	1280x1024
Control PC	With DVI Graphic card
Operating System	Win 98, Win2000, XP, Win7, Win8,Win10
Video Signal Mode	RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate	CE, RoHS
