Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available

Brand Name:	SCXK
Model Number:	P4
MOQ:	1 Square Meter/Square Meters
Price:	USD525-568per square meters
Payment Terms:	T/T, Western Union, MoneyGram,
Supply Ability:	3000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/ISO

Pixels:

Display Function:

Video

Cabinet Size:

640*640MM

Module Size:

320*160MM

Module Resolution:

80x40

Usage:

Indoor

Tube Chip Color:

FULL COLOR

Scanning Mode:

1/20scan

Pixel/㎡:

62500 Dots

Pixel Configuration:

SMD 1R1G1B

Packaging Details:

wooden box flight case, wooden case, carton, it is up to you.

Highlight:

Rential HD Waterproof Led Display

P4 Aluminum Rential Led Display

Product Description

P4 aluminum rential HD waterproof led commercial advertising display screen stage led display billboard 1R1G1B stage led display

Product Description

Parameter:

Indoor P4 LED advertising Display Screen
Information	Pixel Pitch	4mm
	Pixel Density	62500 Pixels/m2
	Pixel Configuration	1R1G1B
	LED Wavelength	Red: 615 nm - 635 nm
		Green: 520 nm - 535 nm
		Blue: 465 nm - 475 nm
LED Module	Module Size(mm)	320(Width) × 160 (Height)
LED Module	Module Resolution	80(Width) × 40 (Height)
Cabinet	Cabinet Size(mm)	640 (Width) ×640(Height)
	Cabinet Resolution	160 (Width) × 160(Height)
	Total QYT Module Per Cabinet	2(Width) ×4(Height)
	Cabinet Weight	30kg/m2
	Cabinet Material	Die-casting Aluminum LED Display
Power	Input Voltage	100-240V AC, 50/60Hz
	Max Power Consumption	1200 Watt/m2
	Avg. Power Consumption	720 Watt/m2
	Brightness	≥5000cd/m2
	Brightness Uniformity	Luminance Discrepancy < 5%
	Best Viewing Angle	Horizontal:140°,Vertical:70°
	Viewing Distance	5 - 15 meters
Ambint Conditions	Temperature Range	Working:-20deg. to +60deg
	Operating Humidity	10%90%RH
	Ingression Protection Grade	IP43
Processing	Scanning Mode	1/20 scanning
	Signal Input	DVI, Composite Video for Live Video
	Supported Networking	Through LAN/WAN, RS 232/RS485
	Controller	Linsn or Nova

RGB outdoor SMD LED Display Screen P5 with 320mm x 320mm Production Process:

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 0

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 1

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 2

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 3

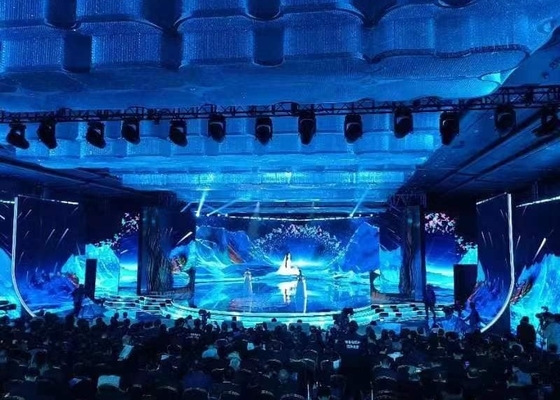

Screen Application

♦ Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies

--- Sports halls, fields, playgrounds,school church

--- Airports, bus stations and railway passenger terminals.

--- Facades of shopping malls, department stores, banks and car dealerships.

--- Architecture and social projects, information systems in cities.

--- Show-business, concerts, festivals, motor shows and other public events

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 4

Packaging & Shipping

Packaging:

1:Flight Case(3 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 7

2:Wooden case(3 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 8

Shipping:

Our Services

Capacity: above 5000sq.m / month

Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer’s specific usage.

After- sales service
1. We promise our customers 3 years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble for our customer.
3. We promise a life time follow up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 10

Die-Cast Aluminum Enclosure P3 LED Panel Indoor DJ Advertising LED Display Stage Concert Available 11
