Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P7.62 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |
| Product Name: | P7.62 Led Video | Module Size(W * H): | 244mm*122mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 7.62mm | Module Qty: | 1pcs |
| Type: | Free Standing | Resolution(W*H): | 32dots*16dots |
| Red Wavelength: | 625±2nm | Led Type: | SMD3528 |
| Continuous Working Hours: | Over 72 Hours | Water Proof: | IP34 |
| Control System: | Wireless | Frame Rate: | 60Hz |
| Scan: | 1/8 | Size: | Various Sizes |
| Warranty: | 3-5 Years | Protection Level: | IP34 |
| Driver Mode: | 1/4 | Power Consumption: | Low |
| Resolution: | Various Resolutions | Display Model: | P2.5 |
| Refresh Frequency: | >3000Hz | ||
| High Light: | led display rgb,rgb led screen |
||
P7.62 mm SMD RGB LED Display With 32dots x 16dots Resolution
Item Features:
it can play picture,video ,words ,text, and so on.
can be connected with video processor .
2 years warranty and more than 10 years life use
Can be controlled with 3g ,wifi, and wire line card.
High definition and quality
Voltage:DC5V and trouble-free time >5000hours
The detailed parameter as follows.
|
1, Item Name |
technology parameter |
|
2, pixel tube: |
pixel pitch:7.62mm; primary colors: pure red+pure green+pure blue , color composing: 1R1G1B Density 17222dots/sq m; SMD3528 |
|
3 , unit box |
module size: 244mm×122mm; Module resolution:32X16 cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm; |
|
4, whole screen: |
the optimum viewing angel :horizontal 110°, vertical 50° viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024
|
|
5, operating voltage |
AC220V±10% or 110V±10% ,average consumption:500 W/sq m max consumption:≤650 W/ sq m |
|
6, main parameter |
2) refreshing rate:≥400Hz/s 3) frame frequency:≥60Hz/s 4) gray scale/color:≥16.7Mcolors(Synchronized) 5) manage gray:≥72bit 6) brightness:≥2000cd/sq m 7) color temperature condition:3500K~9500K,be adjustable 8) adjusting style of brightness: hand movement/auto 9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10) average trouble-free time:≥5000hours 11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm 12) switch power loading:5V/40A 13) display mode of computer:1024×768
|
Applications:

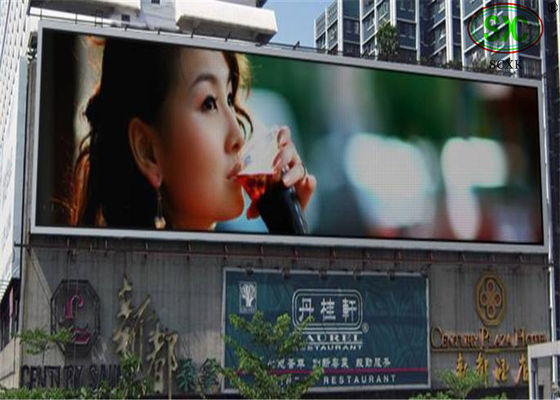

The video is very popular in LED display advertising field. This type digital billboards are widely used ,store ,stadium,shopping ,airport etc;
2. Features :
Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle
Super brightness led video advertising
In the led video series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED video series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.
1, Superb brightness and color uniformity and reproduction. Brightness variances within+/-2.5%
2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition
Methods for Quality Assurance
a. Aging
1. 100% fully test
Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Contact Person: david
Tel: +8613554930573
