Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO |
| Model Number: | P6.67 |
| Minimum Order Quantity: | 1 Square Meter/Square Meters |
|---|---|
| Price: | USD655-705per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | T/T, Western Union, MoneyGram, |
| Supply Ability: | 5000sqm per month |
| Pixel Pitch: | P6.67 | Display Function: | Video |
|---|---|---|---|
| Usage: | Outdoor | Pixel Density: | 22478Dots/sqm |
| Module Resolution: | 48*24 | Module Size: | 320*160MM |
| Cabinet Size: | 640*640MM | Life Time: | 10 Years |
| LED Shape & Size: | 2mm Smd2121 | ||
| Highlight: | p6.67 rgb led display panel,9500k rgb led display panel,hd smd rgb led screen |
||
P6.67 SMD Outdoor Full Color LED Billboard Street Advertising LED Signs Message Board Video Wall Stage Screen
Specifications :
| Outdoor P6 LED screen Display | ||||||
| Resolution/mm | 6.67 | |||||
| Pixel configuration | 1R1G1B | |||||
| Pixel density/pixels/m² | 22478/square meter | |||||
| Module resolution |
|
|||||
| Module size/mm |
|
|||||
| View distance | ≥6m | |||||
| Single point brightness adjust | Can be added | |||||
| Single point color adjust | Can be added | |||||
| White balance brightness | >6000cd/square meter | |||||
| Color temperature | 6500K-9500K | |||||
| Horizontal view angle | 120(degrees) | |||||
| Vertical view angle | 60(degrees) | |||||
| Signal Process bit | 10 or 16bit | |||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||
| Driving mode | Constant driving current | |||||
| Scanning mode | 1/8 scanning | |||||
| Fresh rate | 60Hz | |||||
| Refresh frequency | >1000Hz | |||||
| Control mode | Computer synchronous | |||||
| Out of control point | <1/10000 | |||||
| Aging hours | ≥72hours | |||||
| Mean Time Between Failure | >5000hours | |||||
| Life time | 100000hours | |||||
| Life-all-white(brightness halving) | 50000hours | |||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||
| Self-check technology | LED spot self-check, communications check, power check, | |||||
| temperature monitor(need customization) | ||||||
| Remote monitoring | Remote supervision and control, record potential fault, | |||||
| send out warning signs to the operators.(need customization) | ||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||
| Luminous point width between centres | Deviation<3% | |||||
| Brightness uniformity | <10% | |||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||
| Contrast | (1000:1) | |||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||
| Humidity(working) | working:10-95% | |||||
| Humidity(storing) | storing:10-95% | |||||

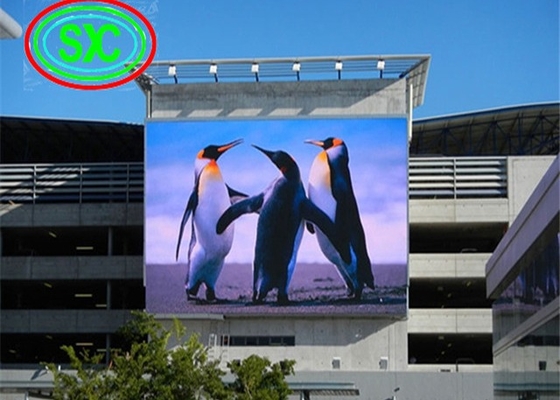

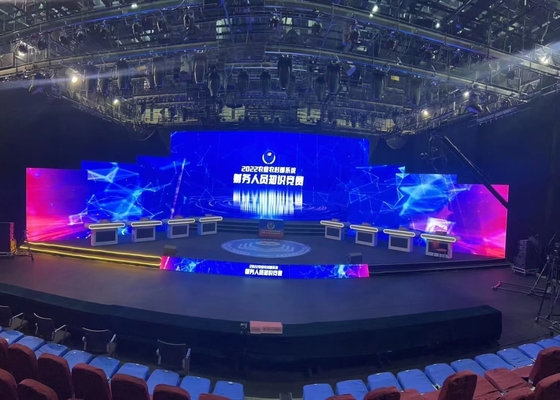

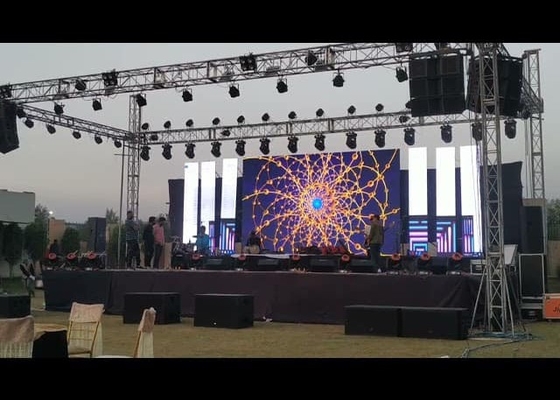

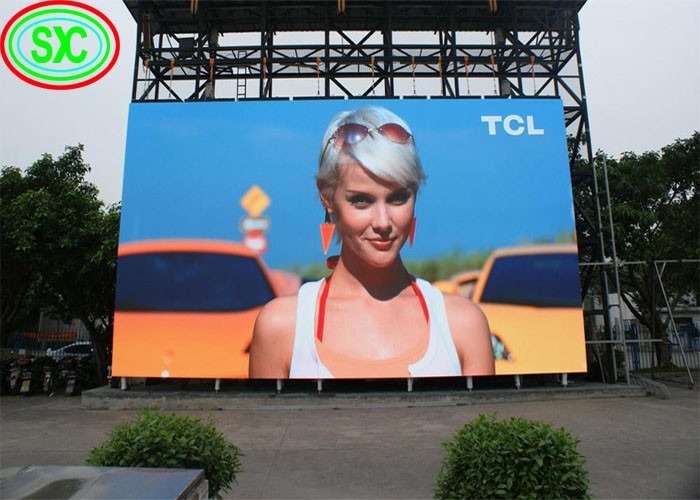

Our Projects:
What we do?
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc.
Why choose us?
1. Professional team and good after-sales service.
2. Promise high quality product for good price.
3. Quick delivery after payment.
4. Free technical support.
5. If any problems appear,we'll replay in 3-4 hours.
Advantages:
1) High intensity and can be adjusted, so can meet the request of the customers according the environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect LED Screen.
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
6) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, indoor P6 display etc.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
