|Place of Origin:||China|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||Packed in wooden case and flight case for outer packing|
|Delivery Time:||10 working days after received your payment|
|Payment Terms:||T/T or western Union|
|Supply Ability:||5,000/ Sq m per month|
|Product Name:||Ful Color Ld Screen||Module Size(W * H):||192mm*192mm|
|Standard:||CE/ROHS/FCC/ISO2001||Tube Chip Color:||Full Color|
|Pixel Pitch:||3mm||Module Qty:||1pcs|

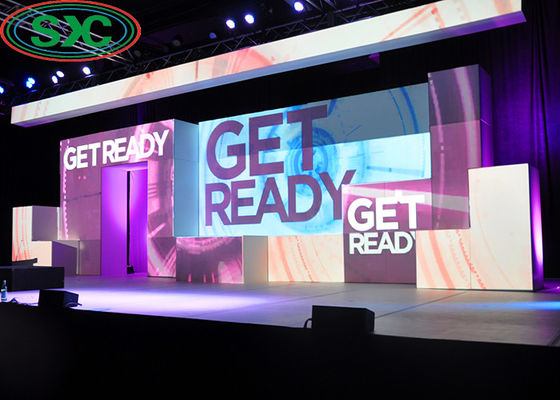

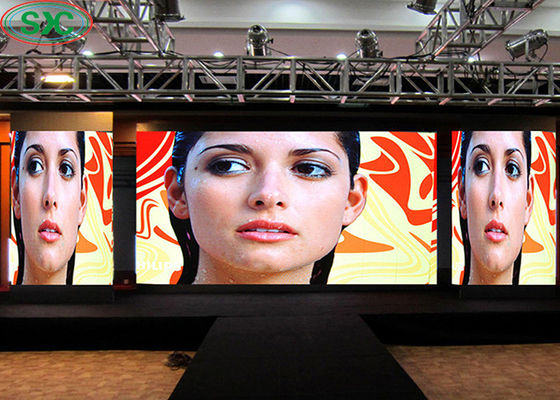

led stage display,
stage background led screen
SMD3 in1 technology is widely used in full color indoor and outdoor led display which means that one red, one green and one blue chip are encapsulated in one pixel.all pixels are averagely distributed on the whole LED display.
The outstanding advantages of Indoor SMD full color LED display is with big viewing angle, uniformity brightness, high color saturation, and high definition, vivid, smooth result when playing the texts or images.
SCXK's full color smd led display is with the features of high stability, convenient for installation and maintenance, rich playing content, quick reaction, low failure rate.etc
It is well applied to city halls, airports, waiting rooms, railway stations, bus waiting rooms, luxury office buildings, factories, enterprises, etc
|1, Item Name||technology parameter|
|2, pixel tube:||
pixel pitch:3mm; primary colors: pure red+pure green+pure blue ,
color composing: 3 in 1
Density:111111dots/sq m; SMD2121
|3 , unit box||
module size:192mm×96mm; Module resolution:64x32
cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
|4, whole screen:||
the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024
|5, operating voltage||
AC220V±10% or 110V±10% ,average consumption:500 W/sq m
max consumption:≤650 W/ sq m
|6, main parameter||
1) driving mode: 1/16 scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768
•Wide adjustability range allows the user to regulate the display brightness for all environmental conditions.
•High degree of color and brightness uniformity provides an amazingly sharp, vivid and clear Image.
•Wide viewing angle up to 110 degrees horizontal and 60 degrees vertical.
•Low energy consumption and rapid heat dissipation aid in extending the product’s life span.
•Easy to maintain with simple module replacement.
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 4g and wifi controll will be welcome)
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
Warranty: 2 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
