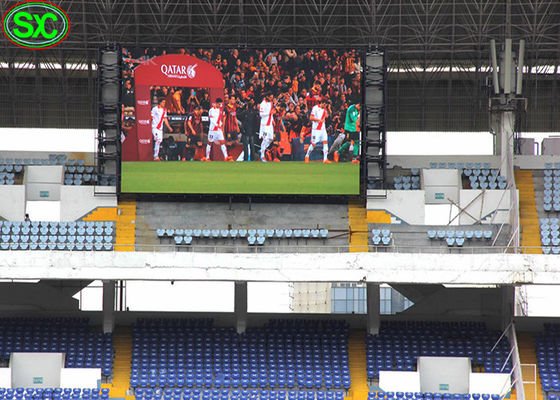

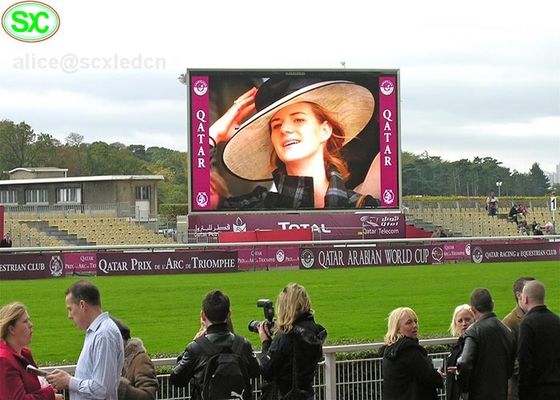

High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning

High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning

High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning
High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning
High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000/ Sq m per month
Contact Now
Detailed Product Description
Product Name: P10 Stadium Led Screen Module Size(W * H): 320mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 10mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 32dots*16dots
Highlight:

perimeter led display

,

led perimeter advertising boards

High Resolution P10 full Color Outdoor stadium LED Display,1/4 scanning



Shenzhen Shichuangxinke Electronics Co.,Ltd start in 2005. the most professional provider of outdoor and indoor led displays,we have the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.



Focusing on the international market to realize the global strategic layout. With the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.



Relying on the strong technical strength, the advanced production management system, the complete operating programs and our international business team, we successfully set up a base gathering the abilities of R & D, production and sales in Shenzhen.



High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 0



Specification of p10 smd stadium perimeter led display

No. specs outdoor full color PH10
1 Pixel structure SMD3535
2 Pixel pitch 10mm
3 Pixel density 10000dots/Sq. m.
4 Luminance 7500cd/Sq. m.
5 Module dimension 320mm(W) * 160mm(H)
6 Module resolution 32dots * 16dots
7 Module weight 400g
8 Cabinet dimension 960 * 960mm or other
9 Cabinet area 0.92 sq. meter or other
10 Screen weight 40~60kg/m2
11 Optimal visual distance > 10m
12 Visual angel 140 degree (H/V)
13 Max power consumption 1000w /Sq. m.
14 Average power consumption 300w /Sq. m.
15 Brightness adjustment Adjust according to the enviroment
brightness software (0%-100%adjustable)
16 Drive mode 1/4 dynamic scan
17 Input voltage AC 110~240 volts
18 Operation temperature -40° C~ +60° C
19 Operation humidity 10%~90%
20 Input signal DVI, MPG, AVI, WMV, RM etc.
21 Control system DVI card + master control card + receiver card
22 lifetime (50% brightness) >100, 000 hrs
23 Malfunction dot rate 1/10000
24 Cabinet material Epoxy paint coated Cold rolled steel iron/Aluminum
25 Data interconnection UTP Cat 5/Optical Fiber
26 Application:

Rental / Permanent installation available



Product Performance



•Wide adjustability range allows the user to regulate the display brightness for all environmental conditions.

•High degree of color and brightness uniformity provides an amazingly sharp, vivid and clear Image.

•Wide viewing angle up to 110 degrees horizontal and 60 degrees vertical.

•Low energy consumption and rapid heat dissipation aid in extending the product’s life span.

•Easy to maintain with simple module replacement.



High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 1High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 2High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 3High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 4







The epistar Led chip. with SMD and DIP Technology .



We adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available



module.pngHigh Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 6







The wire or wireless controll system are available .( 3g and wifi controll will be welcome)










Our Service



1)Training after order

After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment



2) Installation and debugging

BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.



3) Warranty

Warranty: 2 years warranty, lifetime maintenance

Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.



4) Maintenance

Maintenance principles: response in time, solve problems asap and ensure the use.

Maintenance period: In the maintenance period of the led display body, free of all maintenance charges

After maintenance period, only charge the material cost and labor cost.




Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 8



Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.



High Resolution P10 full Color Outdoor stadium LED Display 1/4 scanning 9



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
