Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | P4 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5,000/ Sq m per month |
| Product Name: | Led Stair Display | Module Size(W * H): | 256mm*128mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 4mm | Module Qty: | 1pcs |
| Type: | Free Standing | Resolution(W*H): | 64dots*32dots |
| High Light: | club dance floor,light up dance floor |
||

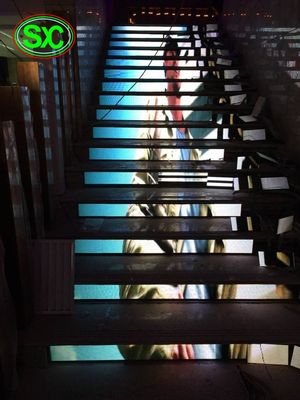

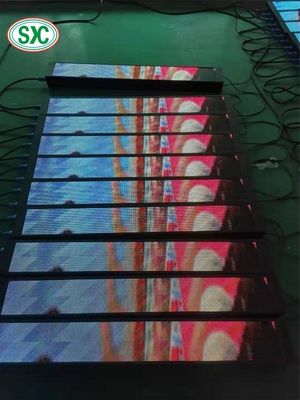

P4 customized LED Stair Screen Free Standing LED Dance Floor for Wedding Advertising
think about dancing in fire, chasing tide, fabulous video…you can easily realize such things in dancing floor of disco hall, night club, T-stage, concerts, show dramas…
Dnace Floor LED Screen feature
High Weight Load [200kg/S (S≥160x160 mm) Al-alloy Structure, Super-wearable Surface,Sealed Structure, High Protection Level (IP65) 14Bits Processing Depth, 3-in-1 SMD Technology The best color uniformity
Floor LED Screen P10 is designed into tiling module which turns the inanimate floor into an amazing stage video displaying surface with colors, patterns, videos and interactive performances. Designed based on concept of PASSION digital stage,which is a brand-new form digitally expressing floor. It also brings the best expressing form for floor for creating scene and interacting with shows in stage.
Dance Floor LED Screen adopt the color and brightness revised technology, the uniformity can reach the best level. The definition of showing picture is very high, Strong and durable aluminum alloy is used to build its structure and its facade is made of super-wearable rosin plastic, which endures hundreds of kgs stuff onto its facade moving and trampling.
High grey grade, the screen picture will be extremely soft and vivid.
| full color indoor p4 floor tile screen,stair floor display with skidproof floor mask | |||||||||
| LED Lamps | Type | SMD2727(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 4mm | |||||||
| Module Size | 256mx128m | ||||||||
| Module Resolution | 64dots*32dots | ||||||||
| LED Cabinet | Cabinet Size | 512mmX512mm | |||||||
| Cabinet Resolution | 128pixels *128pixels | ||||||||
| Cabinets Material | steel or aluminium | ||||||||
| LED Display | Pixel Density | 10000pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >800cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
| Best Viewing Distance | 1m~100m | ||||||||
| Max Power Consumption | 400w/sq.m | ||||||||
| Average Power Consumption | 240w/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 1024 | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/4 scan constant current | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control method | Synchronization & Asynchronization | ||||||||
| Control System | Control System | Mooncell | |||||||
| Software | LED Studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system |
Microsoft Windows 7, 98, 2000, XP and Vista |
||||||||
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The package and shippment
we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Contact Person: joe
Tel: +8613922107240
