Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | P10 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5,000/ Sq m per month |
| Product Name: | Outdoor P10 Dance Floor Screen | Module Size(W * H): | 320mm*320mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Single Color |
| Pixel Pitch: | 10mm | Module Qty: | 1pcs |
| Type: | Free Standing | Resolution(W*H): | 32dots*32dots |
| High Light: | club dance floor,interactive dance floor |
||
Our Advantage service
1, We have our own developing and designing team, Which ensure our own technological and innovate products ofr customers.
2, For any customers who have new idea about some products,just let us know, we can according to your idea provide a unique design of the products.
3, For any customers who send us the samples of some products, we will design and develop better ones based on the samples.
4, for every customer,we wll choose the best fit material,and also innovate material for their products.
5, we can according to any customers' design to do sample for them.
6, we are manufacturer,factory,so we have the ability of mass production.
Shenzhen SCXK Electronics Co.,Ltd is a leading manufacturer of led display with 12 years experience,
and provider of technical solution of all kinds of led displays modules and control cards.factory is located in Shenzhen ctiy,Guangdong province,China . over these years innovation and development,we have been enjoying good reputation in led display both in domestical and international market.

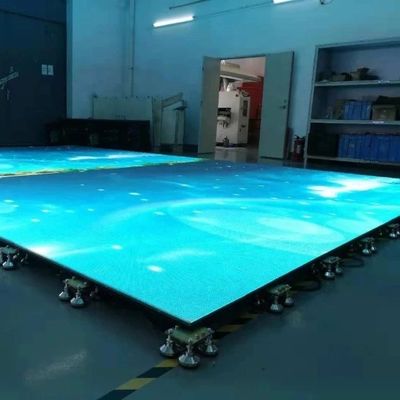

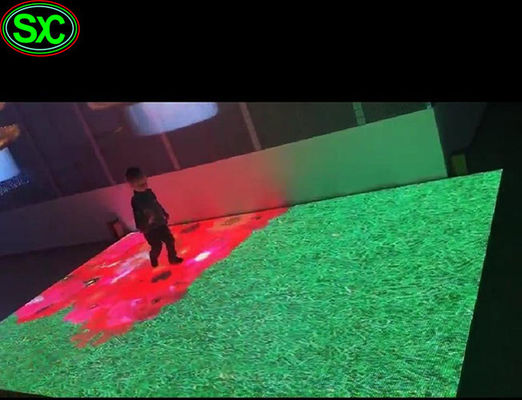

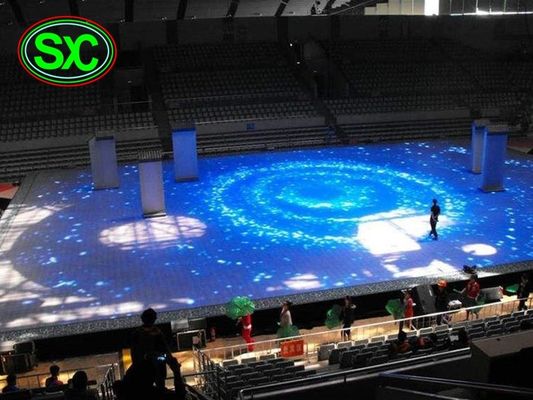

| full color outdoor p10 floor tile screen,dance floor display with skidproof floor mask | |||||||||
| LED Lamps | Type | SMD3535(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 10mm | |||||||
| Module Size | 320mx320m | ||||||||
| Module Resolution | 32dots*32dots | ||||||||
| LED Cabinet | Cabinet Size | 960mmX960mm | |||||||
| Cabinet Resolution | 96pixels *96pixels | ||||||||
| Cabinets Material | steel or aluminium | ||||||||
| LED Display | Pixel Density | 10000pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >5000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
| Best Viewing Distance | 1m~100m | ||||||||
| Max Power Consumption | 400w/sq.m | ||||||||
| Average Power Consumption | 240w/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 1024 | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/4 scan constant current | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control method | Synchronization & Asynchronization | ||||||||
| Control System | Control System | Mooncell | |||||||
| Software | LED Studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system |
Microsoft Windows 7, 98, 2000, XP and Vista |
||||||||
Methods for Quality Assurance
a. Aging
100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
The epistar Led chip. with SMD and DIP Technology .
We adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
We can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
We can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability.
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Contact Person: joe
Tel: +8613922107240
