Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | shenzhen,China |
| Brand Name: | SCX |
| Certification: | CE,CB,IEICC,FC |
| Model Number: | indoor p2.5 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4900 sqm per month |
| Brightness: | 1000-1500nits | Color Processing: | 16.7M |
|---|---|---|---|
| Color Temperature: | 6500K | Control System: | Synchronization/Asynchronization |
| Display Type: | Indoor Full Color LED Display | Input Voltage: | AC100-240V |
| Power Consumption: | Max. 800W/sqm | ||
| High Light: | 2.5mm indoor full color led display,1920hz indoor full color led display,smd led screen for advertising indoor |
||
Cost-effective High Definition indoor big led screen TV P2.5 full color LED display screen wall Large indoor LED Screen TV 4K 8K led display 4K 8K Super Clear Full Color P2.5 Indoor LED Stage Rental Display Screen P2.5mm Seamless Advertising LED Screen
1.16:9 golden ratio customized size with Die-casting Aluminum LED Panels.
2.Ultra Thin, Lightweight, 57mm thickness, 4.9kg/pcs panel.
3.All-in-one CNC Die-casting Aluminum design, no back door, full front maintenance.
4.The design make sure the higher precision, flatness and Seamless more better.
5.Hidden Handle,Hidden cables, Save installation space.
6.No need leave space at the back of the wall,Can directly mounted on the wall with back strip and screws.
7.Save structure cost, installation cost and labor cost.
8.Suitable Models: P0.9, P1.25, P1.56, P1.875, P2.08, P2.5,
9.Application: TV Station,TV studio, Trade Show, Conference room, Showroom, Shopping Mall, Fashion show, Event show, Exhibition show, Bank, Hotel, School, Church, Meseum, Casino, Pub, Night Club, Banquet hall,Theme park, Sport stadium, Airport,Auditorium, theater,outdoor auto theater,command center, control room,etc
P1.875 and P2.5 Fine Pixel LED screen wall with 480x480mm front and back Dual service Die-casting Aluminum LED Panel Screen Parameter
Technical Parameter
| Parameter | P1.875mm HD LED Screen | P2.5mm HD LED Video wall |
| Pixel Pitch | 1.875mm | 2.5mm |
| Pixel Configuration | SMD 3-IN-1 | SMD2121 3-IN-1 |
| Pixel Density | 284,089 dots/m² | 160,000 dots/m² |
| Module size | 240x240mm | 240x240mm |
| Cabinet Size | 480x480mmx57mm | 480x480mmx57mm |
| Panel Dimension (WxHxD) | 18.9''X18.9''X3'' | 18.9''X18.9''X3'' |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight | 4.9kg/panel (10.8lb/panel) | 6.8kg/panel (15lb/panel) |
| Refresh Rate | 1920Hz~3840Hz | 1920Hz~3840Hz |
| Brightness | 1000nits(Adjustable) | 1200nits(Adjustable) |
| Horizontal Viewing Angle(°) | 160 ° | 160 ° |
| Vertical Viewing Angle(°) | 160 ° | 160 ° |
| AC Power Input(V) | AC110V~ 220V ±10% | AC110V~ 220V ±10% |
| AC Power Frequency(Hz) | 50 ~ 60 Hz | 50 ~ 60 Hz |
| Max. Power(W/m²) | 565 W/m² | 520 W/m² |
| Avg. Power(W/m²) | 189 W/m² | 170 W/m² |
| Storage/Operating Humidity(RH ) | 10% ~ 90%RH | 10% ~ 90%RH |
| IP Rating(IP ) | IP30 / IP30 | IP30 / IP30 |
| Lifetime Typical Value(Hrs) | 100,000 Hrs | 100,000 Hrs |
| Installation Type | Front&Rear installation | Front&Rear installation |
| Maintenance Method | Front&Rear Access Maintenance | Front&Rear Access Maintenance |
Product Details & Application
1.Magnetic Module with frame-sharing 480x480mm die-casting aluminum cabinets
2. Friendly Cabinet design with comfortable rounded corner handle,heat emission holes,signal indicator testing button,OEM Label, Anti-collision corner,Hidden cables design and front maintenance tool design.
3.Free-structure Install, flexible for wall mounted fixed and saving installation cost and space

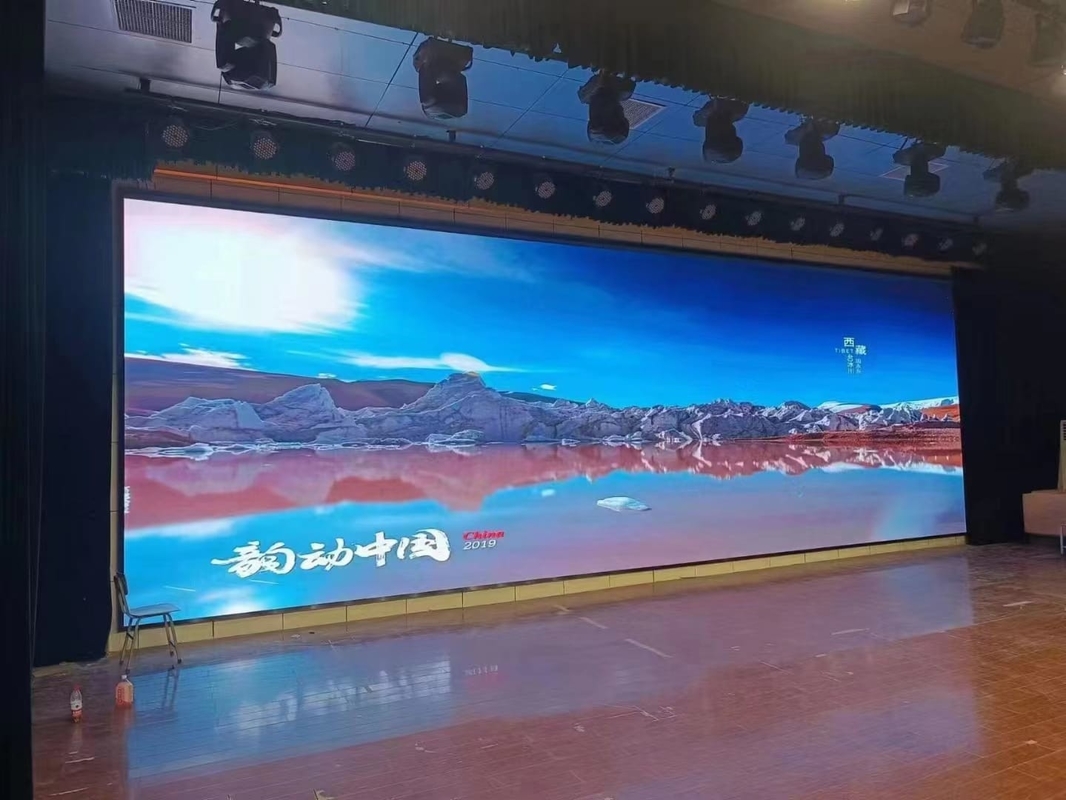

4.Wide application indoor stage rental or indoor advertising or presentation

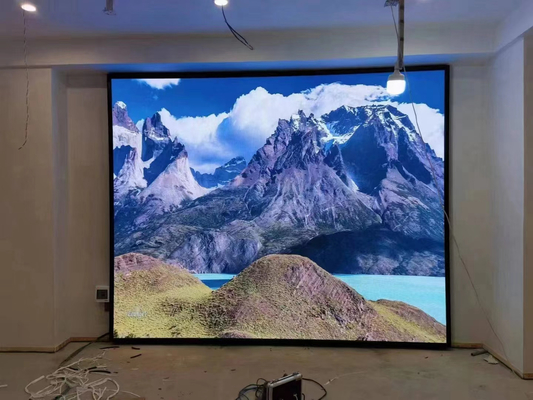

Free structure wall mounted install and easy front maintenance
Hanging type permanent fixed install, structure saving
Pre-sales service:
Email,telephone call or social network online timely communication, provide suggestions & solutions according to customer's requirements.
After-sales service:
•Keep you informed about the status of your LED display production process.
•Take pictures and videos of your LED display for reference after finish production.
•Arrange shipment and provide trackinguntil the products arrived successfully.
•All documents provide timely, such as bill of lading, packing list, commercial invoice etc to help customer clear the customs and pick up the LED Display.
•Guidance service: online remote video training and guidance supported if customers have questions about the installation and usage.
•Offer installation structure drawing to help customer build the structure, if customer need, we can arrange engineer to your country to guide and assist install the LED Displays if customer could bear the relevant cost.
•24/7 technical support by online remote control whenever customer need.
•Free technical training, such as teach customer how to operate the software, how to check the trouble shooting & maintenance the LED display etc.
•Warranty period:2 years after shipment for standard products, the guarantee time can be longer according to client’s special needs. We are committed to free repair or replacement during warranty and lifetime maintenance.
•Maintenance terms: response in time, solve problems as soon as possible and ensure to well use. In the Maintenance period, free for all maintenance charges. Under normal use and storage, our company will be responsible for the equipment. If there any failure in product quality, our company will maintain and change the components for FREE. After Maintenance period, only charge the material costs. Life time maintenance.
