Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street

Brand Name: SCXK
Model Number: P6
MOQ: 1
Price: USD440-520per square meters
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 3000sqm per month
Detail Information
Place of Origin:
China
Certification:
CE/ROHS/FCC/ISO
Pixel Pitch:
P6
Usage:
Outdoor
Display Function:
Video
Module Size:
192x192mm
Cabinet Size:
576mm*576mm
Pixel Density:
27777 Dots/sqm
Life Time:
10 Years
LED Shape & Size:
2mm Smd 2121
Scanning Mode:
1/8 Scanning
Packaging Details:
wooden box flight case, wooden case, carton, it is up to you.
Highlight:

p6 rgb led display board

,

smd 2121 rgb led display board

,

p6 rgb led screen

Product Description
Product Description



Rental Digital Led Sign Led Panel Screen LED Display Board P6 Advertising Screen for Outdoor Hanging Video Wall



Outdoor Hanging LED Specifications :


Outdoor Hanging P6 LED Display
Resolution/mm 6
Pixel configuration 1R1G1B
Pixel density/pixels/m² 27778/square meter
Module resolution 32*32mm
Module size/mm 192*192mm
View distance ≥6m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >6500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/8
Fresh rate 60Hz
Refresh frequency >1000Hz
Control mode Computer synchronous
Out of control point <1/10000
Aging hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

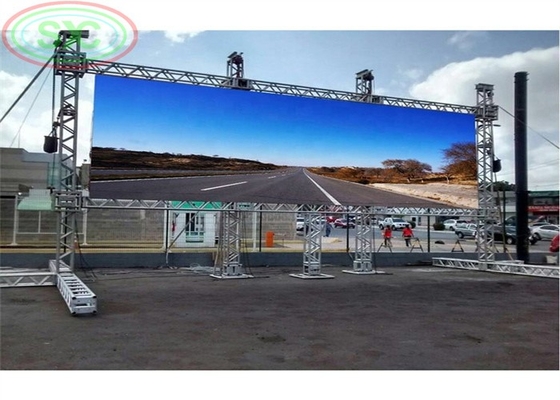

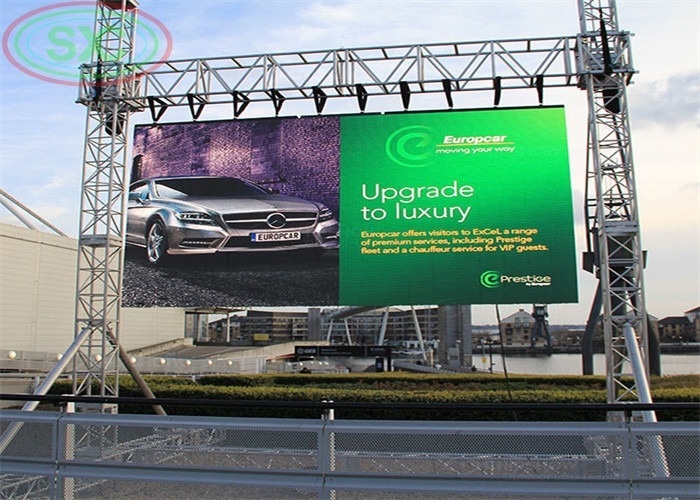

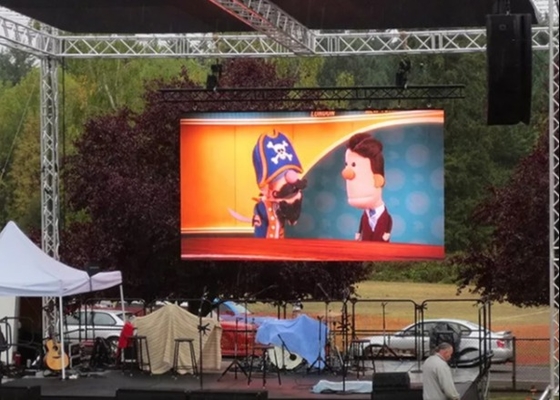

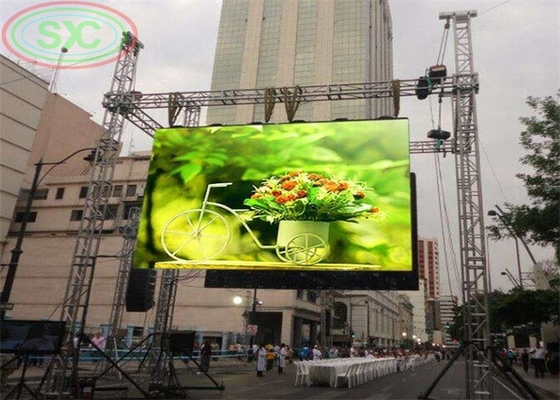

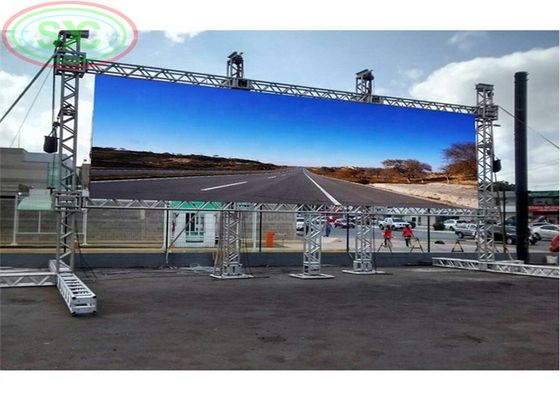

Outdoor Hanging Projects:

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 0Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 1Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 2Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 3






What we do?

Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.

We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc.

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 4

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 5

Why choose us?

1. Professional team and good after-sales service.

2. Promise high quality product for good price.

3. Quick delivery after payment.

4. Free technical support.

5. If any problems appear,we'll replay in 3-4 hours.





Outdoor Hanging Led Advantages:

1) High and adjustable intensity to meet customer's requirement according to environment.
2) Best equality, excellent solution to mosaic problem and excellent light consistency.
3) LED screen with clear, delicate and true-to-life display effect for pictures and characters.
4) Horizontal viewing angle of 110 degrees and vertical viewing angle of 60 degrees.
5) Each LED can be serviced, making it low maintenance and easy to repair.
6) Typically used in sports, advertising, banks, stock exchanges, stations, harbors, indoor P6 displays, etc.

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 6Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 7









Packaging & Shipping

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 8Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 9

Our Services

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 10





Company Information

Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 11





FAQ





Rental SMD3535 Outdoor LED Display Board Advertising Screen Commercial Center Square Street 12





Welcome to visit our website and inquire us more info,waiting for you all the time!!!
