Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P6 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T or western Union |
Supply Ability: | 5000sqm per month |
Product Name: | The Rental Led Display | Module Size(W * H): | 192m*192mm |
---|---|---|---|
Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
Pixel Pitch: | 6mm | Module Qty: | 1pcs |
Type: | Free Standing | Resolution(W*H): | 32ots*32dots |
Highlight: | rental led display screen,led rental screen |
1, within thin cabinet or aluminum cabinet.
2, easy to dismantle and assemble, very slight
3, voltage:DC5V
4, Led pixel composing :RGB
5, High brightness and definition
6, 2 years warranty and more than 10 years life use
Pixel pitch | P6 | ||
Module Parameters | Pixel pitch | 6 mm | |
Pixel Density | 27778pixels/m2 | ||
LED Shape | SMD 3 in 1 | ||
LED Configuration | 1R1G1B | ||
Module Resolution | 32*32pixel | ||
Module Size | 192mm*192MM | ||
Drive Method | 1/8 | ||
Cabinet Parameters | Cabinet Resoltuion | 96*96 | |
Cabinet Size | 576*576 mm | ||
Cabinet Weight | 36kg/m2 | ||
Display Parameters | Optical | Brightness | ≥6500cd/m2 |
Viewing angle | H/V 160/160 | ||
Best Viewing Distance | 3-100m | ||
Display Color | 16.7 million | ||
Grey Scale | 10bits/1024levels | ||
Power | Max power consumption | 1000 W/m2 | |
Ave power consumption | 500 W/m2 | ||
Working Voltage | 220V / 110V | ||
Control system | Frame Frequency | 60--85 HZ | |
Refresh Rate | ≥2000 HZ | ||
Data Transmission | CAT 5/ Optic Fiber | ||
Image Source | S-Video, PAL/ NTSC | ||
Controlling system | linsn, Nova, Mooncell, ZD, Xixun, Lumen, Dbstar |
||
Format | Video Compatibility DVI, VGA, composite | ||
Reliability | Working Temperature | -20~65 ℃ | |
Working Humidity | 10-90%RH | ||
Life Span | 100,000 Hours | ||
MTBF (Ave No Faliure Time) | 5000 Hours | ||
Pixel failing Rate | 0.01% | ||
IP Rate | IP 65 |
About our led displays
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
Applications:

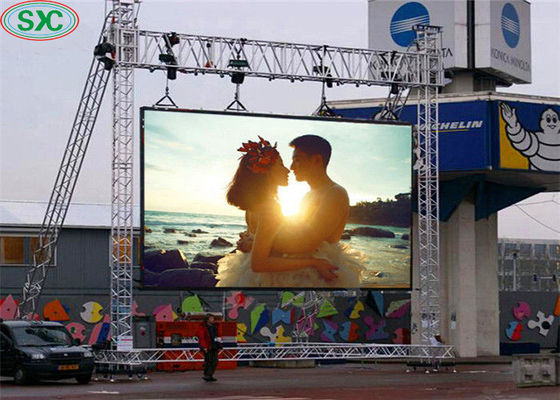

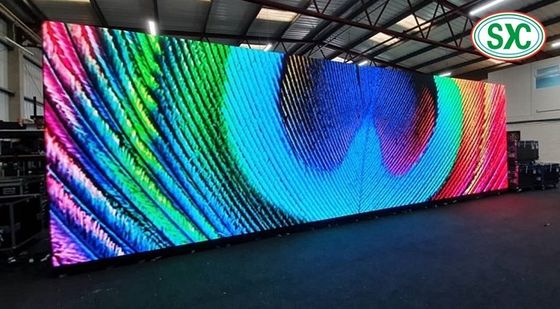

Rental full color digital billboard is very popular in LED display advertising field. This type digital billboards are widely used ,indoor building,stadium,shopping ,airport etc;
Super brightness indoor full color LED billboard advertising
In rental LED display series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.
1, Superb brightness and color uniformity and reproduction. Brightness varaiances within+/-2.5%
2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
The steer consturction is very stable for led display,and you can purchase from your local market .
The package and shippment
we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?
Methods for Quality Assurance
a. Aging
1. 100% fully test
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
