High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65

High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65

  • High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65
  • High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65
High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P10 Stadium Led Display Module Size(W * H): 320mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 10mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 32dots*16dots
High Light:

perimeter led display

,

perimeter led screen

High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65

SCXK is a manufacturer of LED Display, LED Module with well-equipped testing facilities and strong technical force.with a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Commercial and Advertising and Rental Performance and other industries.



Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.our products are sold to all over the world :America,Argentina,Armenia, Australia, Austria ,AgentinalBrazil,Canada,Central,African Republic,Colombia,Finland,Hongkong,India,Israel,Italy,Japan,Libya ,Macao,Maldives,Mexico,New Zealand,Nigeria,Pakistan,Portugal,Russia,Slovakia ,Sweden,Turkey,Zambia etc.



We warmly welcome all customers from all walks of life to contact us for future business relationships and mutual success!



The detailed parameter as follows.

1, Item Name technology parameter
2, pixel tube:

pixel pitch:10mm; primary colors: pure red+ pure green +pure blue;

color composing:3 in 1 or 1R1G1B

Density 10000dots/sq m; SMD3528 and DIP346

3 , unit box

module size:160mm×160mm; Module resolution:16X16

cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°

viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024



5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m

max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: 1/4 scan

2) refreshing rate:≥400Hz/s

3) frame frequency:≥60Hz/s

4) gray scale/color:≥16.7Mcolors(Synchronized)

5) manage gray:≥72bit

6) brightness:≥2000cd/sq m

7) color temperature condition:3500K~9500K,be adjustable

8) adjusting style of brightness: hand movement/auto

9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

10) average trouble-free time:≥5000hours

11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

12) switch power loading:5V/40A

13) display mode of computer:1024×768



High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65 0

High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65 1High Refresh Frequency 10mm Football Field Led Display With Waterproof Level Ip65 2



Applications:

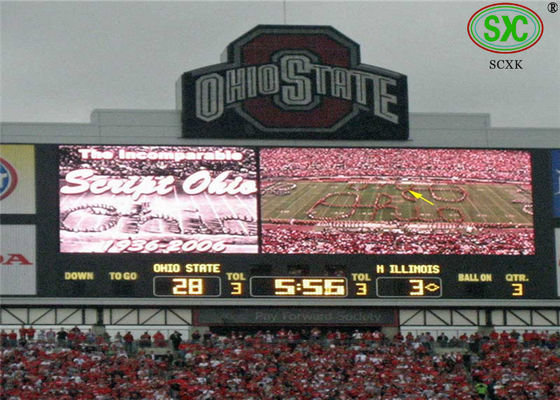

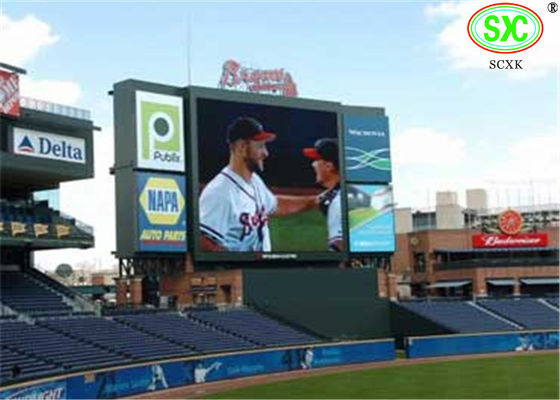

The stadium full color led display is very popular in LED display advertising field. This type digital billboards are widely used stadium.

2. Features :

Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system

and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Super brightness stadium full color LED billboard advertising

1, Superb brightness and color uniformity and reproduction. Brightness variances within+/-2.5%

2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection

3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition





Methods for Quality Assurance

a. Aging

100% fully test Condition: 72 hours with 256 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range



Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.





Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.



Parking and Shipping


A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch



B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch



C.customized packing is acceptable
D. 20"FT container loading of 100sq.m




♦ Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
