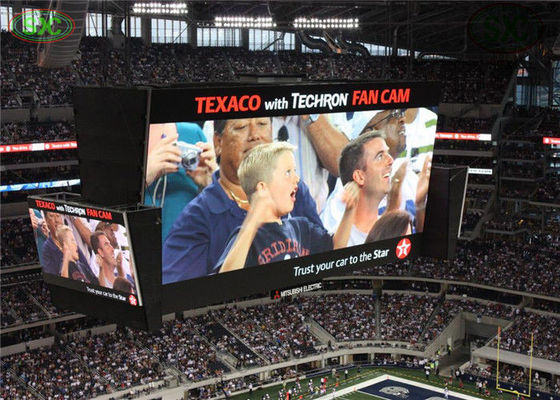

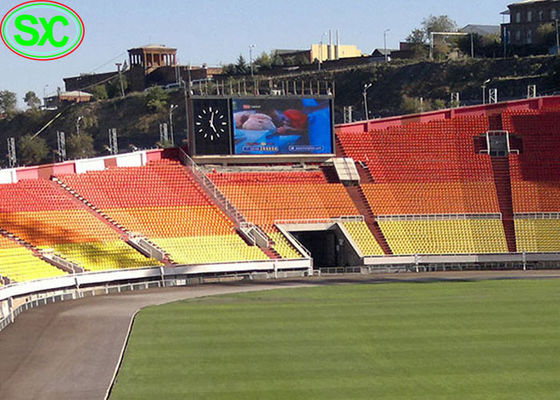

Professional outdoor smd led display 10mm Pixel Pitch Stadium HD Video led displays For live broadcast

Professional outdoor smd led display 10mm Pixel Pitch Stadium HD Video led displays For live broadcast

  • Professional outdoor smd led display 10mm Pixel Pitch Stadium HD Video led displays For live broadcast
  • Professional outdoor smd led display 10mm Pixel Pitch Stadium HD Video led displays For live broadcast
Professional outdoor smd led display 10mm Pixel Pitch Stadium HD Video led displays For live broadcast
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: The Stadium Led Display Module Size(W * H): 320mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 10mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 32dots*16dots
High Light:

perimeter led display

,

perimeter led screen

Professional outdoor smd led display10mm Pixel Pitch Stadium HD Video led displays For live broadcast



1. Function and Technology Character

(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.

(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.

(3) Clear picture without flicker and distortion.

(4) Brightness, contrast, saturation can be adjusted by itself and manual.

(5) Show everything with your PC does synchronously.

(6) Super correcting technology for distortion.

(7) One interface for sound signal and two for video signal at least.

(8) Connected and controlled by PC via Lan and remote control.

(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on



Items Parameter
Pixel Pitch PH6mm PH8mm PH10mm
Module Resolution(W*H) 192mmX192mm 256mmX128mm 320mmx160mm
Pixel Configuration 1R1G1B(in 3 n 1)
LED Encapsulation SMD white 3535
Pixel Density 27778Pixel/m2 15625Pixelm2 10000Pixel/m2
Driving Method 1/8Scan 1/4Scan 1/4Scan
Refresh Frequency ≥3000Hz(Support High refresh rate,depends on the system configuration)
Driver IC Amp/MBI
Grey Scale ≥16Bit(depending on the system and Configuration)
Cabinet Size 960X960mm
Color Temperature 5000K,6500K,9300K,12000K(adjustable)
Viewing Angle Horizontal 130°Vetical 120°
Optimal Viewing Distance ≥1.5m ≥2m ≥2.5m
Working Voltage AC 220v/110V±10%
Module voltage DC4.2V
Max Power Consumption 90W/pcs 80W/pcs 80W/pcs
Avg.Power Consumption) 90W/pcs 40W/pcs 40W/pcs
Lifetime 50000hours
Operating Temperature -10℃~50
Net weight 30Kg/pcs 35Kg/pcs 35Kg/pcs



Professional outdoor smd led display 10mm Pixel Pitch Stadium HD Video led displays For live broadcast 0



Order Procedure

Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---

Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.

production process.jpg

Features :
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle
Super brightness single color LED billboard advertising
In the double color display series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.
1, Superb brightness and color uniformity and reproduction. Brightness variances within+/-2.5%
2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition
Methods for Quality Assurance
a. Aging
1. 100% fully test

  1. Condition: 72 hours with 256 gray level

b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.







Parking and Shipping


A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch



B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch



C.customized packing is acceptable
D. 20"FT container loading of 100sq.m

1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
