Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |
| Product Name: | P10 Stadium Led Display | Module Size(W * H): | 320mm*160mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 10mm | Module Qty: | 1pcs |
| Type: | Free Standing | Resolution(W*H): | 32dots*16dots |
| High Light: | perimeter led display,led perimeter advertising boards |
||

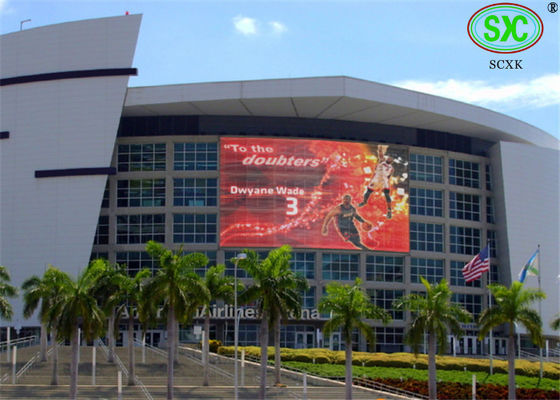

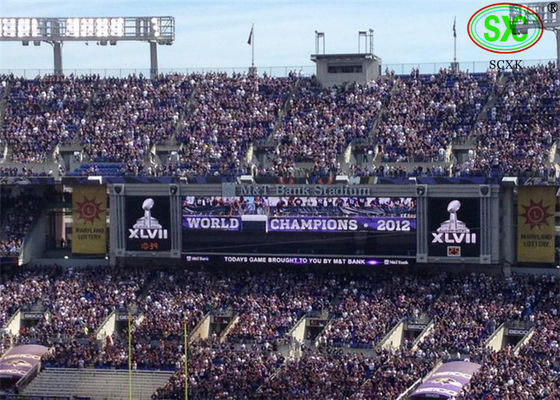

Live Broadcast outdoor smd led displayRGB Color P10 Stadium LED Display Video Wall with 1/4 Scan
Established in 2005,Shenzhen Shichuangxike Electronics Co.,Ltd has been focusing on the international market to realize the global strategic. equiped with good global marketing network, our products are sold to South America, North America, Europe, Southeast Asia, Australia and other regions.
As the most professional provider of outdoor and indoor led displays, SCXK Electronics has the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.
Based on the strong technical strength, advanced production management system, thorough operating programs and our international business team, we wholely set up a base gathering the abilities of R & D, production and sales in Shenzhen.
Specification of p10 smd stadium perimeter led display
| No. | specs | outdoor full color PH10 |
| 1 | Pixel structure | SMD3535 |
| 2 | Pixel pitch | 10mm |
| 3 | Pixel density | 10000dots/Sq. m. |
| 4 | Luminance | 7500cd/Sq. m. |
| 5 | Module dimension | 320mm(W) * 160mm(H) |
| 6 | Module resolution | 32dots * 16dots |
| 7 | Module weight | 400g |
| 8 | Cabinet dimension | 960 * 960mm or other |
| 9 | Cabinet area | 0.92 sq. meter or other |
| 10 | Screen weight | 40~60kg/m2 |
| 11 | Optimal visual distance | > 10m |
| 12 | Visual angel | 140 degree (H/V) |
| 13 | Max power consumption | 1000w /Sq. m. |
| 14 | Average power consumption | 300w /Sq. m. |
| 15 | Brightness adjustment | Adjust according to the enviroment |
| brightness software (0%-100%adjustable) | ||
| 16 | Drive mode | 1/4 dynamic scan |
| 17 | Input voltage | AC 110~240 volts |
| 18 | Operation temperature | -40° C~ +60° C |
| 19 | Operation humidity | 10%~90% |
| 20 | Input signal | DVI, MPG, AVI, WMV, RM etc. |
| 21 | Control system | DVI card + master control card + receiver card |
| 22 | lifetime (50% brightness) | >100, 000 hrs |
| 23 | Malfunction dot rate | 1/10000 |
| 24 | Cabinet material | Epoxy paint coated Cold rolled steel iron/Aluminum |
| 25 | Data interconnection | UTP Cat 5/Optical Fiber |
| 26 | Application: | Rental / Permanent installation available |
Product Performance
•Wide adjustability range allows the user to regulate the display brightness for all environmental conditions.
•High degree of color and brightness uniformity provides an amazingly sharp, vivid and clear Image.
•Wide viewing angle up to 110 degrees horizontal and 60 degrees vertical.
•Low energy consumption and rapid heat dissipation aid in extending the product’s life span.
•Easy to maintain with simple module replacement.
Our Service
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
3) Warranty
Warranty: 2 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
