HD High Definition Giant LED Display P10 , full color Digital LED billboard



2.Easy to splice, install and maintain
Modularization design and no other connected cables make the installation so easy.User just mounts iron sheet or magnetic product on the surface in the first,then stick the Flexible LED sign on the surface .



3.Flexible and bendable
The flexible chassis and soft cover design enable user to bend it freely, so it can be assembled at any uneven or irregular locations.

4.Super thin and light
Flexible LED Sign is one of the thinnest &lightest LED signs in the world with special materials and advanced technology. Every module is weight of 800g.

5.Low power consumption
The maximal power consumption of a module is less than 12W



p10 SMD full color led screen technology parameter

Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m^2	10000/m^2
Module resolution	32dotsx16dots
Module size/mm	320x160mm
View distance	5-150m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	6000 cd/m^2
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/4scan
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>10000hours
Life time	100000hours
Life-all-white(brightness halving)	100000hours
Environment temperature range	Operating temperature range: -20-45℃
Maximum power:/^2	<700W
Average power:/^2	<200W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%





Super brightness single color LED billboard advertising

In the led billboard /panel series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.

1, Superb brightness and color uniformity and reproduction. Brightness variances within+/-2.5%

2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection

3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition



♦ Our advantages

Professional Manufacturer of led display



1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.





♦ Production process:



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping







We can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.

We can choose the best shippment which is convenient to you!

SCXK group can give you the short delivery time and With the large production ability.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

♦ Applications

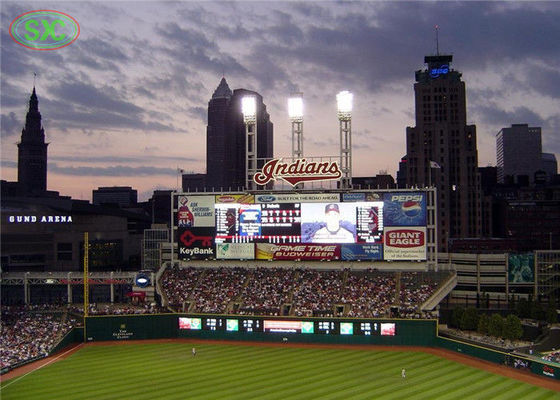

--- Outdoor and indoor advertising, digital billboards, advertising companies

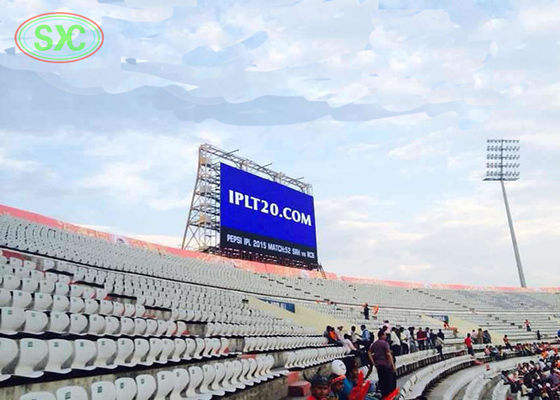

--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.



♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
