Outdoor Full Color Led Display P5 led screen with 3840hz refresh rate and 6000 brightness

Outdoor Full Color Led Display P5 led screen with 3840hz refresh rate and 6000 brightness

Brand Name:	SCX
Model Number:	outdoor p3 led screen
MOQ:	3 sqm
Price:	negotiation
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2300 sqm per sqm

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen,China

Certification:

CE,CB,IEICC,FC

Brightness:

≥7000cd/m²

Control System:

Synchronous Or Asynchronous

Display Type:

Outdoor Full Color LED Display

Input Voltage:

AC 110V/220V

Pixel Density:

10000-30000 Dots/m²

Refresh Rate:

≥3840Hz

Working Temperature:

-20℃~+60℃

Led Brand:

Nationstar Or Kinglight

Max Power Consumption:

800W/㎡

Led Cabinets Size:

960mm*960mm

High Brightness:

6000cd/m2

Best Viewing Distance:

4-20m

Certificates:

CE RoHS FCC CCC UL

Packaging Details:

wooden case，flight case

Highlight:

ac 110v outdoor full color led display

outdoor full color led display p5

ac 220v outdoor full color led screen

Product Description

2023 new design hd video full color p3 led screen display outdoor background led video wall excellent ip65

OF/OFR	OF2.5	OF3	OF3.076	OF3.91	OF4	OF4.81	OF5
Pixel Pitch(mm)	2.50	3.00	3.08	3.91	4.00	4.81	5.00
Pixel Matrix Per Sq.m	160000	111111	65436	65436	62500	62500	40000
Pixel Configuration	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921	SMD1921	SMD1921
Brightness (nits)	5000	1800	5000	4000	5000 5500	4000	5500
Scan	1/16	1/16	1/13	1/16	1/10 1/8	1/13	1/8
Module Dimension	160x160mm	192x192mm	320x160mm	250x250mm	320x160mm 256x128mm	250x250mm	320x160mm
Cabinet Weight	46kg / 101lb (Iron)	46kg / 101lb (Iron)	45kg / 99lb (Iron)	44kg / 97lb (Iron)	44kg / 97lb (Iron)	43kg / 95lb (Iron)	43kg / 95lb (Iron)
Power Con. (Max / Avg)	900/ 180 w/sq.m
Cabinet Dimension	960x960mm (Cabinet size can be changed according to module size)
IP Rate	IP65
Service Access	Rear
Refresh Rate (HZ)	>1920
Grey Scale (bit)	16bit
Viewing Angle (H/V)	140/140
Input Voltage (AC)	110V/240V

OF/OFR	OF6	OF6.6	OF8	OF10S	OF10D	OF16S	OF16D
Pixel Pitch(mm)	6.00	6.67	8.00	10.00	10.00	16.00	16.00
Pixel Matrix Per Sq.m	27777	22500	15625	10000	10000	8000	10000
Pixel Configuration	SMD3535	SMD2727	SMD3535	SMD3535	DIP346	SMD3535	DIP346
Brightness (nits)	5500	5500	6500	6500	1000	8000	10000
Scan	1/8	1/6	1/3	1/2	1/2	1/1	1/1
Module Dimension	192x192mm	320x160mm	320x160mm	320x160mm	320x160mm	256x256mm	256x256mm
Cabinet Weight	42kg / 93lb (Iron)	42kg / 93lb (Iron)	41kg / 90lb (Iron)	40kg / 88lb (Iron)	40kg / 88lb (Iron)	46kg / 101lb (Iron)	46kg /101lb (Iron)
Power Con. (Max / Avg)	900/ 180 w/sq.m
Cabinet Dimension	960x960mm (Cabinet size can be changed according to module size)
IP Rate	IP65
Service Access	Rear
Refresh Rate (HZ)	>1920
Grey Scale (bit)	16bit
Viewing Angle (H/V)	140/140
Input Voltage (AC)	110V/240V

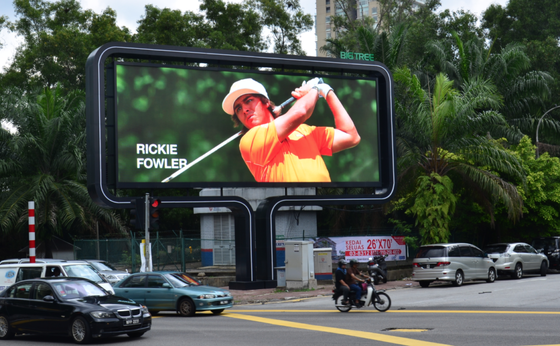

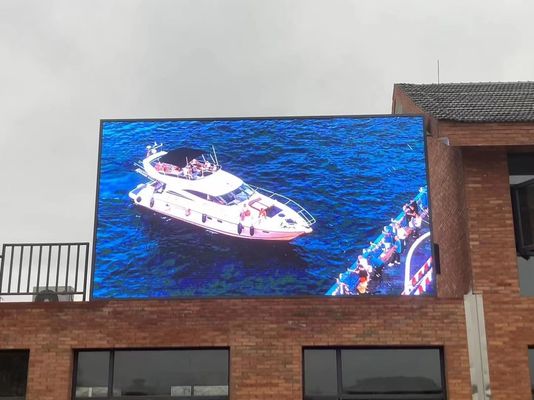

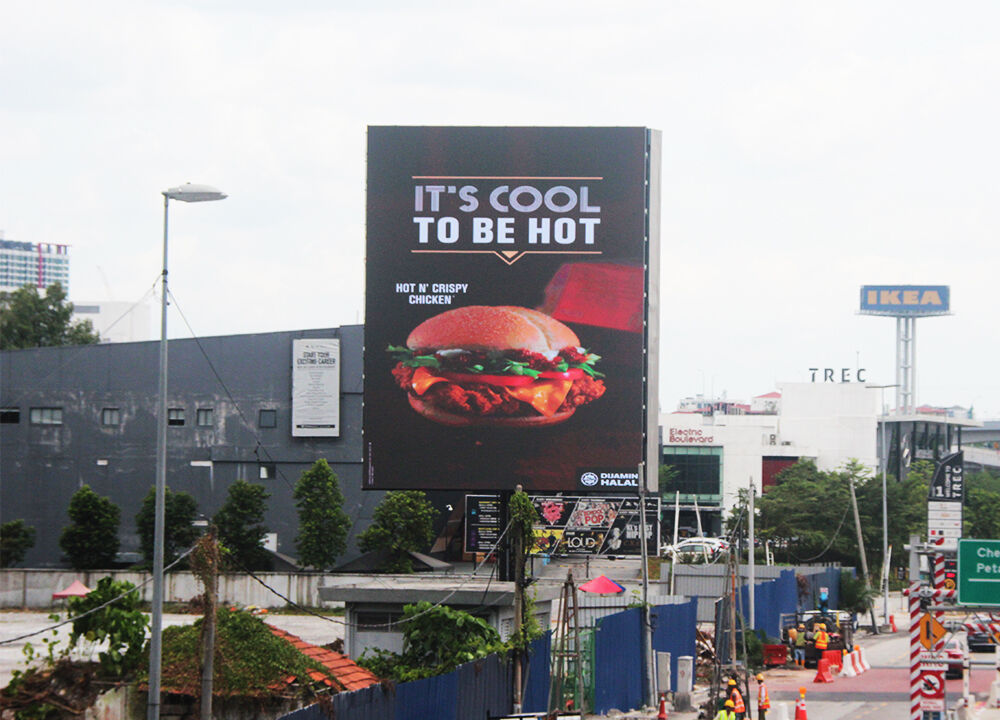

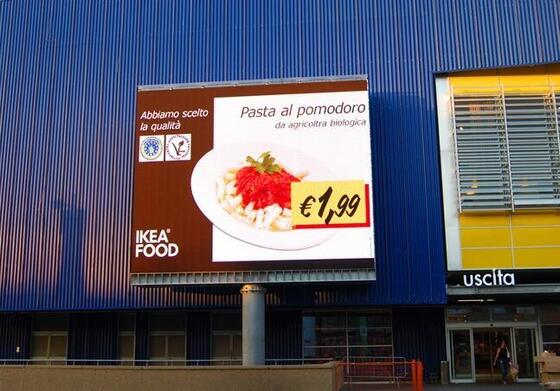

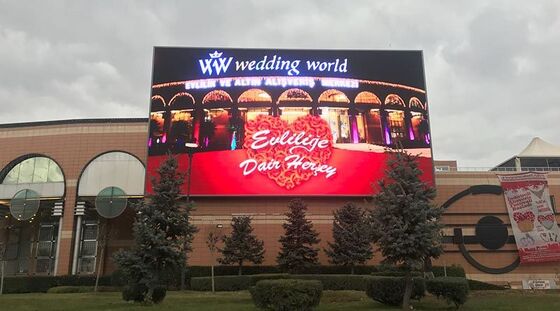

Details Images
