|Place of Origin:||China|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days after receive your payment|
|Payment Terms:||T/T or western Union|
|Supply Ability:||5000sqm per month|
|Product Name:||The Mobile Led Display||Module Size(W * H):||320mm*160mm|
|Standard:||CE/ROHS/FCC/ISO2001||Tube Chip Color:||Full Color|
|Pixel Pitch:||10mm||Module Qty:||1pcs|
mobile led screen rental,
truck mounted led screen

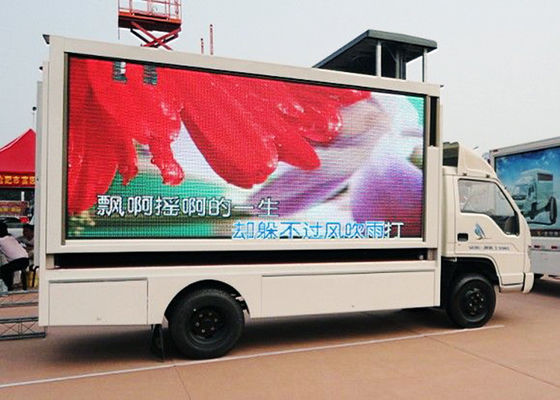

High definition HD smd waterproof mobile truck Led Display lR1G1B PH10mm
Shenzhen SCXK Electronic Co. , Ltd is a professional manufacturer of led display.established in 2005. which promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energy saving and envronmental friendliness as basic raw material.
Now SCXK offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.we consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality
|1, Item Name||technology parameter|
|2, pixel tube:||
pixel pitch:10mm; primary colors: pure red+pure green+pure blue ,
color composing: 3 in 1
Density:10000dots/sq m; SMD3535
|3 , unit box||
module size:320mm×160mm; Module resolution:32x16
cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
|4, whole screen:||
the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024
|5, operating voltage||
AC220V±10% or 110V±10% ,average consumption:500 W/sq m
max consumption:≤650 W/ sq m
|6, main parameter||
1) driving mode: 1/4 scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
Warranty: 2 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Thank you very much for viewing our website, and wish you a nice day!
Contact Person: joe
