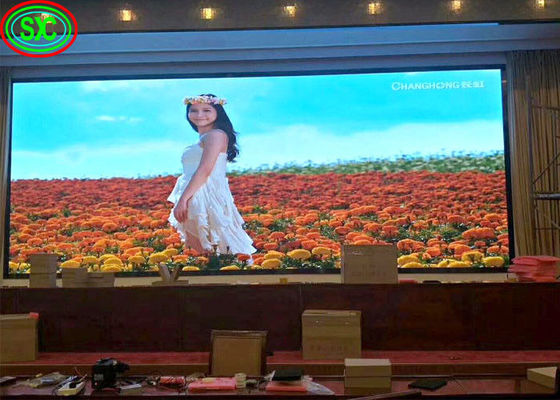

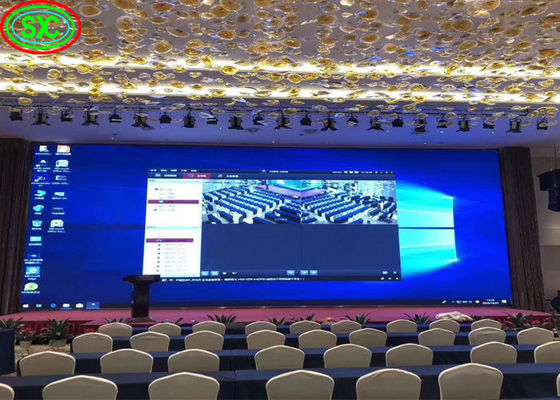

high definition p4 indoor led screen for conference hall or big church use

high definition p4 indoor led screen for conference hall or big church use

  • high definition p4 indoor led screen for conference  hall or big church use
  • high definition p4 indoor led screen for conference  hall or big church use
high definition p4 indoor led screen for conference  hall or big church use
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P4 Led Display Module Size(W * H): 256mm*128mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 4mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 64dots*32dots
High Light:

led full color screen

,

indoor led billboard

high definition p4 indoor led screen for conference hall or big church use



Welcome to Shenzhen SCXK Electronic Co.,Ltd.we are  the most professional provider of outdoor and indoor led displays with 12 years experience, we have the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.with the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.



As always do,SCXK will continue to spare no efforts in reinforcing its position as a product, technology and market. we always contribute our efforts to help our customers improve visual effect and fulfill its social responsibilities.



Product description



1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale,achieving the debugging technology for nice image.



High quality and resolution outdoor full color led led display P4smd 2121
Resolution/mm 4
Pixel configuration 1R1G1B
Pixel density/pixels/m² 62500/m²
Module resolution 64x32
Module size/mm 256x128mm
View distance 1.5-160m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 2500 cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/16 scan)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 100000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <700W
Average power:/㎡ <200W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available










The wire or wireless controll system are available .( 3g and wifi controll will be welcome)












Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.





Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.



♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
