Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P10 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T or western Union |
Supply Ability: | 5000sqm per month |
Product Name: | P10 Hanging Led Display | Module Size(W * H): | 320mm*160mm |
---|---|---|---|
Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
Pixel Pitch: | 10mm | Module Qty: | 1pcs |
Type: | Free Standing | Resolution(W*H): | 32dots*16dots |
Usage: | Outdoor | ||
High Light: | led moving sign,full color led screen |
LED Modules
LED Module is the smallest unit of LED display system, which is composed of LED cabinet. With LED cabinets, we build the LED Display Screen of different sizes basing on the requirement from customers
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
The steer consturction is very stable for led display,and you can purchase from your local market .
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
About our led displays
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
Methods for Quality Assurance
a. Aging
1. 100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range

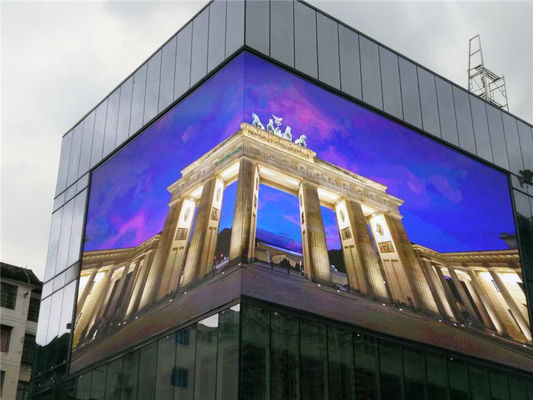

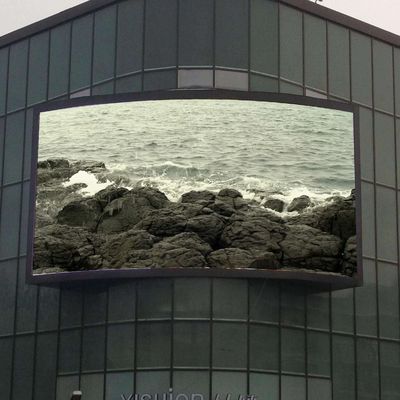

Outdoor P10 smd full color Hanging LED Large Display for large Plaza
Resolution/mm | 10 | |||||
Pixel configuration | 1R1G1B | |||||
Pixel density/pixels/m² | 10000/m² | |||||
Module resolution | 32x16 | |||||
Module size/mm | 360x160mm | |||||
View distance | 4-300m | |||||
Single point brightness adjust | Can be added | |||||
Single point color adjust | Can be added | |||||
White balance brightness | 5000 cd/㎡ | |||||
Color temperature | 6500K-9500K | |||||
Horizontal view angle | 120(degrees) | |||||
Vertical view angle | 60(degrees) | |||||
Signal Process bit | 10 or 16bit | |||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||
Driving mode | Constant driving current | |||||
Scanning mode | (1/4scan) | |||||
Frame rate | 60Hz | |||||
Refresh frequency | >3000Hz | |||||
Control mode | Computer synchronous | |||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||
Out of control point | <1/10000 | |||||
Working hours | ≥72hours | |||||
Mean Time Between Failure | >10000hours | |||||
Life time | 100000hours | |||||
Life-all-white(brightness halving) | 100000hours | |||||
Environment temperature range | Operating temperature range: -20-45℃ | |||||
Maximum power:/㎡ | <700W | |||||
Average power:/㎡ | <200W | |||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||
Luminous point width between centres | Deviation<3% | |||||
Brightness uniformity | <10% | |||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||
Contrast | (1000:1) | |||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||
Humidity(working) | working:10-95% | |||||
Humidity(storing) | storing:10-95% |
Product Name | acrylic cosmetics advertising display led sign board |
Service | Your inquiry will be reply within 12 hours. |
Brand | SCX |
Material | Stainless, aluminum ,steel, epoxide resin,PE |
Item |
Indoor P2P2.5,P3,P3.91P4,P5,P6,P7.62 Outdoor P4 ,P5 P6,P8,P10,P12,P16,P20 |
Feature | High brightness, good resolution, working stable , easy installation. |
Grade | IP65 |
Driving mode | 1/4scanning |
Stock | Regular items of led display have stocks. |
Color temperature | 6500-9500K |
Packing Method | Flight case &Plywood case or Customized Packing |
Power supply request | AC85-264V(50HZ-60HZ) |
Delivery Time | Within 7-30 days according to your required size & quantity. |
Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi, and etc. |
we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-10 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Any question,plz contact me directly : Joe-young@scxled.cn or whatsapp +86 13922107240
Contact Person: joe
