Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P8 |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm per month |
| Pixels: | 8mm | Led Type: | SMD 3535 |
|---|---|---|---|
| Waterproof: | IP65 | Cabinet: | Iron Or Aluminum For Options |
| Frame Frequency: | >=60HZ | Average NO Failure: | >=1000hours |
| Refresh Rate: | >=180HZ | The Optimum: | 600w/m2 |
| Highlight: | led information display,full color led screen |
||
1) High cost performance.

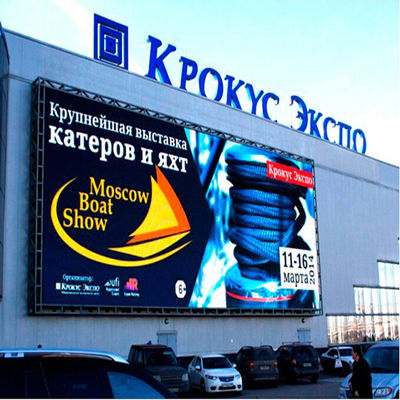

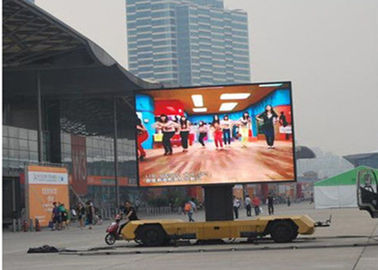

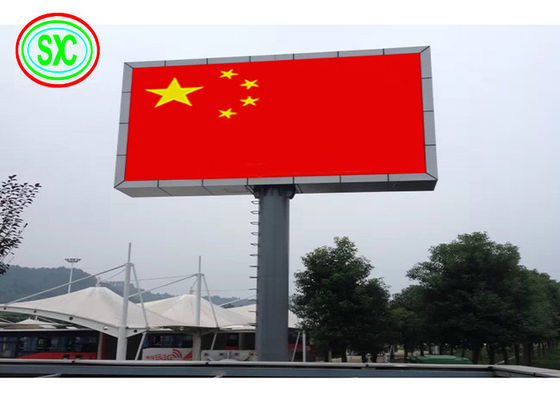

Hanging LED Display Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies

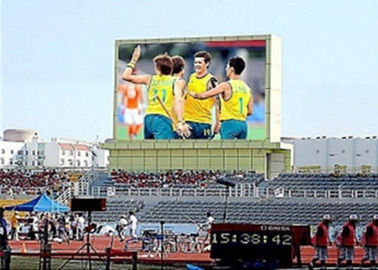

--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
Hanging LED Display Feature:
1) High intensity and can be adjusted, so can meet the request of the customers according the environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect LED Curtain Screen.
4) Big viewing angle to 160 degree at horizontal line, 140 degree at vertical line.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
| outdoor SMD P8 | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/m² | ||||
| Module resolution | 40x20 | ||||
| Module size/mm | 320x160 | ||||
| View distance | 8-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >5500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
Buying Guides:
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service:
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Certificate:
About our factory
SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.
